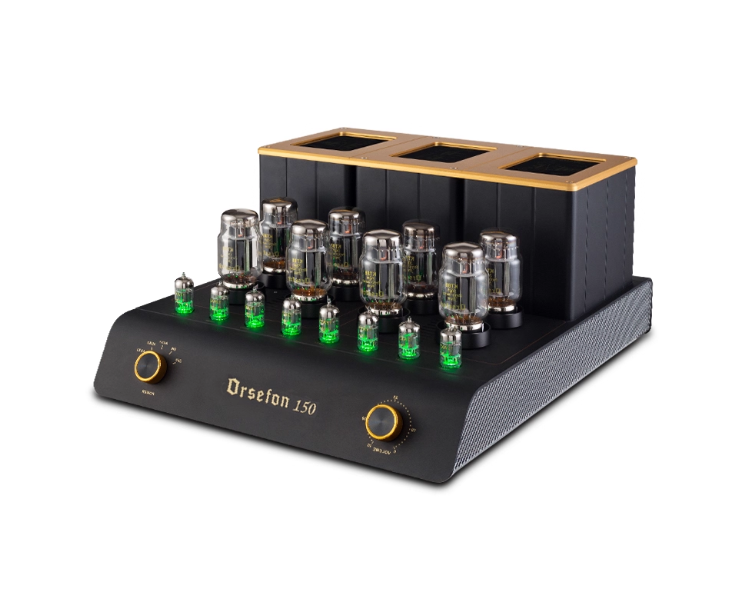

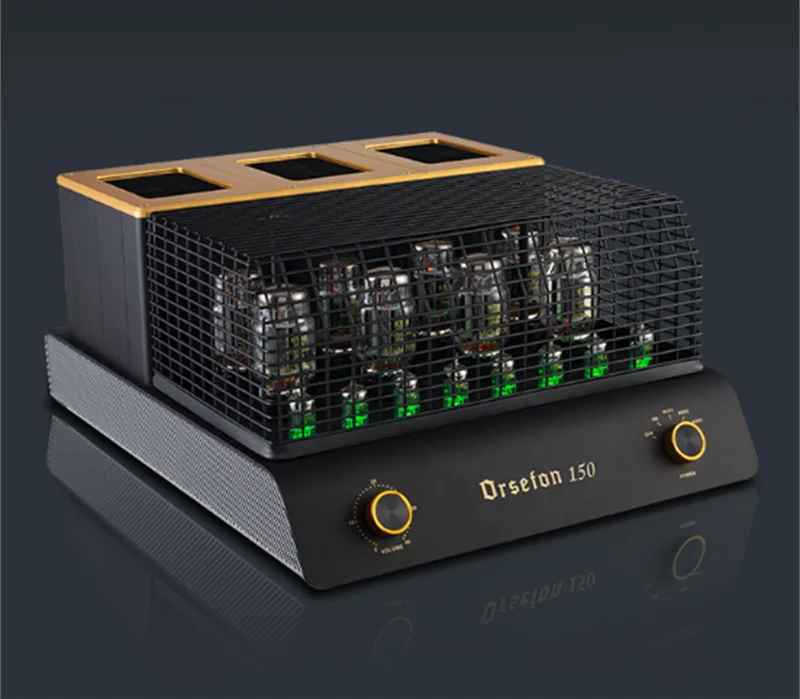

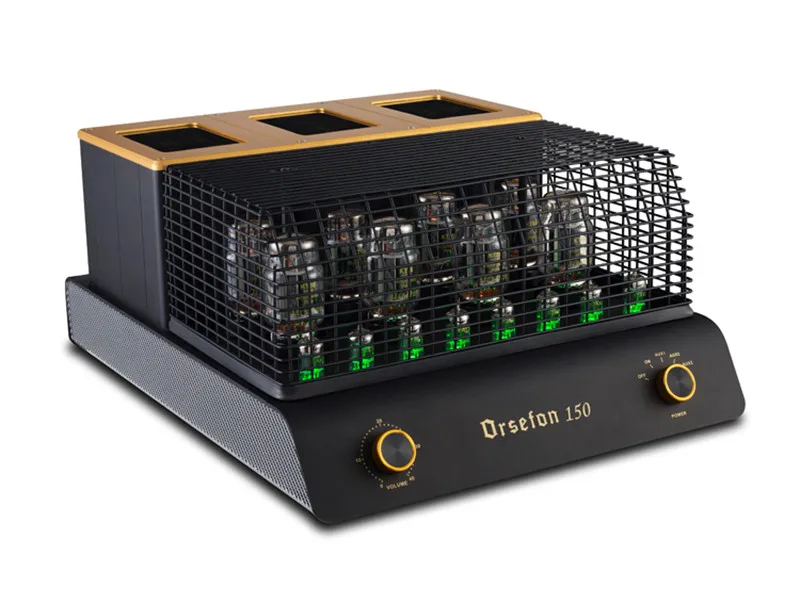

Name: MC-150
Output anti group :2Ω/4Ω/8Ω
Output power: Stereo mono 150W*2
Bile duct model: Selected KT88 bile x8/ Selected 12AX7 bile x4/ Selected 12AT7 bile X4
Frequency response :18Hz-25kHz
Harmonic distortion :0.2%
SNR: 96dB
Input sensitivity :480mV
Fuse specification: Quick solution 250V8A/ size is 6×32
Power supply voltage :220V110V can be manually adjusted

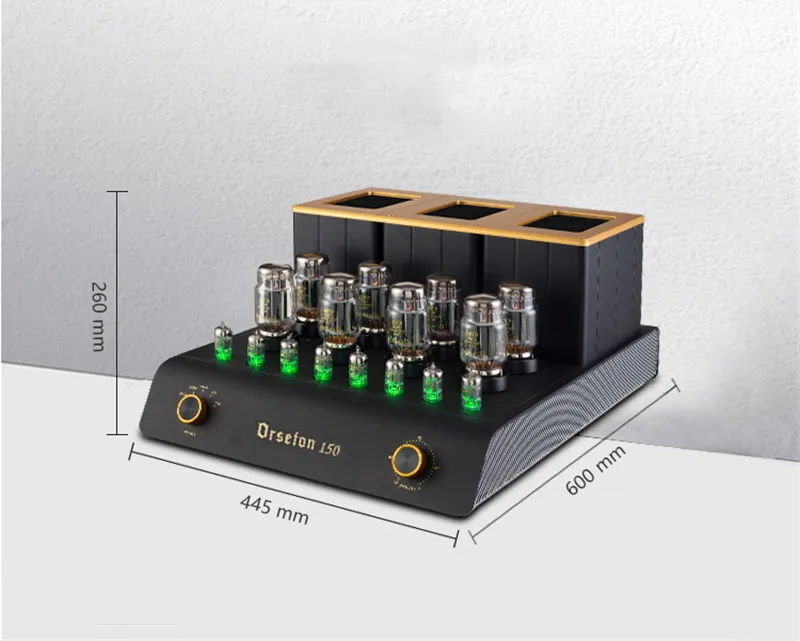

Machine size :600*445*260mm(length * width * height)
Net weight :45KG
Use: It can be used to make power amplifier or RCA audio cable to make combined power amplifier
XLR balanced input can only be used for power amplifier. pre amplifier must be added
High-end custom reengraving original bile duct 1:1 reengraving original bile duct structure

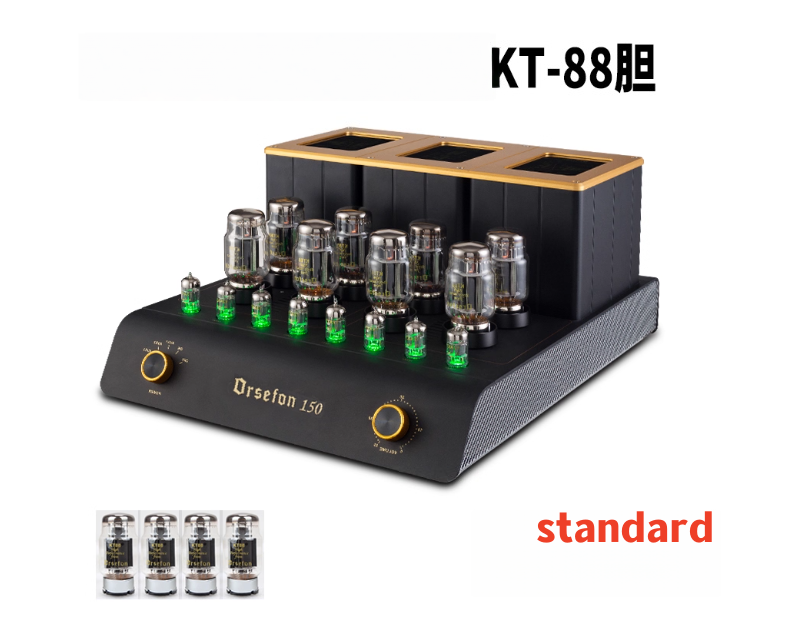

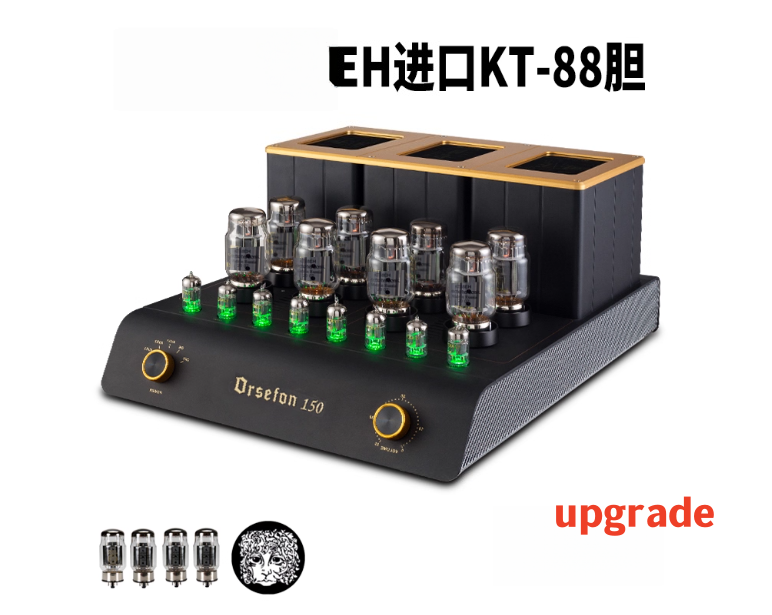

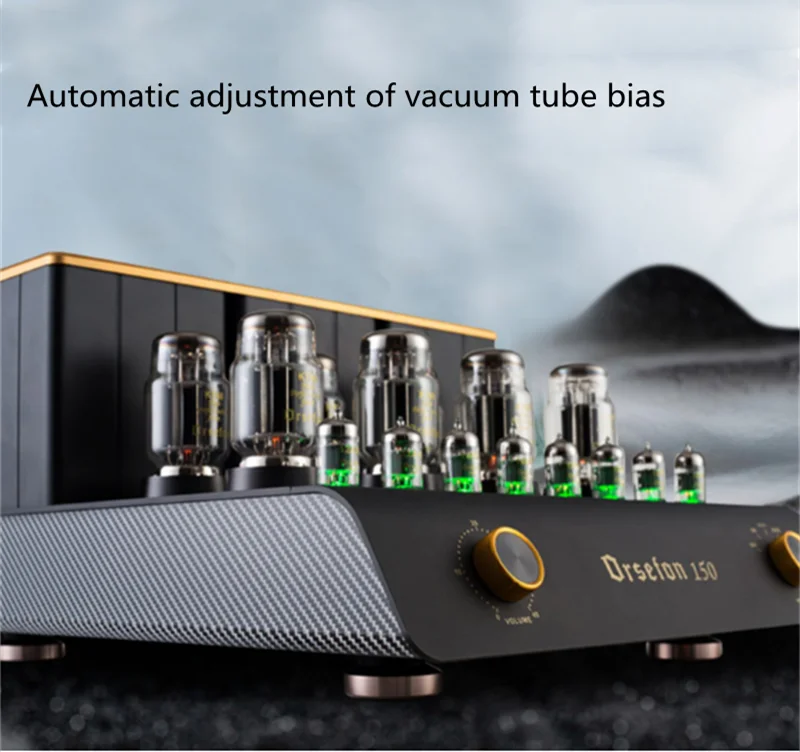

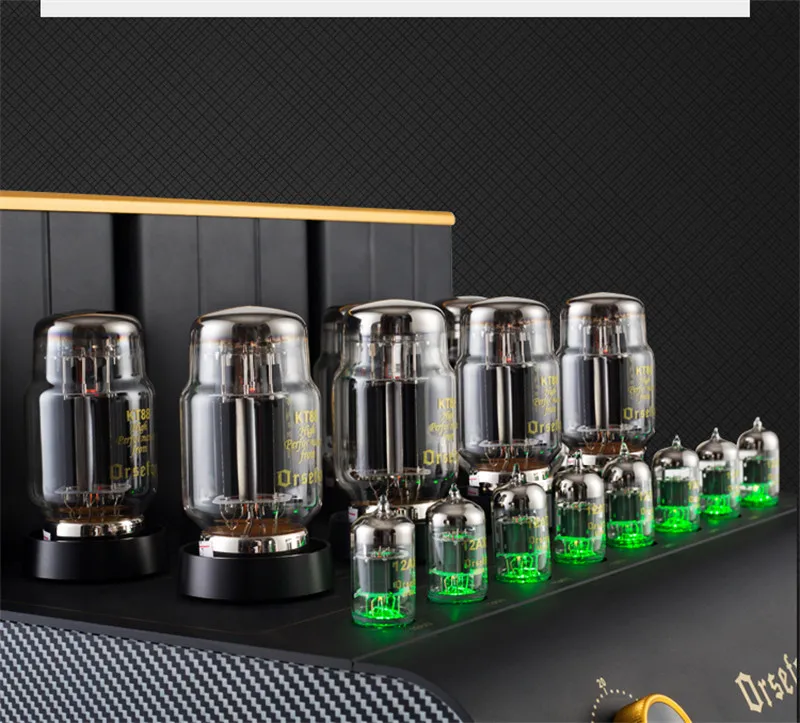

KT88 vacuum tube X8
As a power amplifier, 150W power on one side is easily enough to propel the loudspeaker
12AX7A vacuum tube x4
The current resistance of high strength geometric structure with new inert gas filling technology is much higher than that of the same series
12AT7A vacuum tube x4
The sound is delicate and soft, the charm is good, the low frequency is solid, the medium frequency is full, the background is very quiet and easy to hear

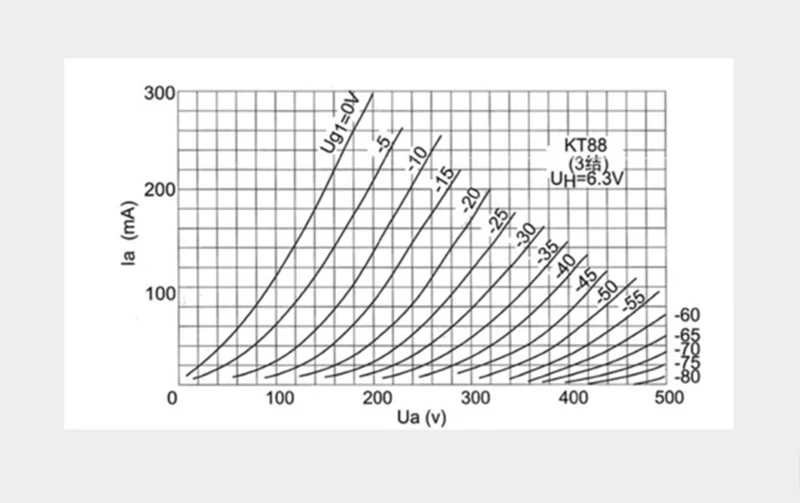

Basic Data:
Filament voltage (Uo) : 6.3V
Filament current (1) : 1.6A
Anode voltage (U.) : 250v
Anode current (l) : 145mA
First poplar voltage (UR) : 14V
The second poplar voltage (U2z) : 250V
Second poplar current (lzz) : 20mA/V
Transconductance (S):11mA/V
Limit data:
Maximum anode voltage (U amax):600V
Maximum voltage of the second Ou pole (Ug2max):50oV
Maximum cathode current (Ikmax):230mA
Maximum anode dissipated power (Pomax):42W
Maximum power dissipation of the second cup pole (Pg2max):8W
Maximum first ou pole resistance (Rg1max)
Self-biased voltage 270kQ, output power below 35W
470kQ fixed bias 100kQ, output power 35W
220kQ below
Internal resistance (R)12KQ

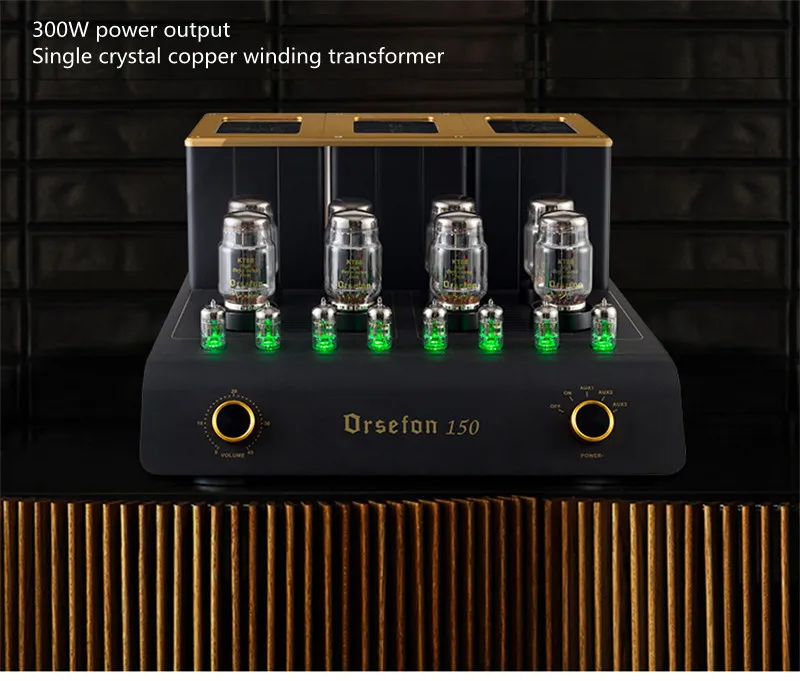

Mono 150W high power output
The 150 has a single 150W * 2, with a total power of 300W, which is equivalent to the 1000W super power output of the stone machine. Whether it is a 15 inch or 18 inch large caliber speaker, it can be pushed easily. Besides, the gall machine is not as
loud as the stone machine, but it is just and soft, and will not drag mud and water, giving you an extreme sense of on-site experience.

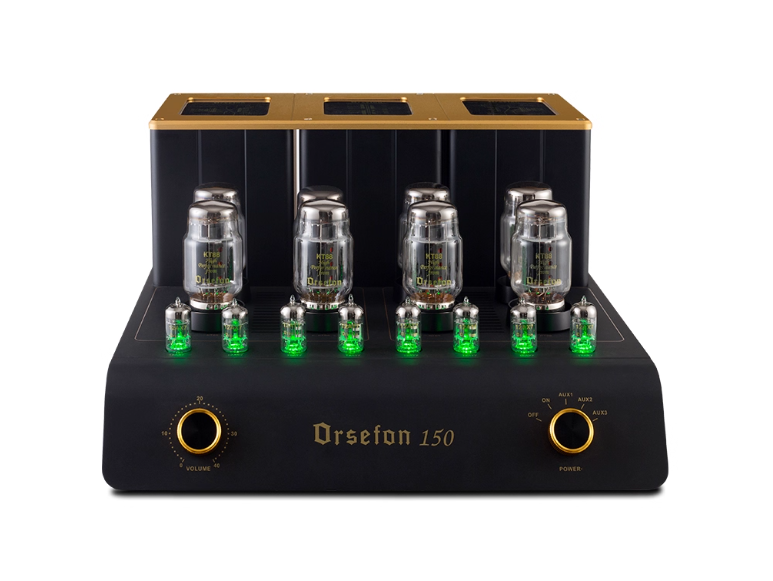

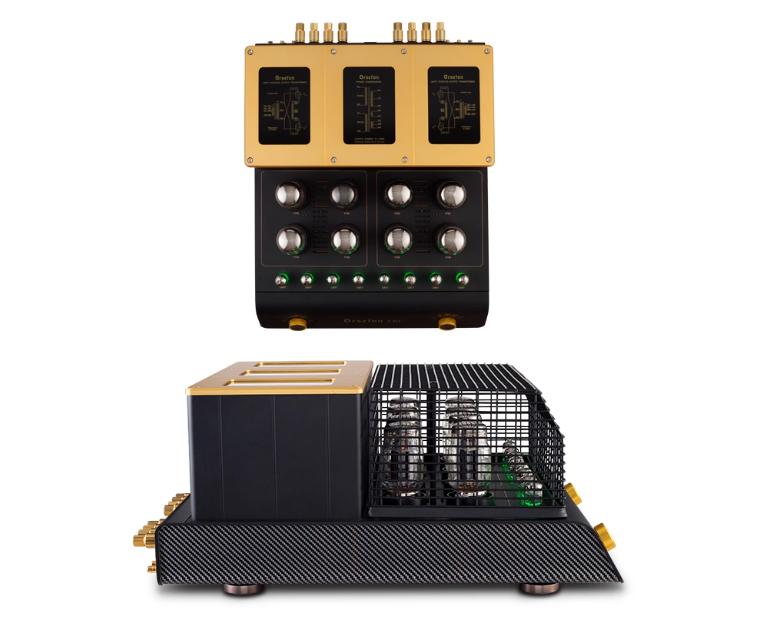

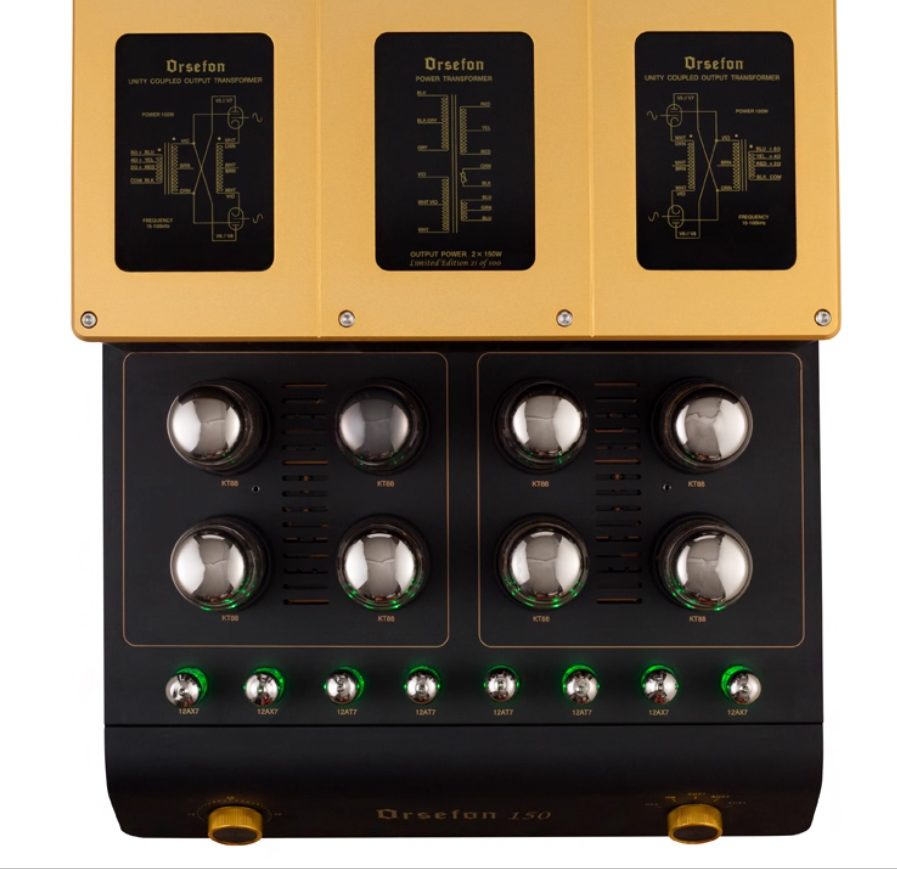

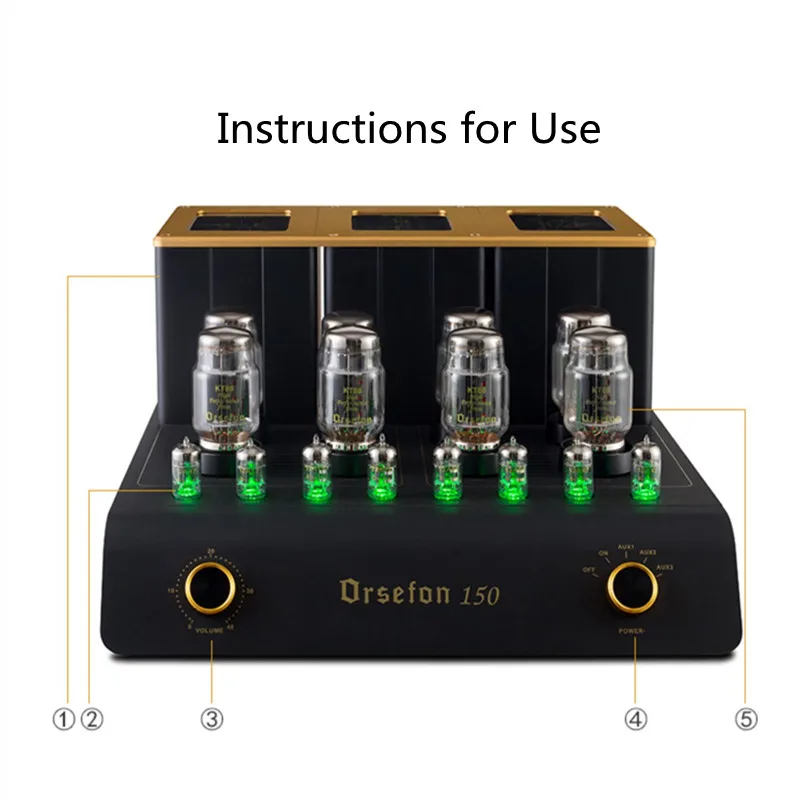

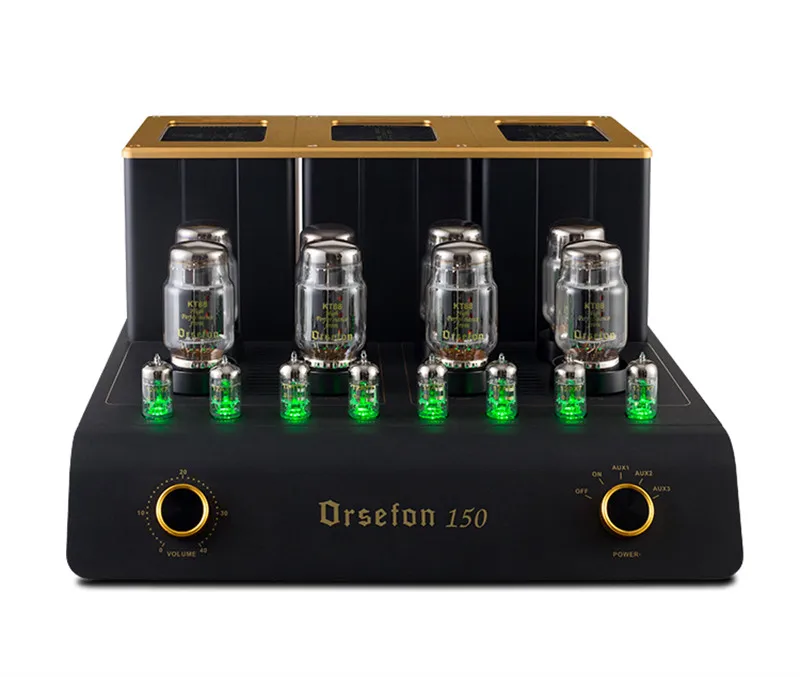

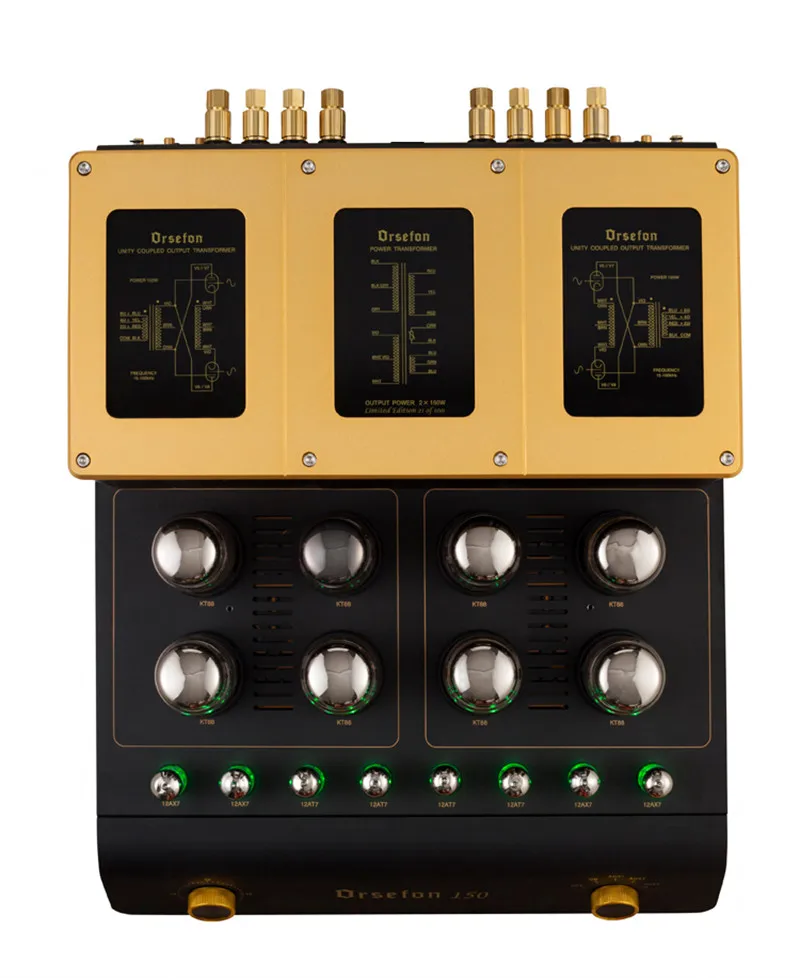

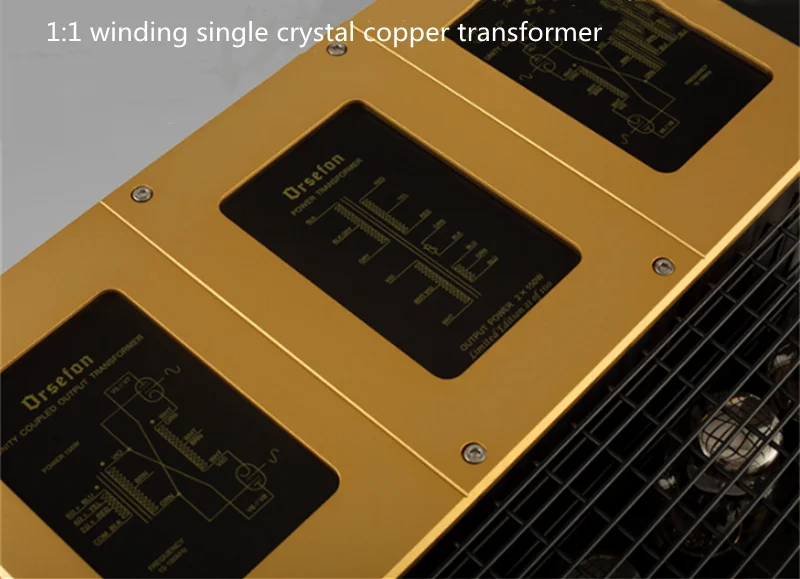

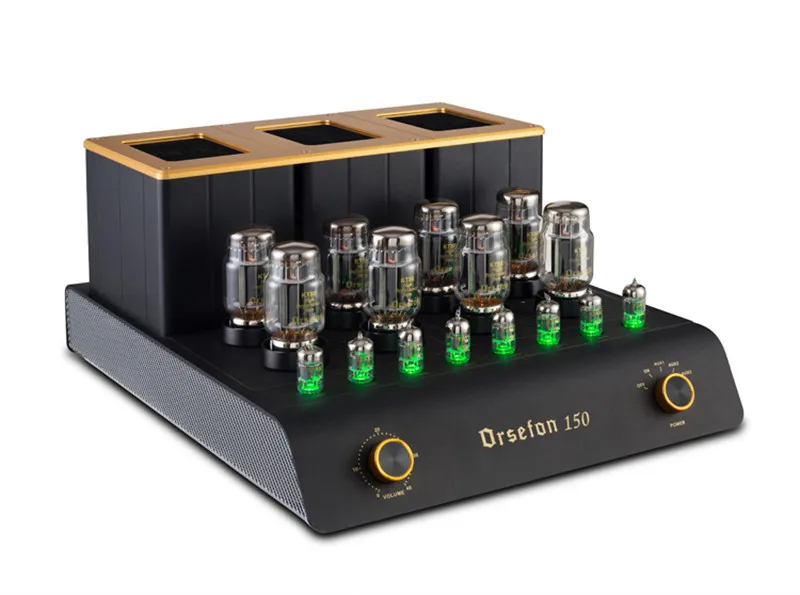

1: A total of 3 transformers (1 power supply voltage and 2 output transformers)
2:12AX7A vacuum tube ×4/12AT7A vacuum tube ×4

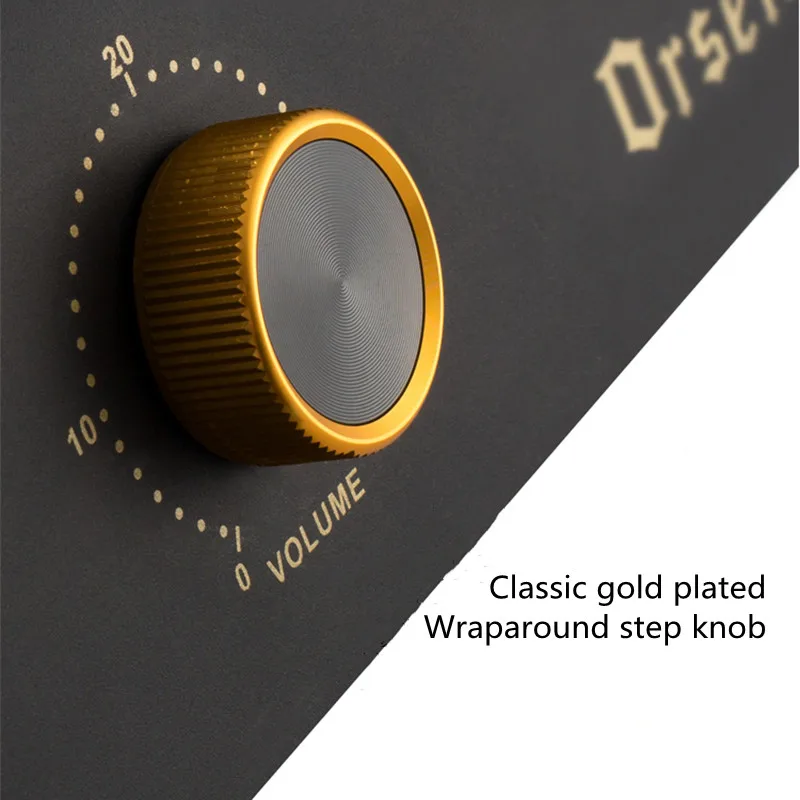

3: volume adjustment
4: Switch power supply and audio source input
5: KT88 vacuum tube ×8

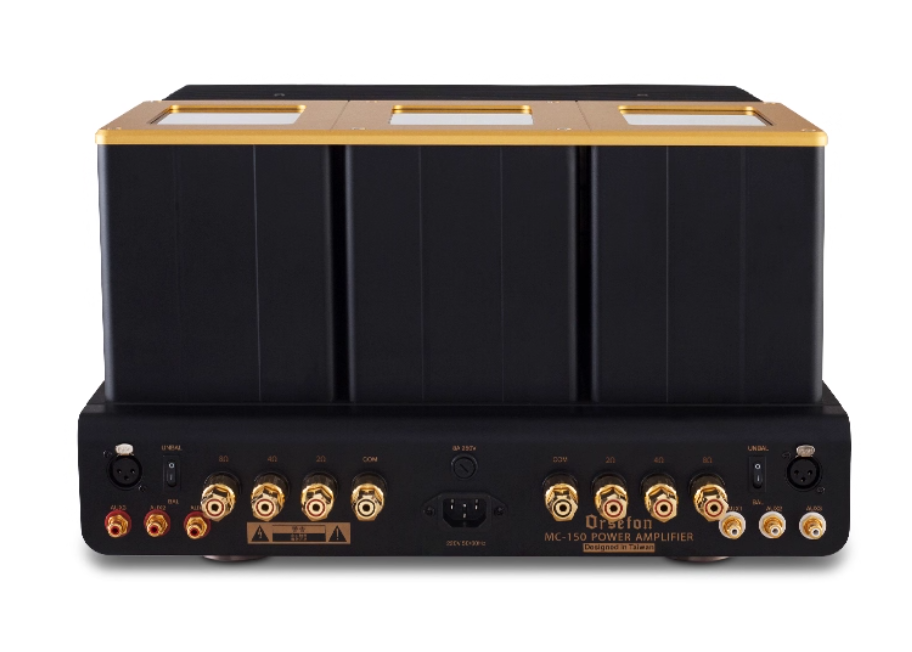

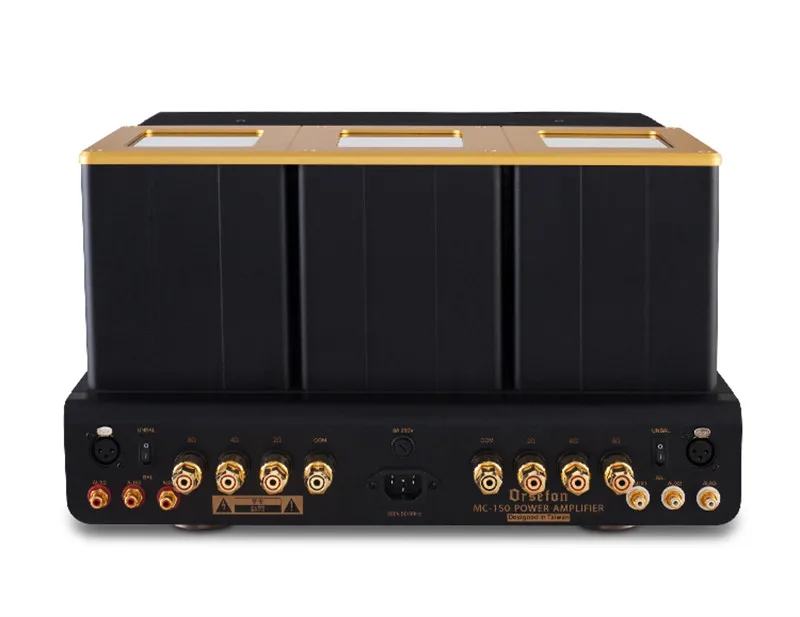

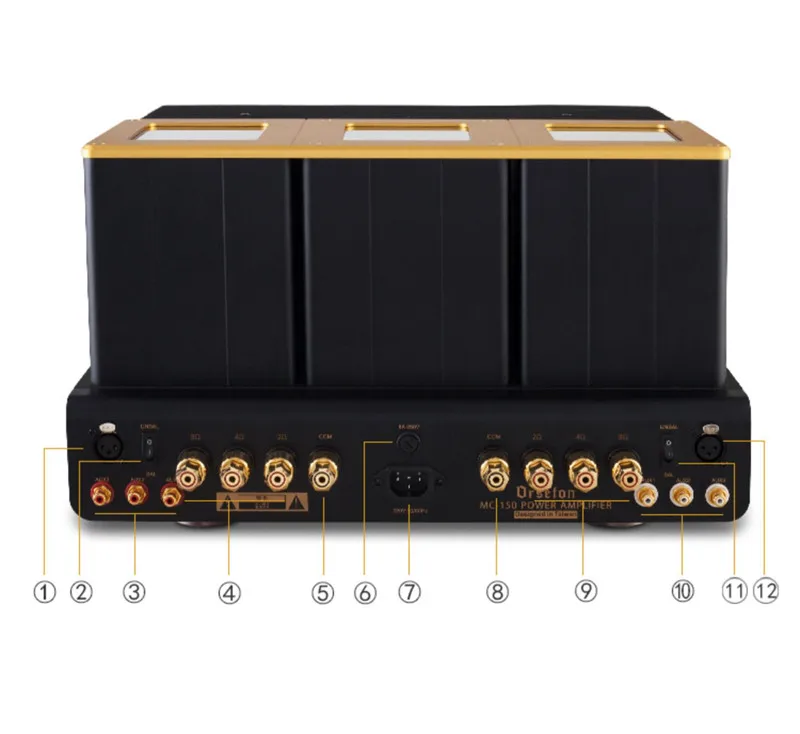

1: Right sound XLR balance signal input (required pre amplifier drive)
2: right channel balanced input/Non-balanced (RCA) input selection
3: right channel analog signal input

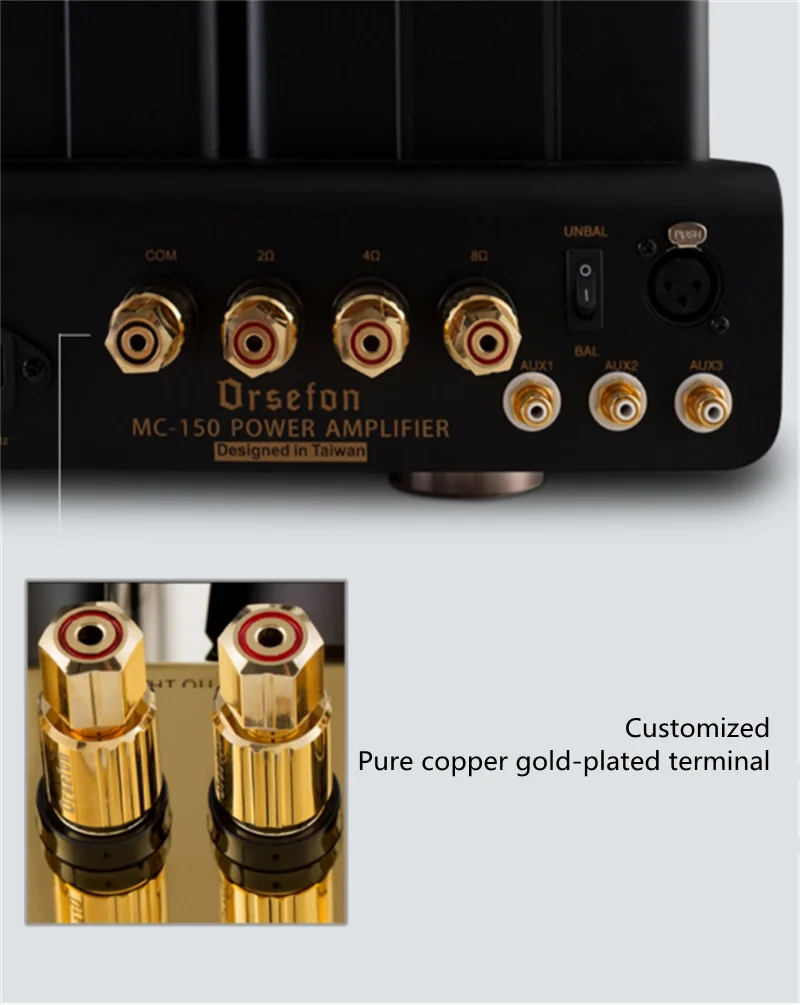

4: Right positive 2Ω/ 4ω /8Ω(red)
5: Negative extreme of right channel (black)
6: Fuse 250V8A
7: total power input
8: Left channel negative extreme (black)
9: Positive left 2Ω/4Ω/8Ω(red)
10: left channel analog signal input
10: left channel balanced input/Non-balanced (RCA) input selection
12: Left channel XLR balanced signal input (required pre amplifier drive)
