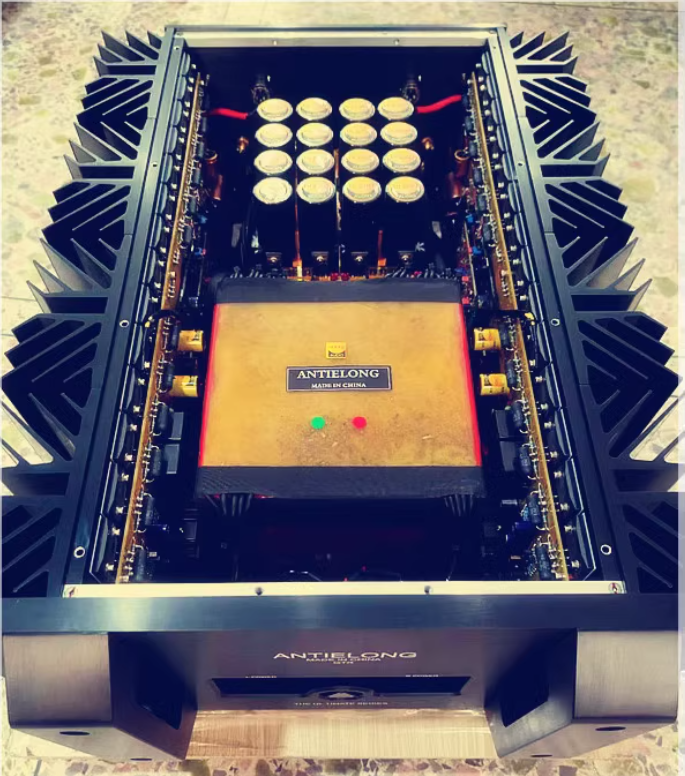

ANTIELONG Flagship GTR MKII Fully Balanced Rear Stage Amplifier Reference Swiss GOLDMAND TELOS 2500 Guifeng Rear Stage Circuit

ANTIELONG (Flagship Rear Level) - GTR MKII Upgraded Edition, with circuit reference to the Swiss GOLDMUND TELOS 2500 Split Rear Level and the Danish Guifeng GRYPHON ANTILEN EVO Stereo Rear Level.

Sound: This is a rear stage with delicate and transparent sound, and good texture. High thrust and strong control.

Recommended pairing: Dana Confidence series speakers, PMC BB5SE，ATC SCM100， SCM150。 Difficult to push speakers such as British Jinchi, Kama speakers, and British Baohua 801D4. The secondary line comes from the Swiss Gaowen 2500 secondary line, plus the Danish Guifeng'an Tielong line. Combining the advantages of the two machine lines, we will work together strongly.


Machine parameters:
1: When outputting music power (Max. RMS Power) XLR signal input: (Class A and B) 800W * 2 @ 8ohms, 1600W * 2 @ 4ohms.
2: When outputting music power (Max. RMS Power) RCA signal input: (Class A and B) 400W * 2 @ 8ohms, 800W * 2 @ 4ohms.
3: Power supply range: 115V/230V 50-60HZ
4: Freq. Response 10-50kHz (+/-0.1dB)
5: Total Harmonic Distortion (THD)<0.001%
6: Input Impedance 33K ohms
7: Signal to Noise Ratio (SNR)>RCA: 110dB>XLR: 115dB
8: The machine weighs approximately 85KG
9: Machine size (Size) 480 W 290 H 720 D, including handle+horn post/mm
10: Power transformer total 4000W (2 2000W toroidal transformers)
11: Line Gain+25dB/+31dB

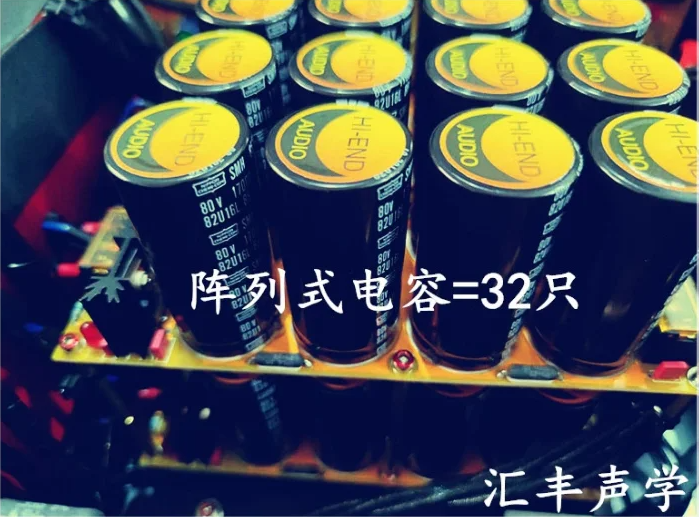

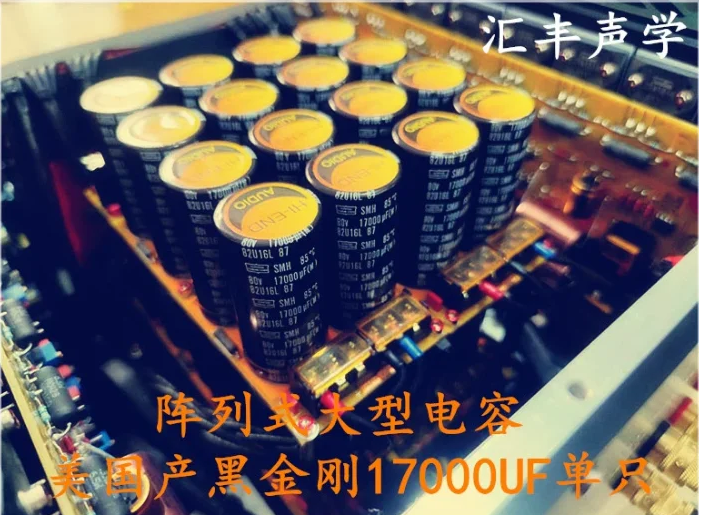

12: Filtering pond 544000 UF
13: Damping coefficient: 1500
14: Power amplifier board with 56 triple Ken high-power transistors 2SA1216 2SC2922
15: Static standby: 460W/S, dynamic power consumption above 600W, power consumption reference value 4000W
16: Each tube has a static current of 150MA, and out of 56 large tubes, 8 are responsible for driving them. The large tube drives the large tube in a 2-to-12 one channel mode. The total static current is 7.2A.
17: Output current: 102A
18: Temperature ℃: The reference temperature for the radiator is around 40-50 degrees Celsius (due to different usage environments)
19: The upgraded GTR MkII adopts ultra-high voltage drive!!
20: The upgraded GTR MKII transformer adopts a giant aluminum alloy cowhide shield and imported resin full sealing to eliminate interference and electromagnetic induction.
