ANTILENG fully balanced A-class HIFi amplifier, replica of Swiss Gaowen 29M amplifier 320W*2 8Ω ， 640W*2 8Ω 。
Machine parameters:
1: Output music power (Max. RMS Power): (Class A and B) 320W * 2 @ 8 Ω, 640W * 2 @ 4 Ω.

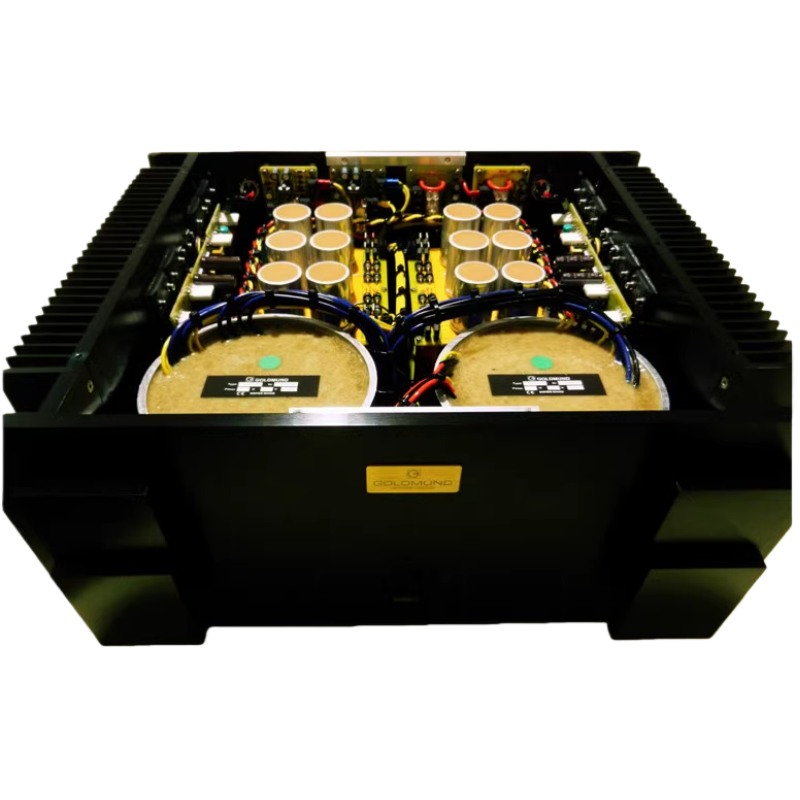

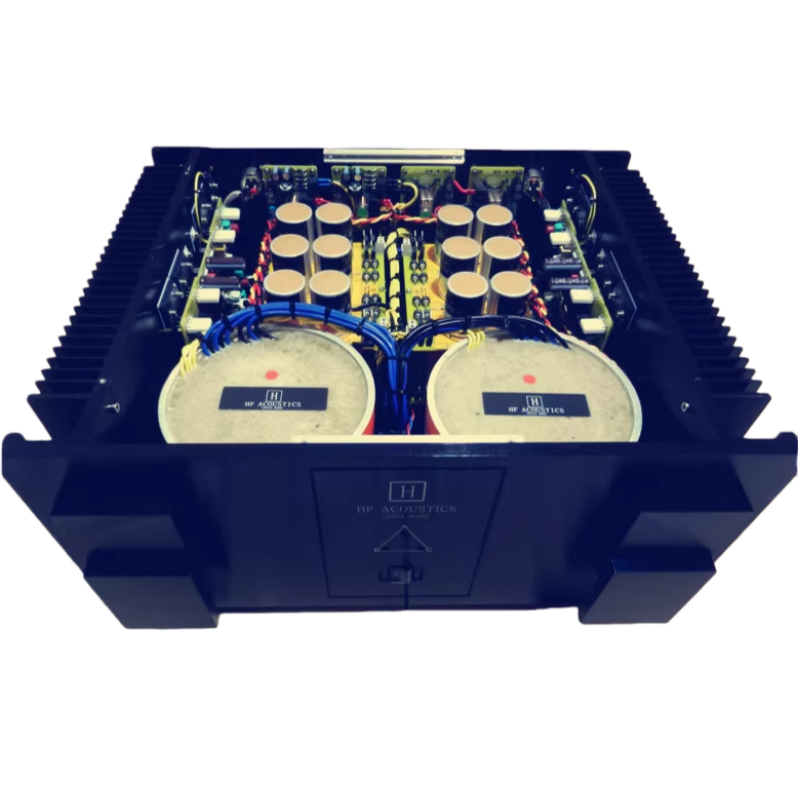

2: This machine adopts a fully balanced design: 4 sets of amplifier boards and 4 sets of protective boards.
3: Power supply range: 115V, 230V 50-60HZ
4: Freq. Response 10-20kHz (+/-0.05dB) 10-100kHz (+/-0.5dB)
5: Total harmonic distortion: (THD)<0.028% (65WRMS 8 Ω)
6: Input Impedance: 51K ohms
7: Signal to Noise Ratio: (SNR)>RCA: 100dB>XLR: 105dB
8: Machine weight approximately: 42KG
9: Machine size: (Size) 480 W 224 H 450 D, including handle+horn post/mm
10: Transformer power: (Power transformer) total 2000W (4 500W ring OFC resin encapsulated transformers)
11: Line gain:+25dB/+31dB
12: Filtering pond: 163200UF (24 Nikon capacitors)
13: Rectification diode: 32 Philips wheel tubes+32 NXP=64
14: Power amplifier board: 16 Sanken high-power transistors 2SA1216 2SC2922
$2,399.00
