ANTILENG Giant MKII Fully Balanced Rear Stage Amplifier Reproduces Swiss High Wen 1000 Rear Stage Circuit

ANTILENG Giant MKII Fully Balanced Rear Stage Amplifier Reproduces Swiss High Wen 1000 Rear Stage Circuit

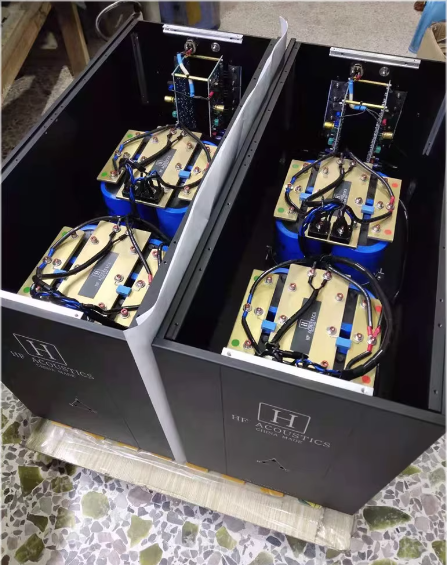

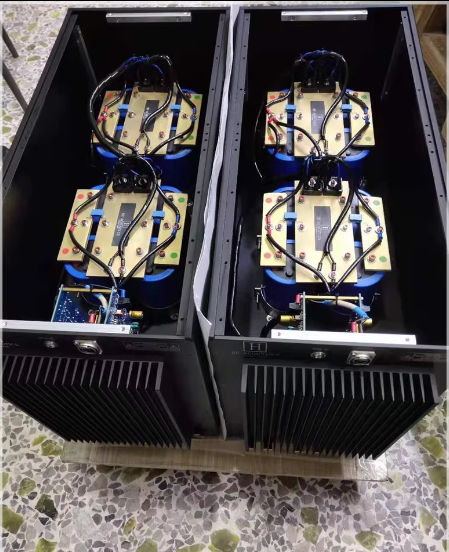

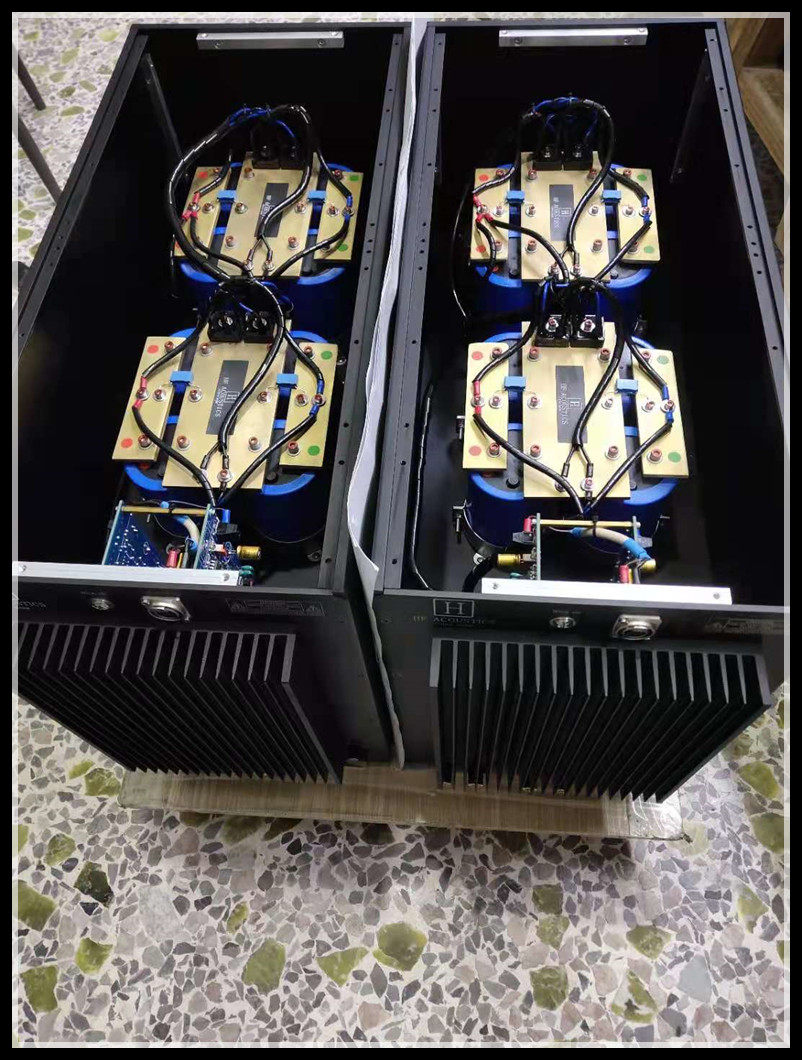

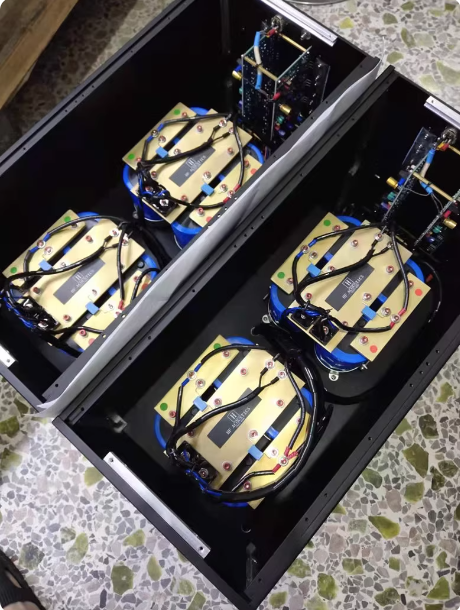

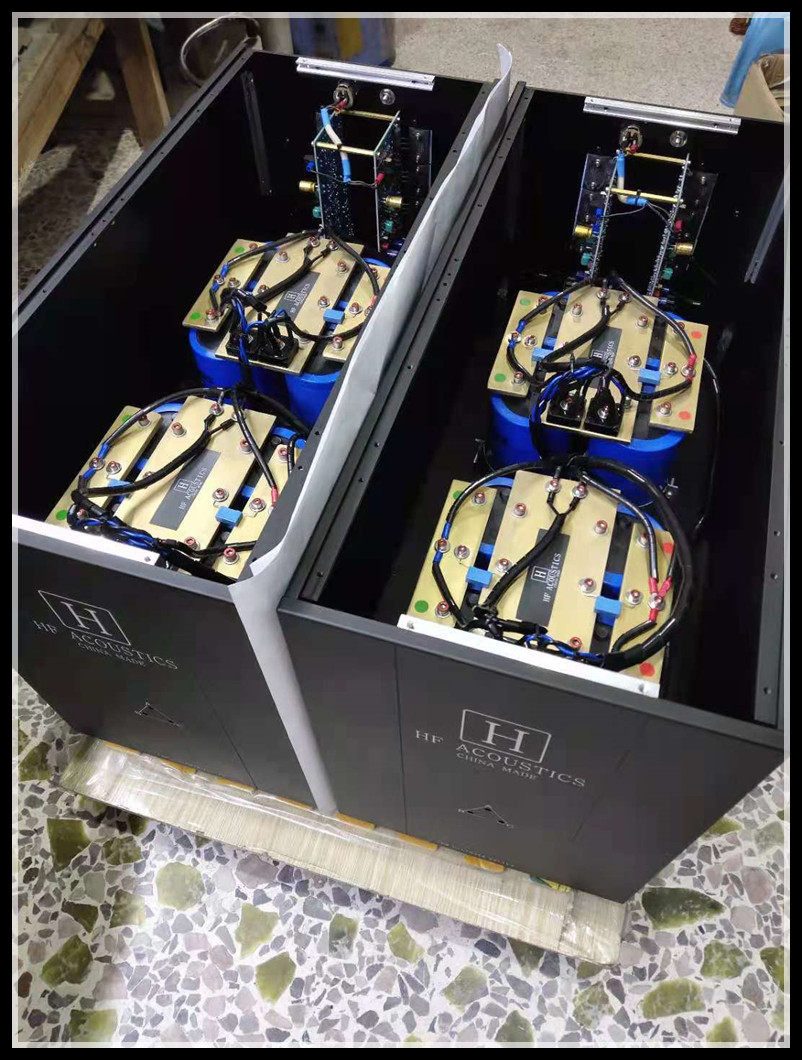

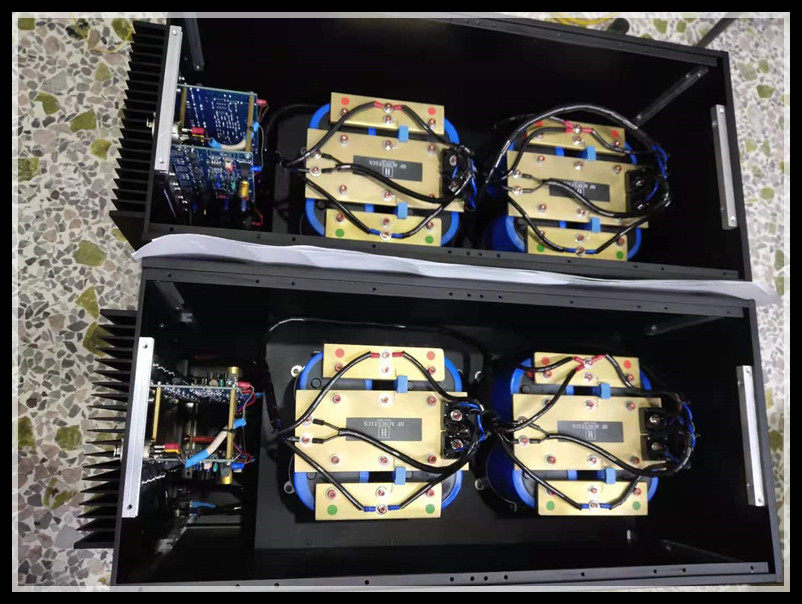

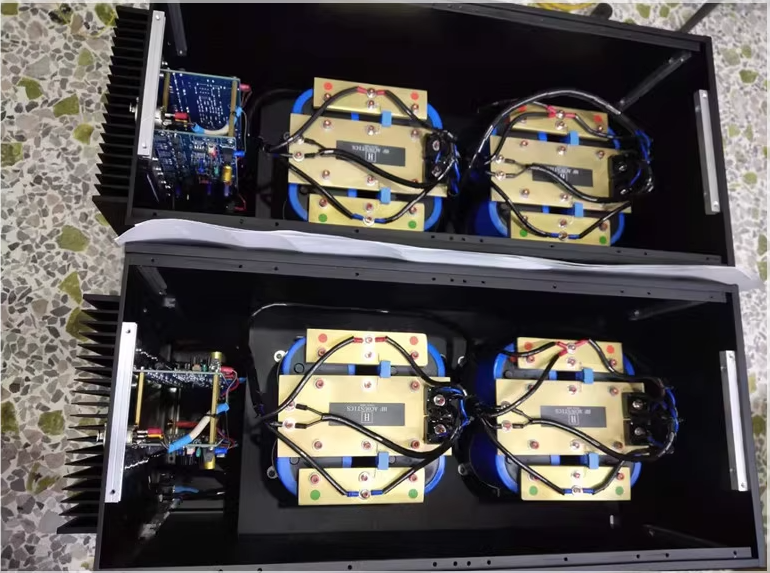

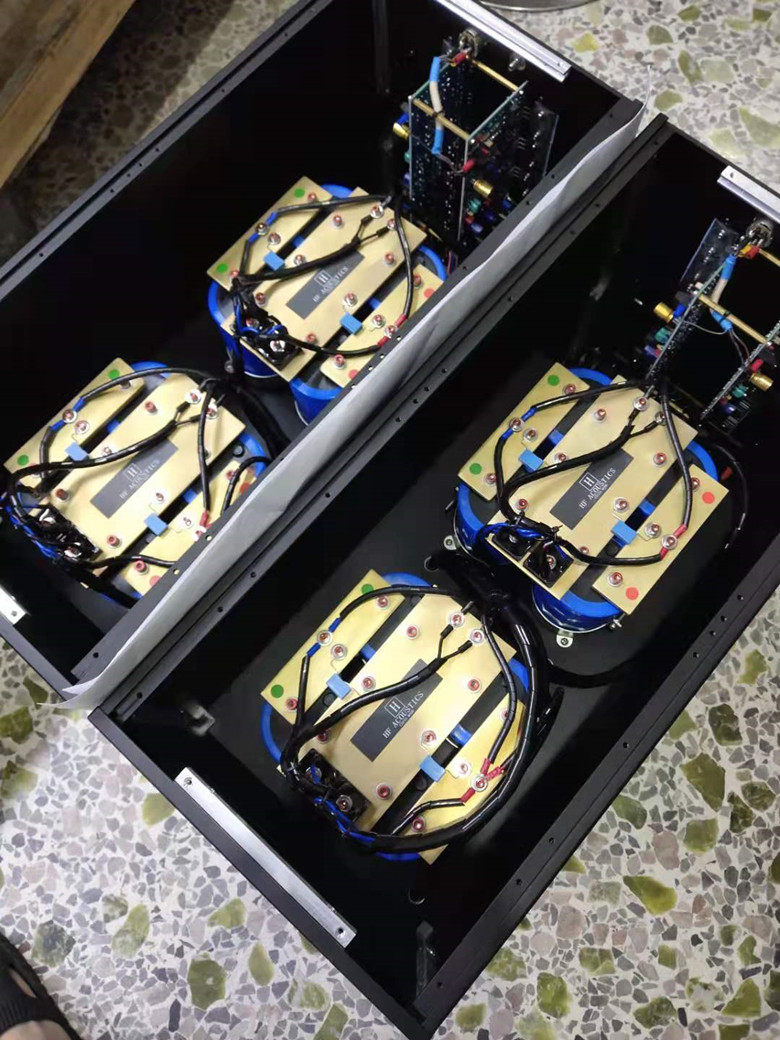

The rear stage circuit of the Giant MKII comes from the Swiss Gaowen 1000 rear stage. The sound of the Giant rear stage is transparent, delicate, and sweet, with excellent driving force control. The power system reserve of the rear stage is very large. One channel uses 8 Philips blue hexagonal 33000UF 100V canned capacitors imported from the Netherlands, with high current and strong control power, which can easily drive low sensitivity speakers such as ATC PMC Dana. The capacitors for each channel are connected in parallel using large pure copper plates, which have low internal resistance and can withstand high currents. Each channel is supplied with a 1500W power toroidal transformer. The feature of this machine is the amplifier board, and the feedback circuit for the most critical position of the sound is equipped with British Fast Clear and German Mondorf OIL red label capacitors, all for the sake of good sound!


Machine parameters:
1: When outputting music power (Max. RMS Power) XLR signal input: (Class A and B) 560W @ 8ohms 1120W @ 4ohms.
2: This machine adopts a fully balanced design
3: Power input range: 115V/220V 50-60HZ
4: Freq. Response 10-20kHz (+/-0.05dB) 10-100kHz (+/-0.5dB)
5: Total Harmonic Distortion (THD)<0.005% (65WRMS 8 Ω)
6: Input Impedance 33K ohms
7: Signal to Noise Ratio (SNR)>RCA: 100dB>XLR: 105dB
8: The weight of the machine is approximately 70KG per pair
9: Machine size (Size) 275 W 430 H 650 D/mm per unit
10: Power Transformer 1500W
11: Line Gain+25dB/+31dB
12: Filtering pond 264000UF (composed of 8 Philips blue hexagonal 33000UF100V capacitors)
13: Transformer (1 1500W ring transformer/1 per channel)
14: Power amplifier board - Triple Channel Tube King 1216 2922 (6 pairs per channel)
15: Feedback capacitor for key areas of sound: using British Fast Clear non-polar capacitors (both of which are valuable)+German Mondorf OIL oil immersed non-polar capacitors for sound modulation.
