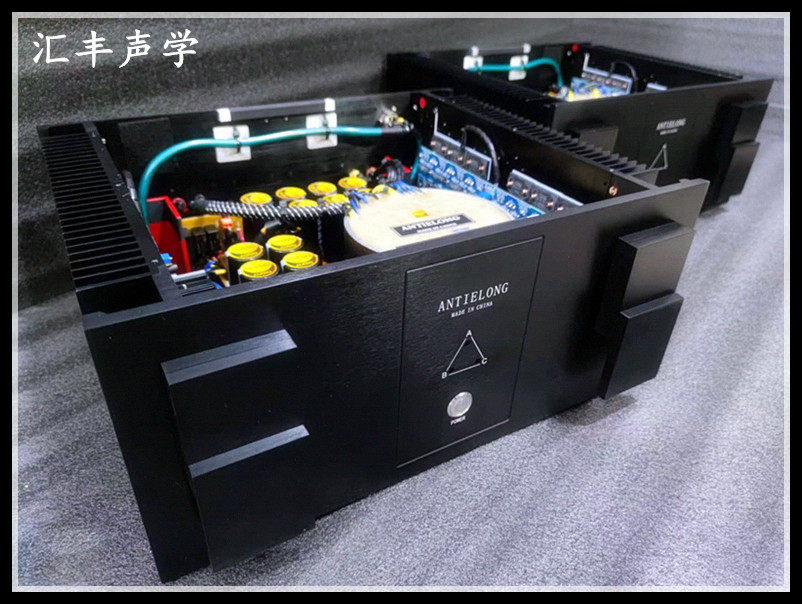

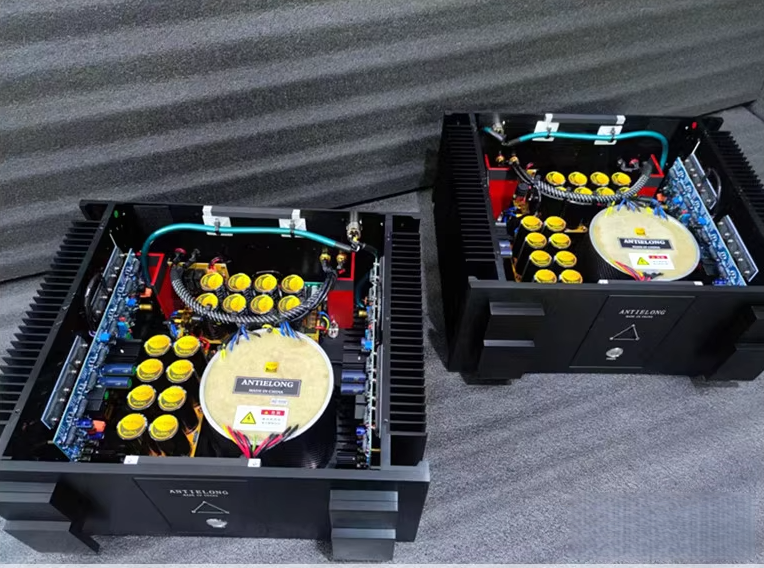

ANTILENG Poisonous Charm Single Channel Fully Balanced Class A Rear Stage Amplifier Reproduction of Swiss High Wen 29M Rear Stage Circuit

Machine parameters: (1 channel quantity) One channel parameters

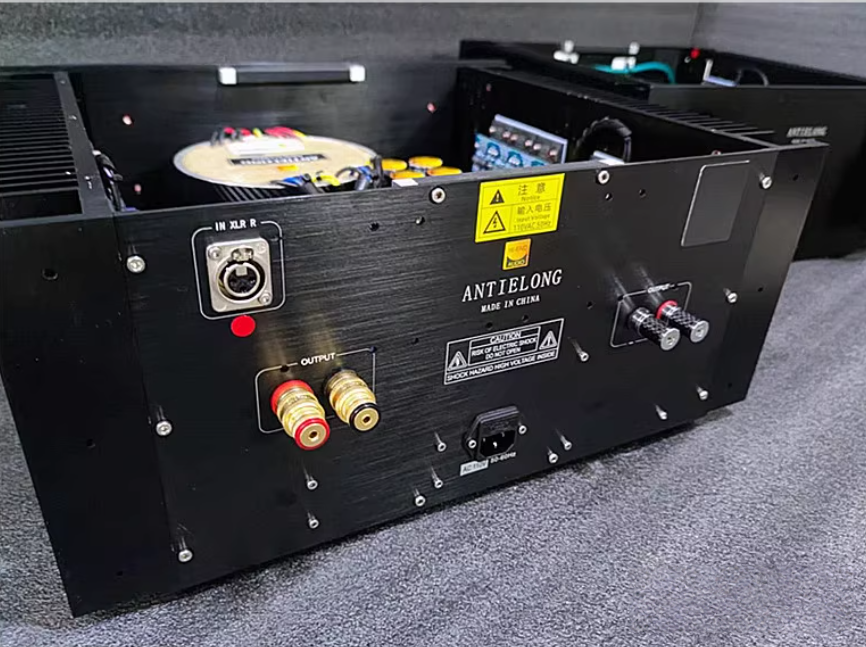

1: When outputting music power (Max. RMS Power) XLR signal input: (Class A and B) 400W @ 8ohms 800W @ 4ohms.
2: This machine adopts a fully balanced design
3: Mains input range: customizable 110/115V 50-60HZ, standard voltage 220V 50-60HZ.
4: Freq. Response 10-20kHz (+/-0.05dB) 10-100kHz (+/-0.5dB)
5: Total Harmonic Distortion (THD)<0.0111%
6: Input Impedance 33.6K ohms
7: Signal to Noise Ratio (SNR)>RCA: 101dB>XLR: 106dB
8: The machine weighs approximately 30kg
9: Machine size (Size) 480 W 224 H 450 D, including handle+horn post/mm

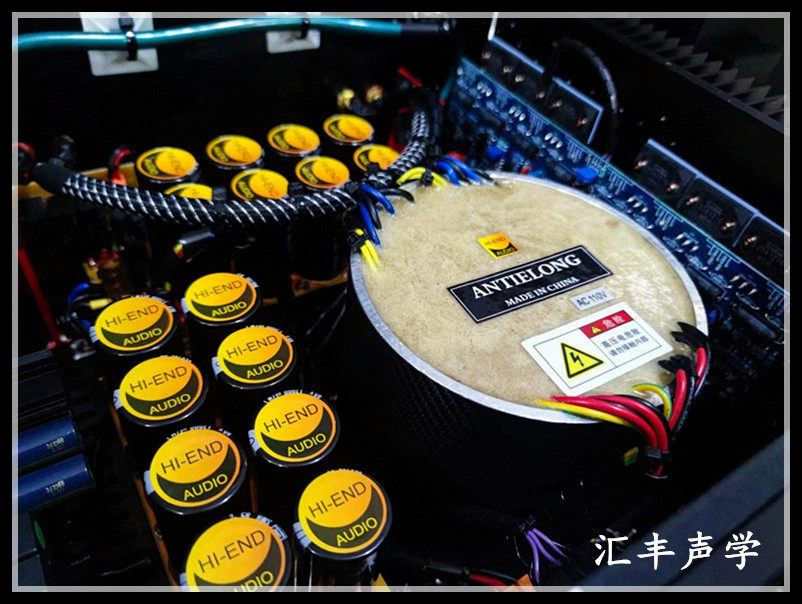

10: Power transformer 1050W
11: Line Gain RCA=+25.64dB/XLR=+31.64dB

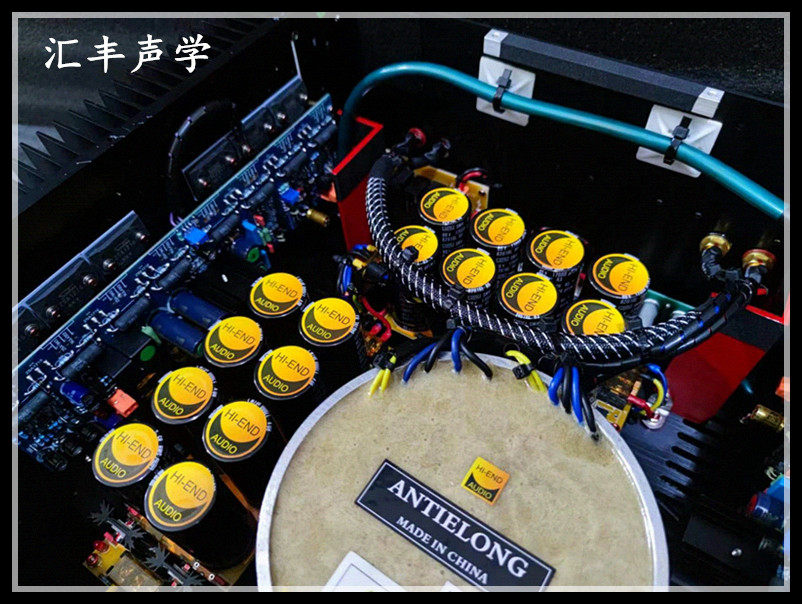

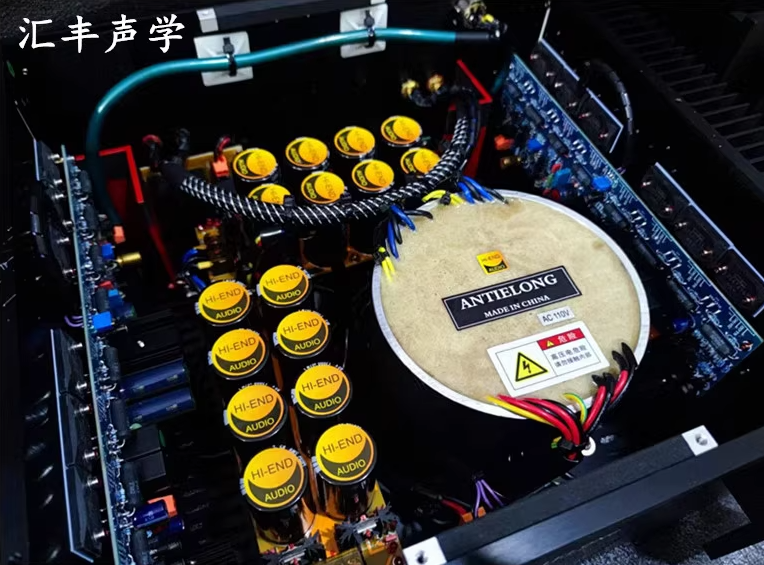

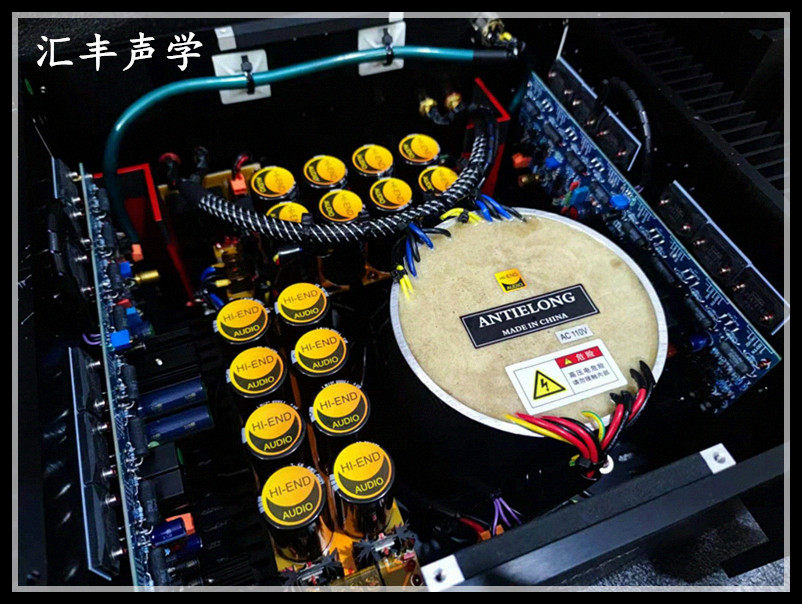

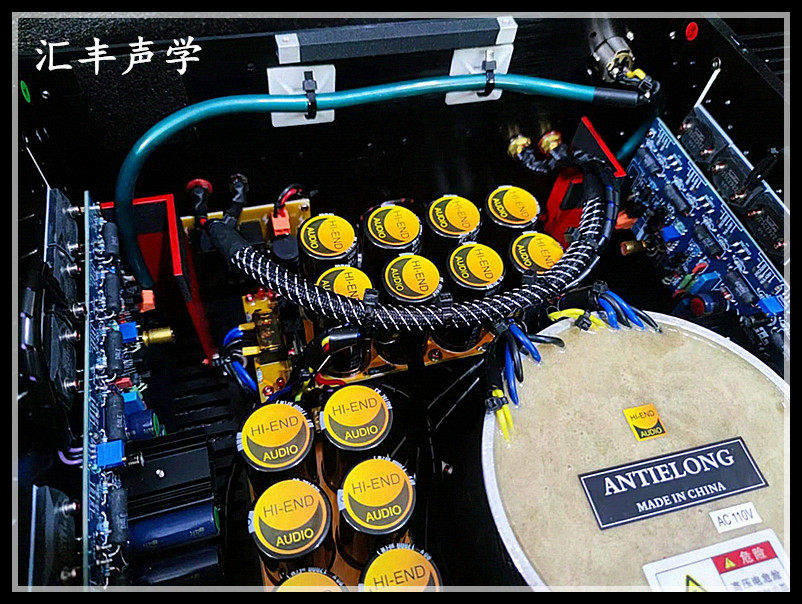

12: Filtering pond 272000UF=272000 UF per channel (composed of 16 Black Diamond capacitors)
13: Damping coefficient: 620FD

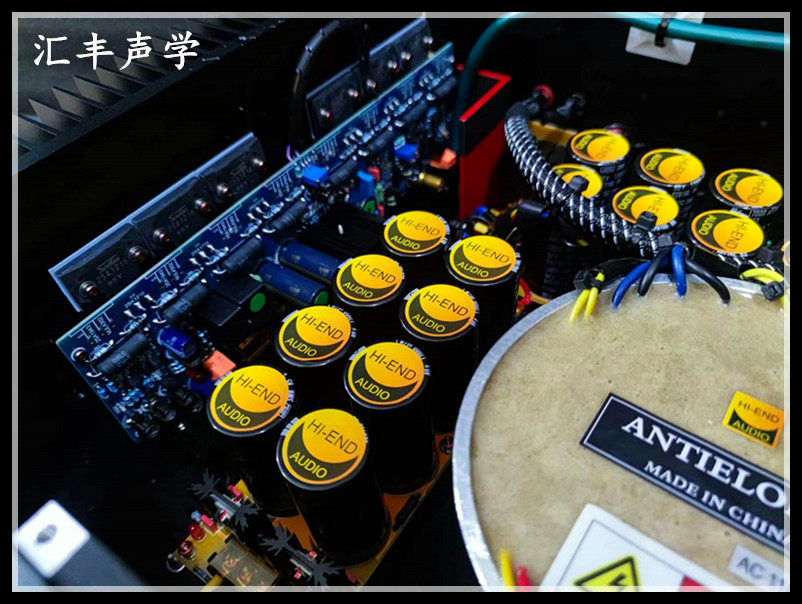

14: Power tube: Sanken Tube King 1216 2922 (12 pieces)
