Boya MA600 Fever HiFi Rear Stage Amplifier Original Imported Design Dual Channel Bias Class A 300w * 2 8 Ω Switchable Balance (XLR) and Single End (RCA) Input

MA-600 Introduction:

Advanced and complex Class A design circuits with high output performance.

32 carefully selected and matched high-quality output transistors.

Current mirror input, more stable output throughout the entire dynamic range

Customized wound audio grade ring transformer, with 2 independent 1000W transformers for left and right channels.

The customized heavy-duty radiator features a special thick rib design to ensure lower operating temperatures.

Advanced protection circuits ensure high operational safety for amplifiers and connected speakers.

An integrated power circuit with a delay relay to eliminate the need for heavy tripping during connection.

Advanced layout and wiring technology ensures noise free operation.

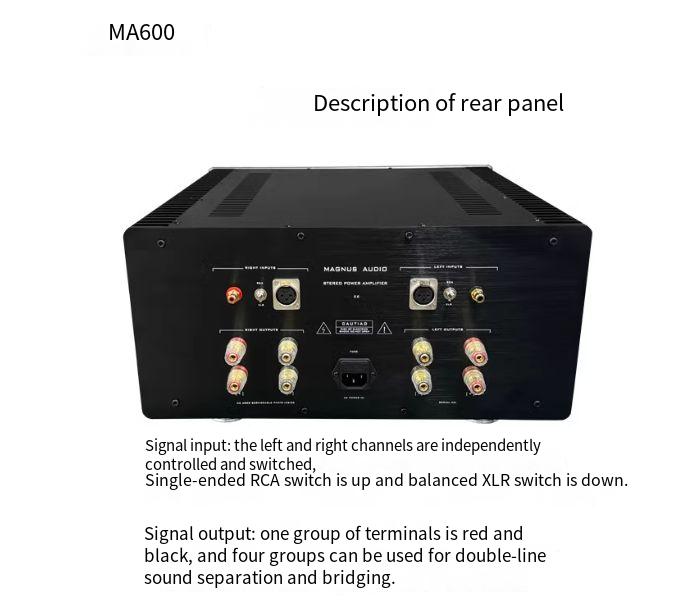

 switchable balanced (XLR) and single ended (RCA) inputs.

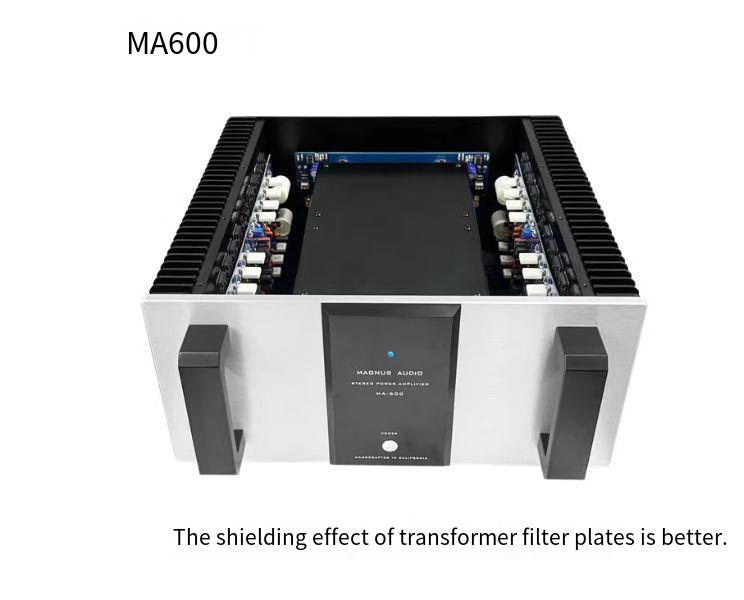

All metal casing for shielding.

MA-600 specification:

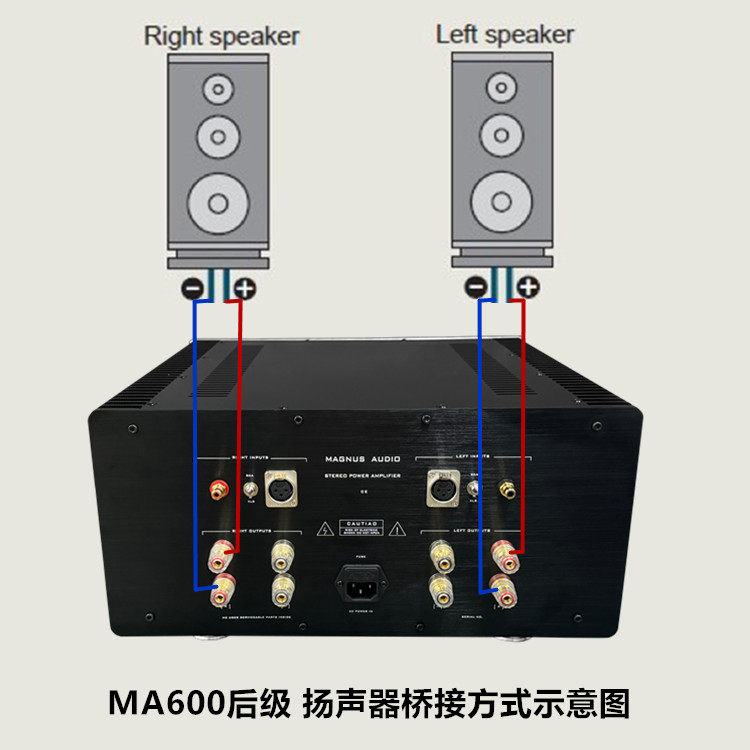

Rated output power: Single channel biased Class A 300 watts (8 Ω) (bridge or dual line splitting)

Frequency response: from 10 Hz to 50 kHz (+/-0.1 dB)

Signal to noise ratio: 105dB

Total Harmonic Distortion (THD):<0.01%

Gain: 33 decibels

Input impedance: 47K ohms (single ended) 47K ohms (balanced)

Input sensitivity: 2.1V RMS

Output voltage: 70V RMS

Damping: 1200 reference 8 ohms

Input: 2 balanced through XLR connectors (1 per channel)

2 single ended RCA connectors (1 per channel)

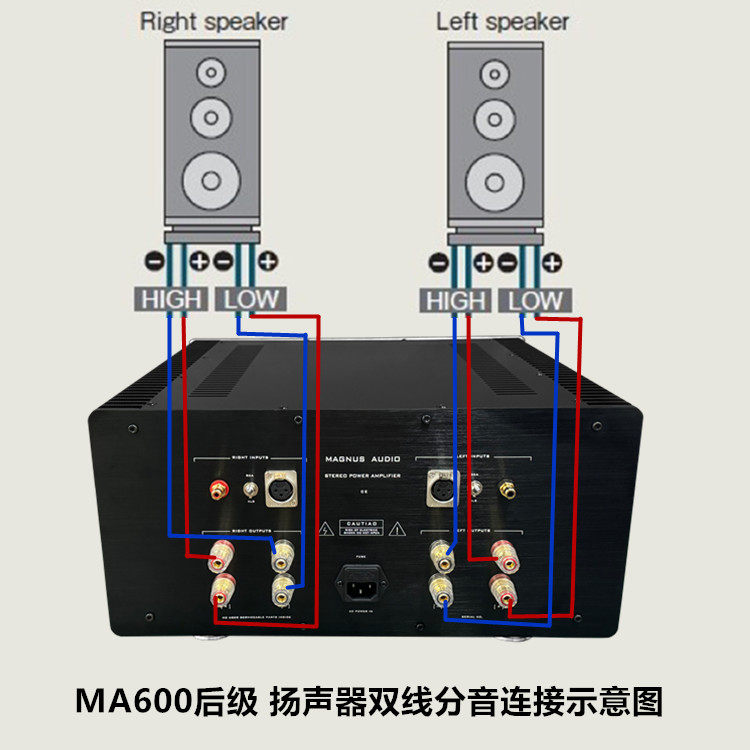

Output: 4 pairs of high-quality terminal posts (2 pairs per channel)

Working voltage: 220V (110V customizable), 50-60Hz

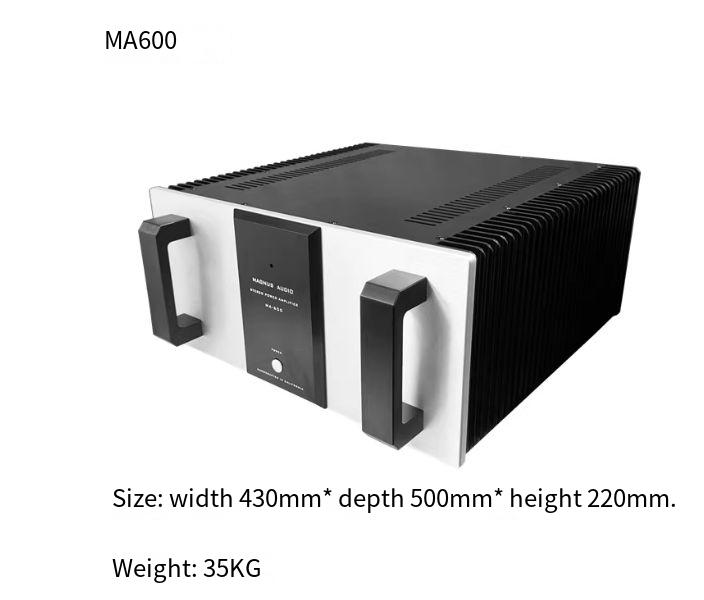

Dimensions: Width 430mm * Depth 500mm * Height 220mm

Weight approximately: 35KG.
