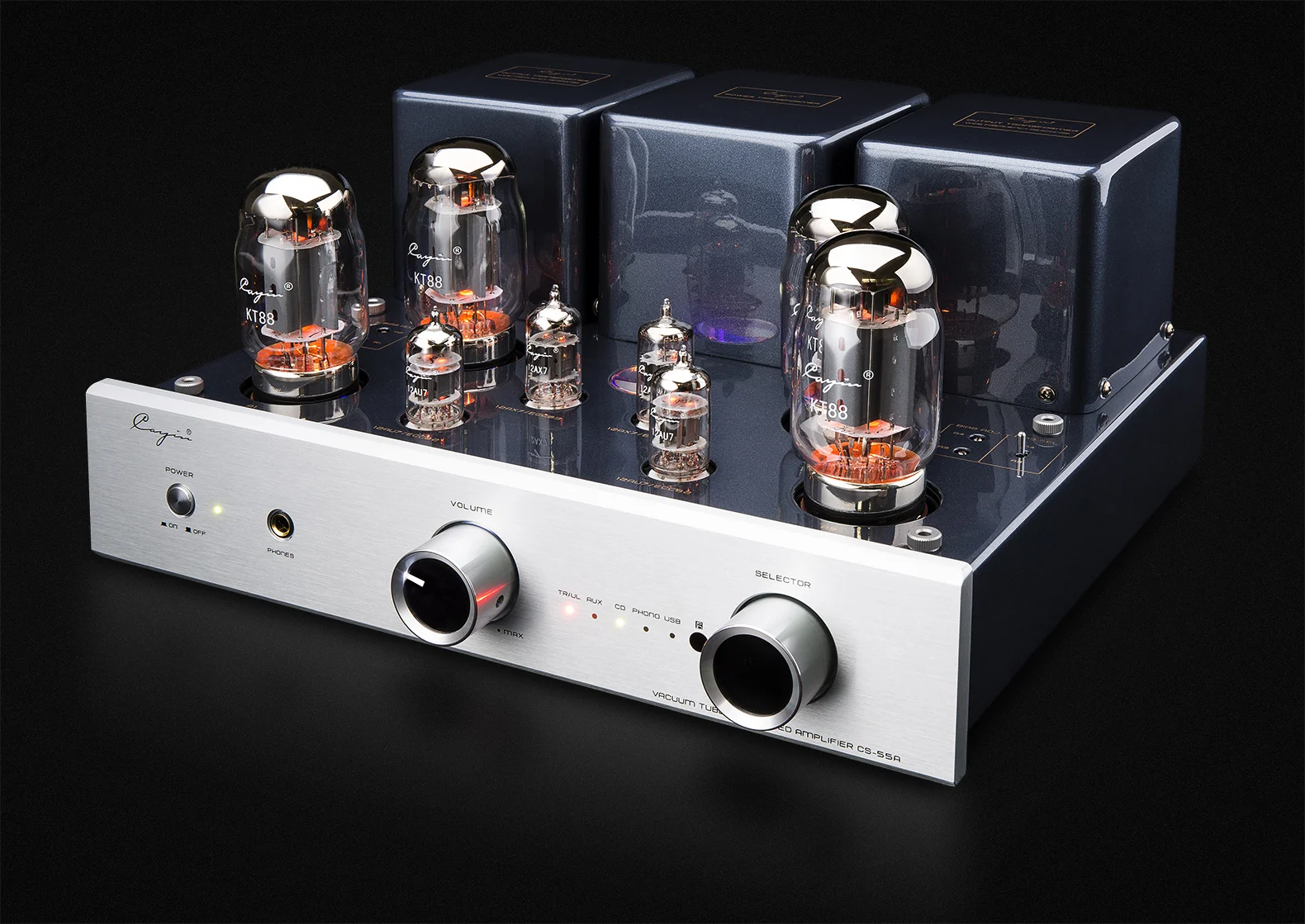

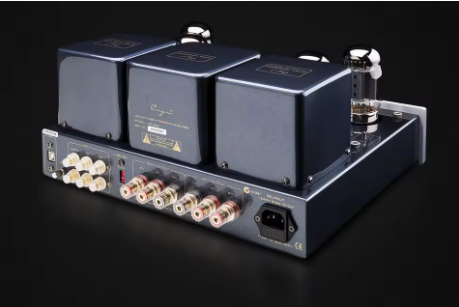

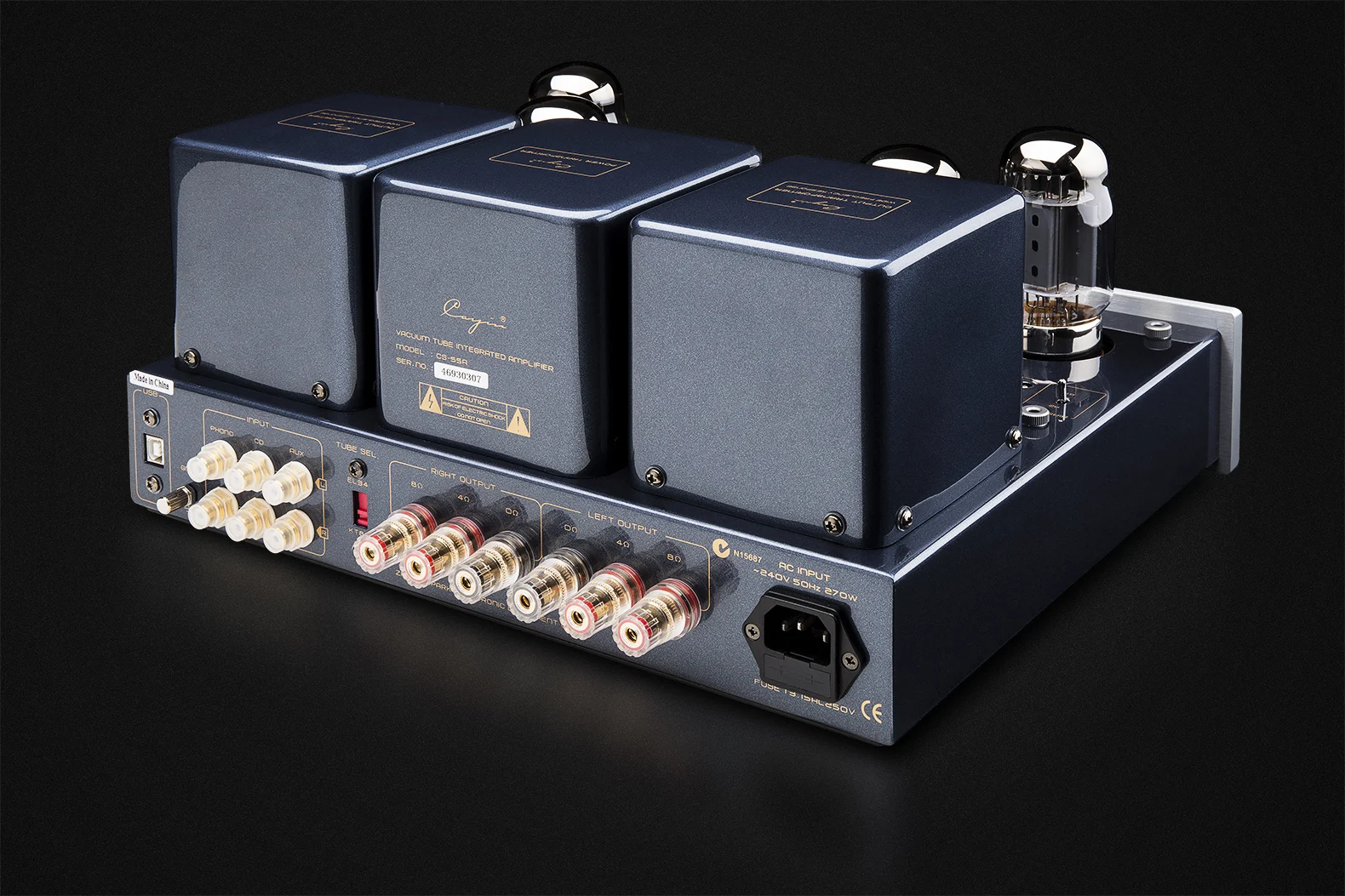

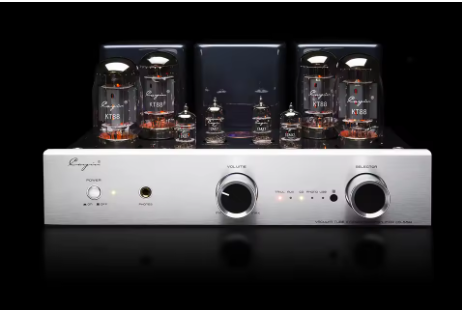

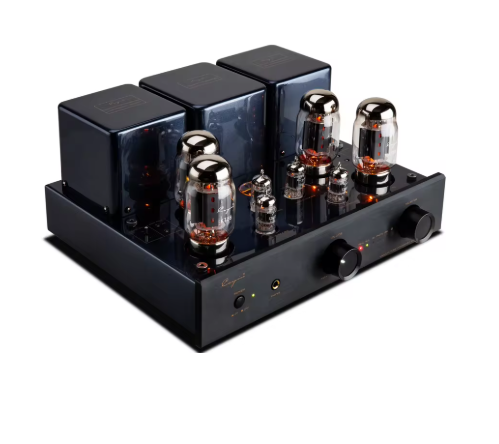

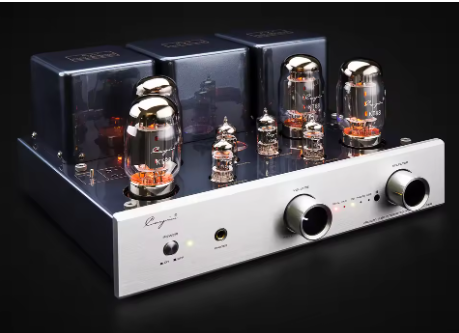

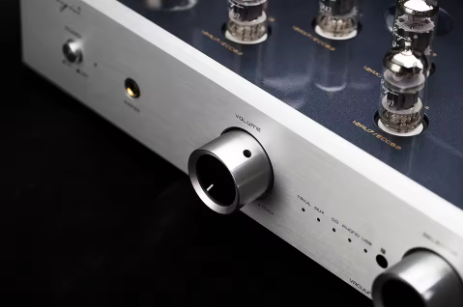

Cayin CS-55A EL34/KT88 Tube Integrated Amplifier USB Phono Input Headphone Speaker Output
Cayin was founded in 1993 and are devoted to design and production of hi-end audio equipment.Their CS-55Ais a beautifully hand crafted valve ampwith point-to-point wiring, and withtoroidalpower transformerand wide bandwidth EI output transformer to bring the music to life.The sweetness of valves with their sonic warmth and aesthetic glow will highlight the true analogue, atmospheric experience of listening to vinyl.
This very special amplifier allows the listener to choose to run KT 88 power tubes or EL 34 family tubes to design their own appropriate favourite listening experience.
From a rated high quality 40 watts per channel on Class A/B mode there is a lively but sweet classic valve sound.It has good detail in the midrange and presents good images in the treble.
Cayin CS-55A has a choice of operational modes: ultralinear or triode. Rather classily, these are selected via the remote control . The choice of mode gives flexibility in the matter of output power, with 40 watts on offer in ultralinear mode, but only 22 watts in triode mode. But what may be of more significance to most listeners is that it invariably slightly alters the basic sound, due to the different impedances and distortion signatures involved.
Auditioning this amp in triode mode, you will be very taken with its presentation. It's particularly good with voices and that, of course, is a big plus with any hi-fi kit. In similar vein, it communicates melodic lines well and one is always clearly aware of the tune when listening, succinctly put,musical!. But there's more to this amp than just sounding nice.It has good detail across the midrange and into the treble and presents very good images, too, with clearly defined lateral placement and stable, plausible depth; you could say this amp makes the direction and focus of a piece of music very clear.
The CS-55A comes with a high quality inbuilt phono preamplifier for direct turntable connection. For digital listeners it has a high end 32 Bit 384 kHZ DAC for seamless streaming.
SPECIFICATIONS
Power Output: 40W+40W (Ultra-linear)
Frequency Response: 5Hz～48kHz (-3dB)
THD: 1%(1kHz)
S/N Ratio: 92dB
Input Sensitivity: 280mV
Input Impedance: 100kΩ
Output Impedance: 4Ω, 8Ω
Inputs: USB，PHONO，CD，AUX
Vacuum Tube: 12AX7/ECC83×2, 12AU7/ECC82×2, KT88/EL34×4
Color: Silver or Black
Accessories: Remote Control
USB DACSpecification:
Compatible with Audio Class 1.0 and Audio Class 2.0
Word length: 16-32bits
Sampling rate:44.1kHz,48kHz, 88.2kHz, 96kHz, 176.4kHz, 192kHz, 352.8kHz, 384kHz
Operating System: Windows XP, Windows Vista, Windows 7, Windows 8, Mac OS
PHONO:
Input Sensitivity：3mV
Input impedance：47kΩ
Total Gain：40dB
S/N ratio：68dB
W×D×H: 360mm×334mm×180mm
Net Weight: 17kg
