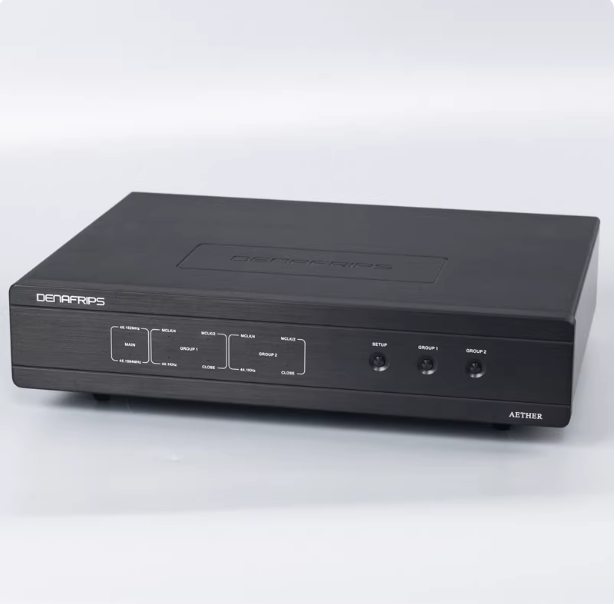

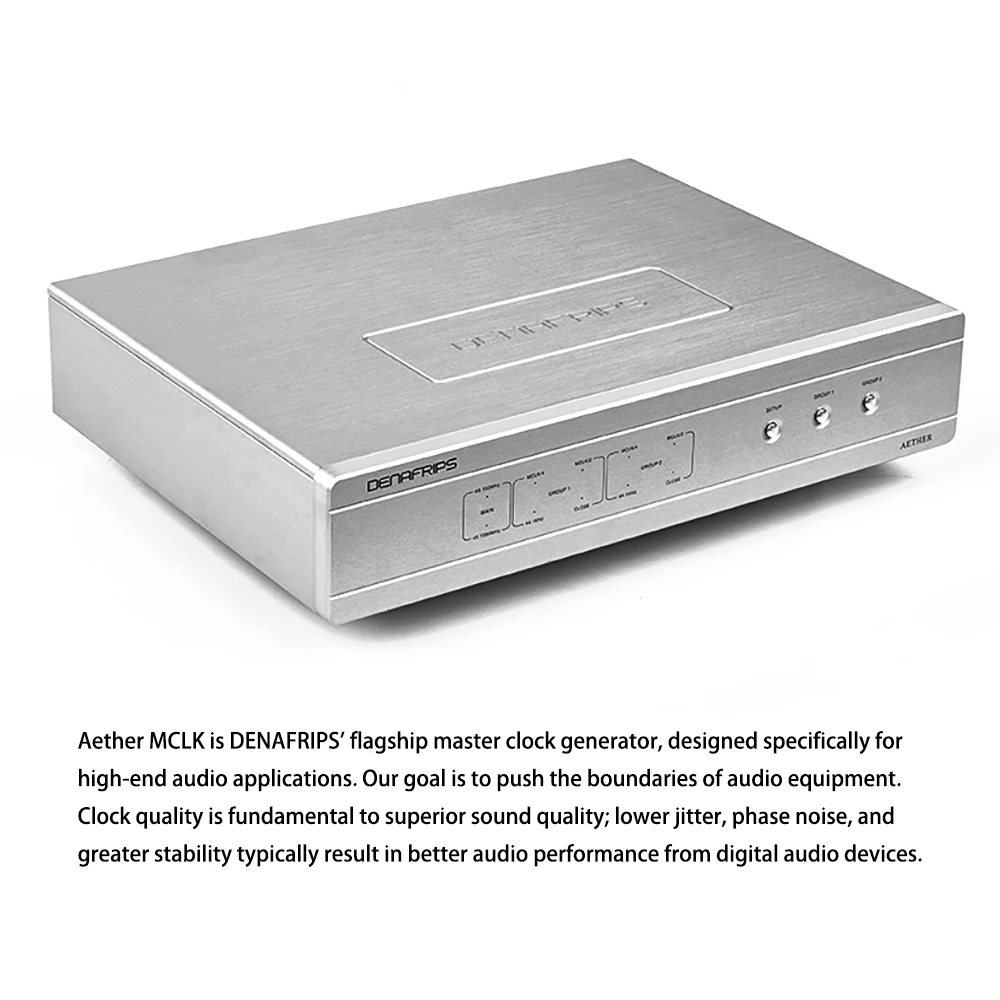

The Aether MCLK is DENAFRIPS' flagship master clock generator, designed for high-end audio applications. Our goal is to push the boundaries of audio equipment. Clock quality is crucial for superior sound quality; lower jitter, phase noise, and stability generally translate to better sound quality in digital audio equipment.

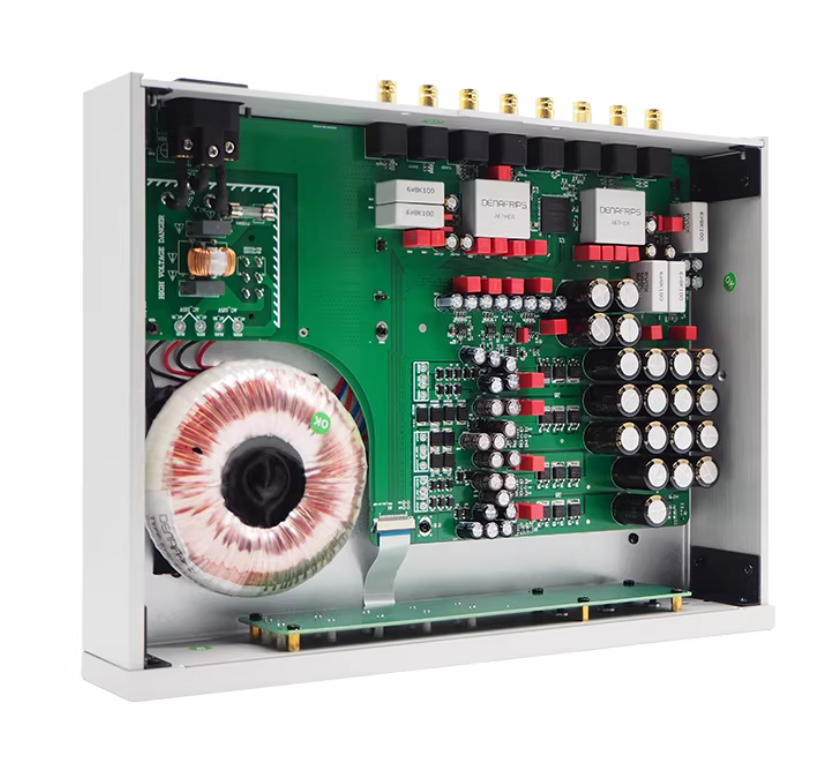

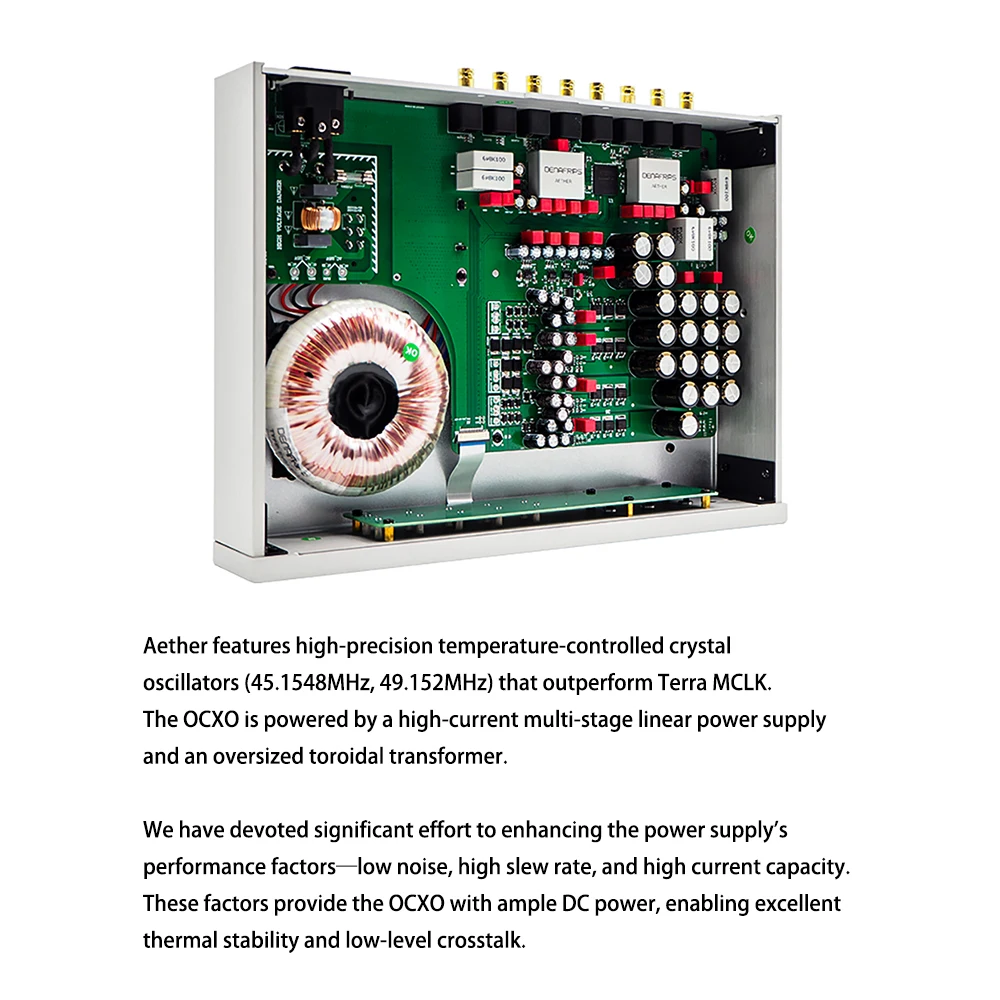

The Aether features high-precision oven-controlled crystal oscillators (45.1548MHz and 49.152MHz), surpassing the Terra MCLK. The OCXO is powered by a high-current, multi-stage linear power supply and an oversized Type-0 transformer.
We've invested significant effort in optimizing the power supply's performance factors—low noise, high slew rate, and high current. These factors provide ample DC power to the OCXO, resulting in excellent thermal stability and low crosstalk.

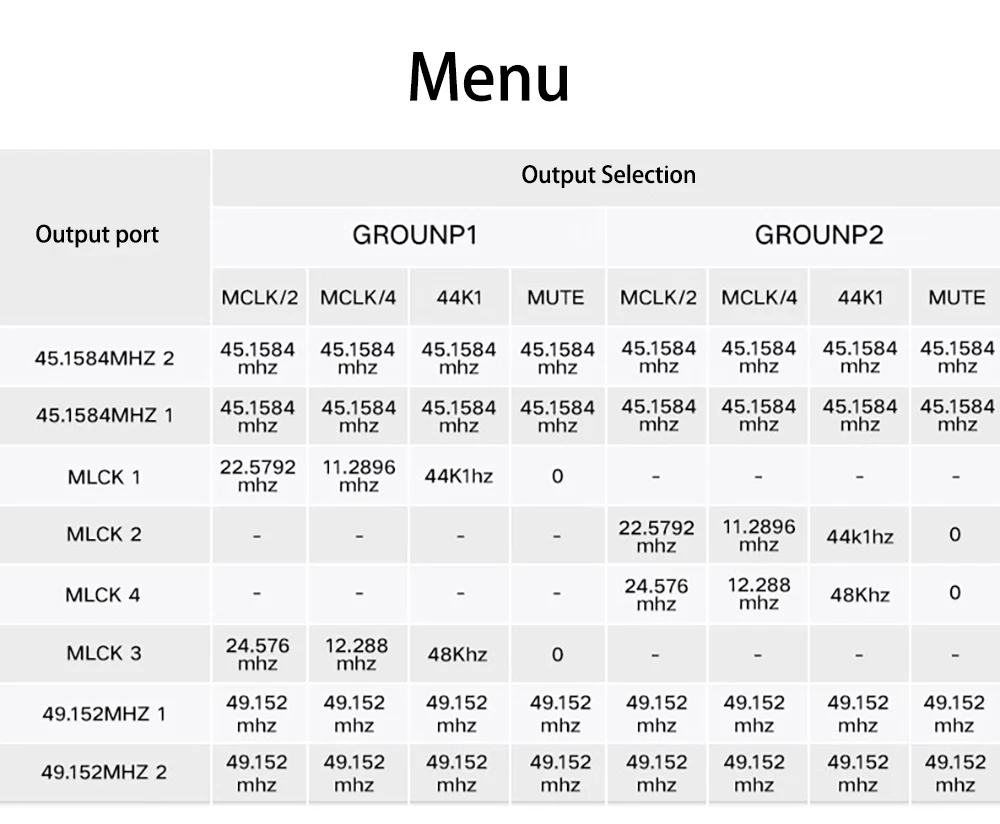

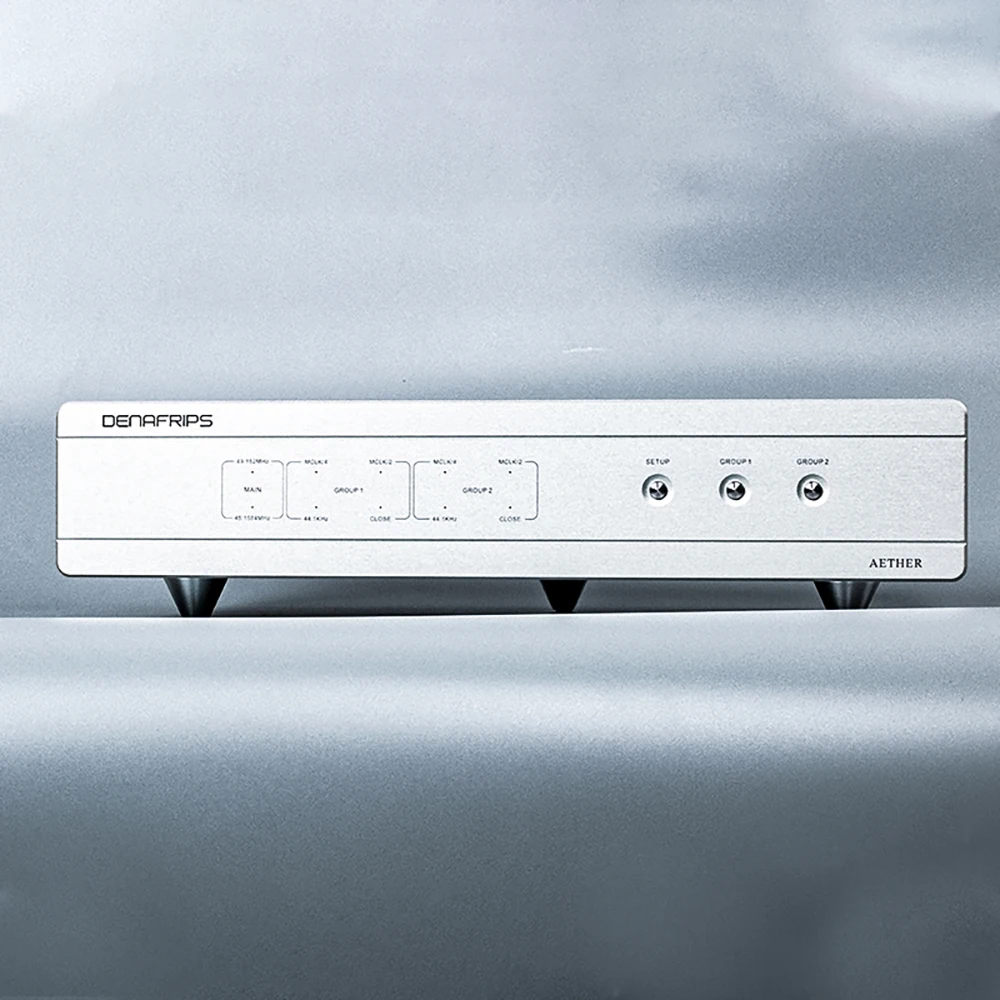

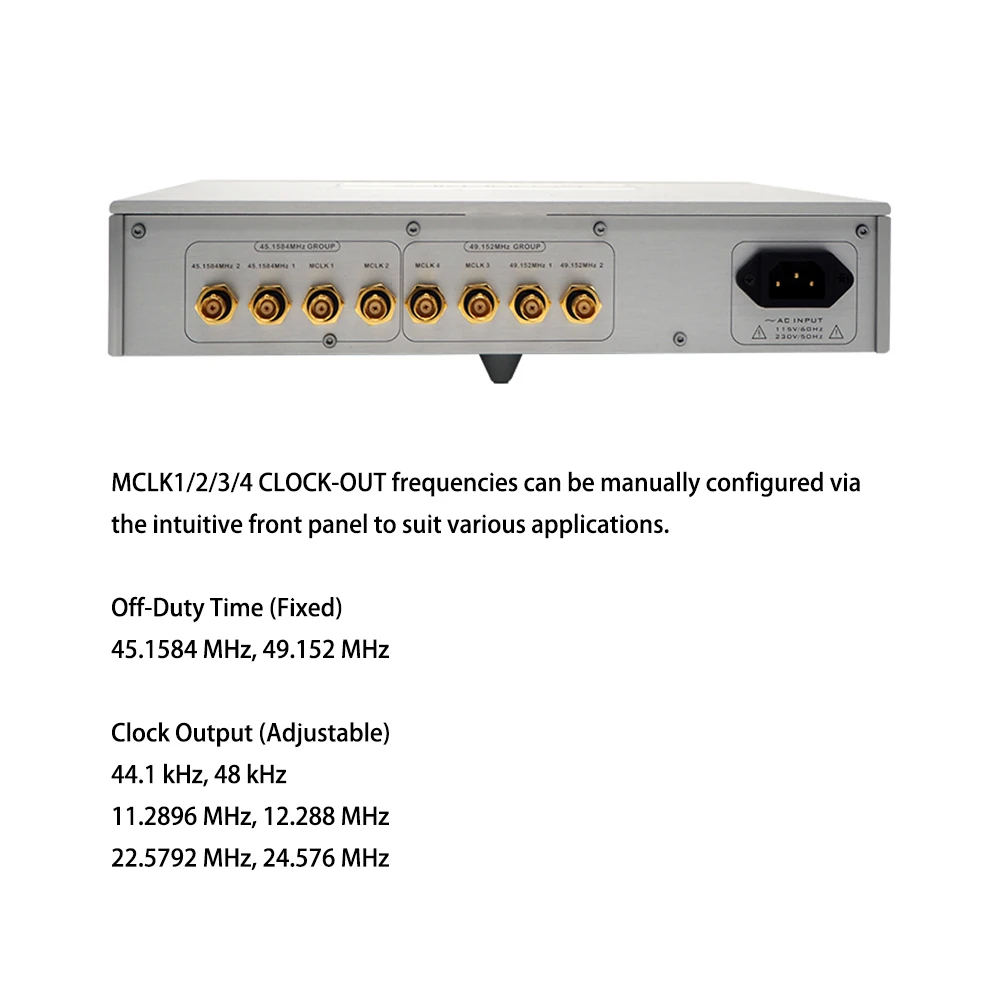

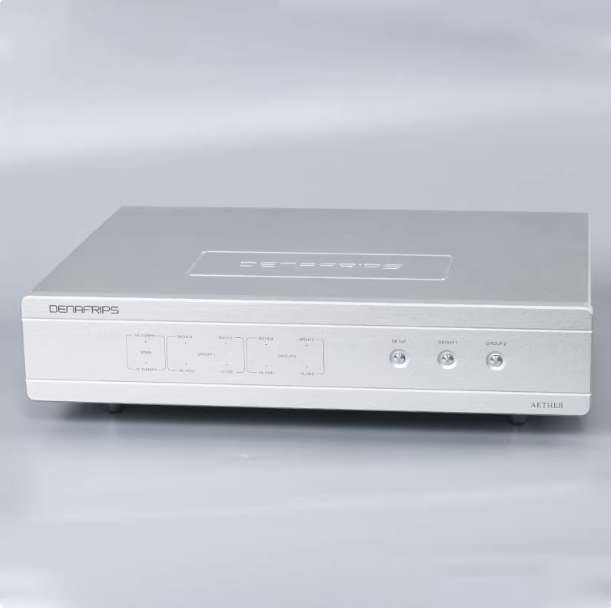

MCLK1/2/3/4 clock-out frequencies can be manually configured via the intuitive front panel to suit a variety of applications.
Off-Hours (Fixed)
45.1584 MHz, 49.152 MHz
Clock Outputs (Adjustable)
44.1 kHz, 48 kHz
11.2896 MHz, 12.288 MHz
22.5792 MHz, 24.576 MHz
Key Features: Ultra-low-jitter OCXO oscillator / Adjustable output frequency / Compact design

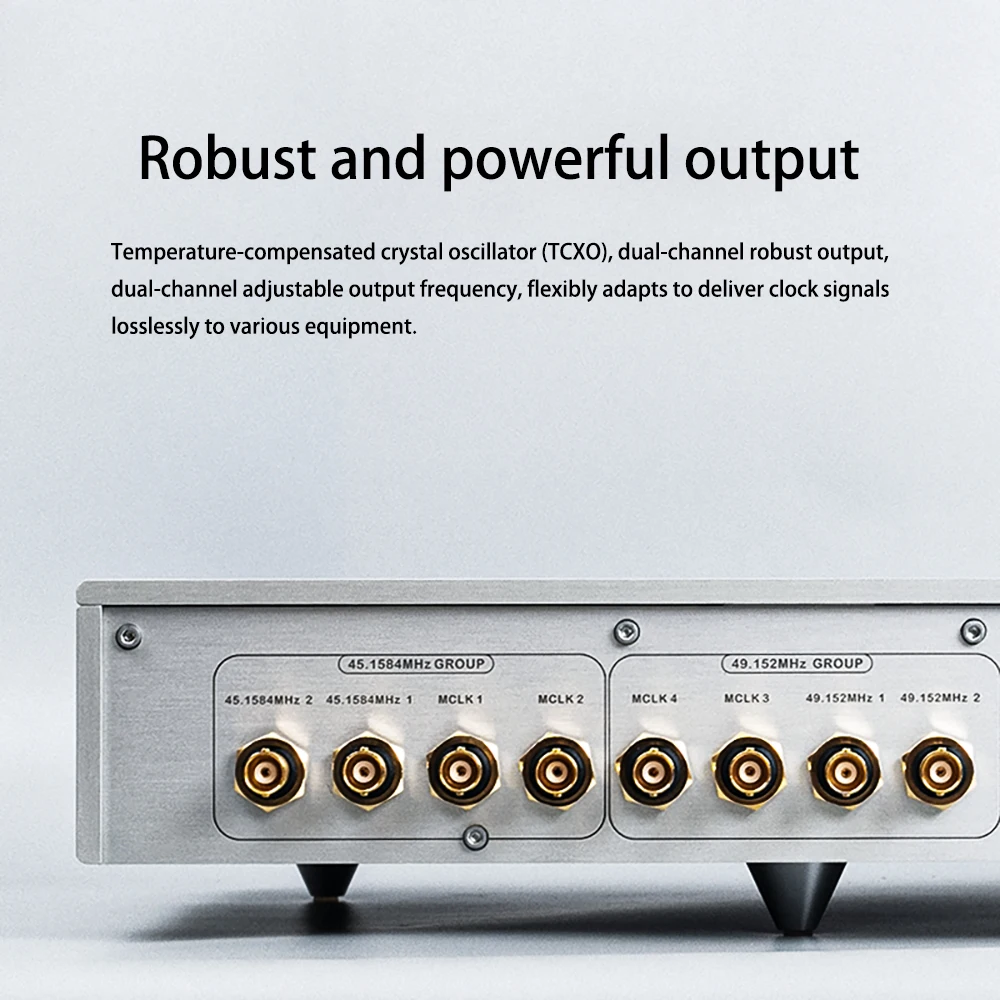

Fixed clock outputs: 45.1548 MHz x2, 49.152 MHz x2
Adjustable clock outputs: 44.1 kHz, 48 kHz / 11.2896 MHz, 12.288 MHz / 22.5792 MHz, 24.576 MHz

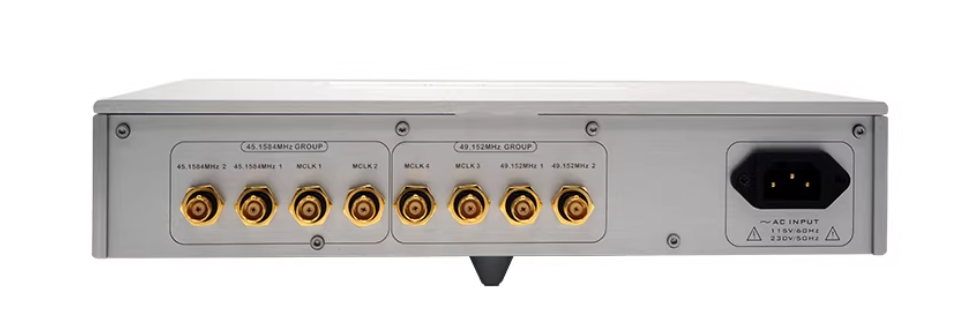

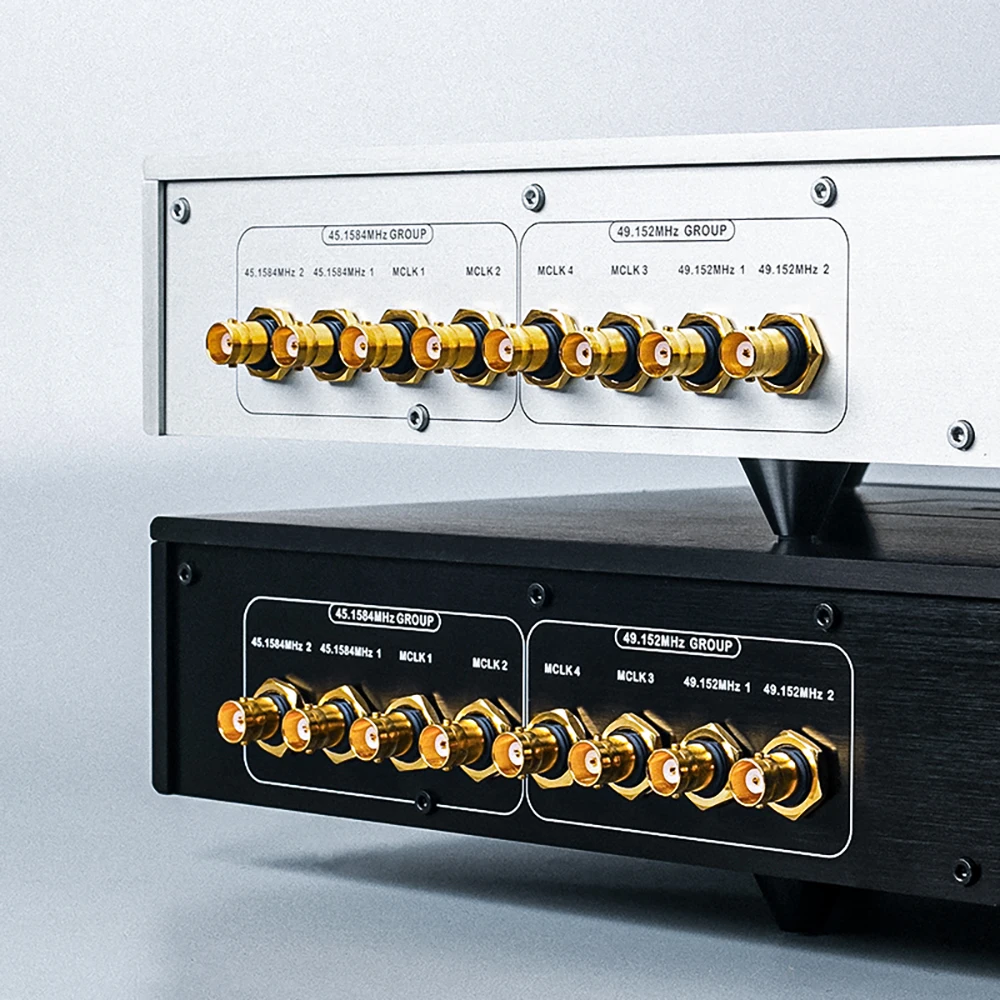

Output Connector: BNC, 75Ω impedance
Power Requirements: 100-240 VAC, 50/60 Hz (manual selectable)
Power Consumption: ≤20W

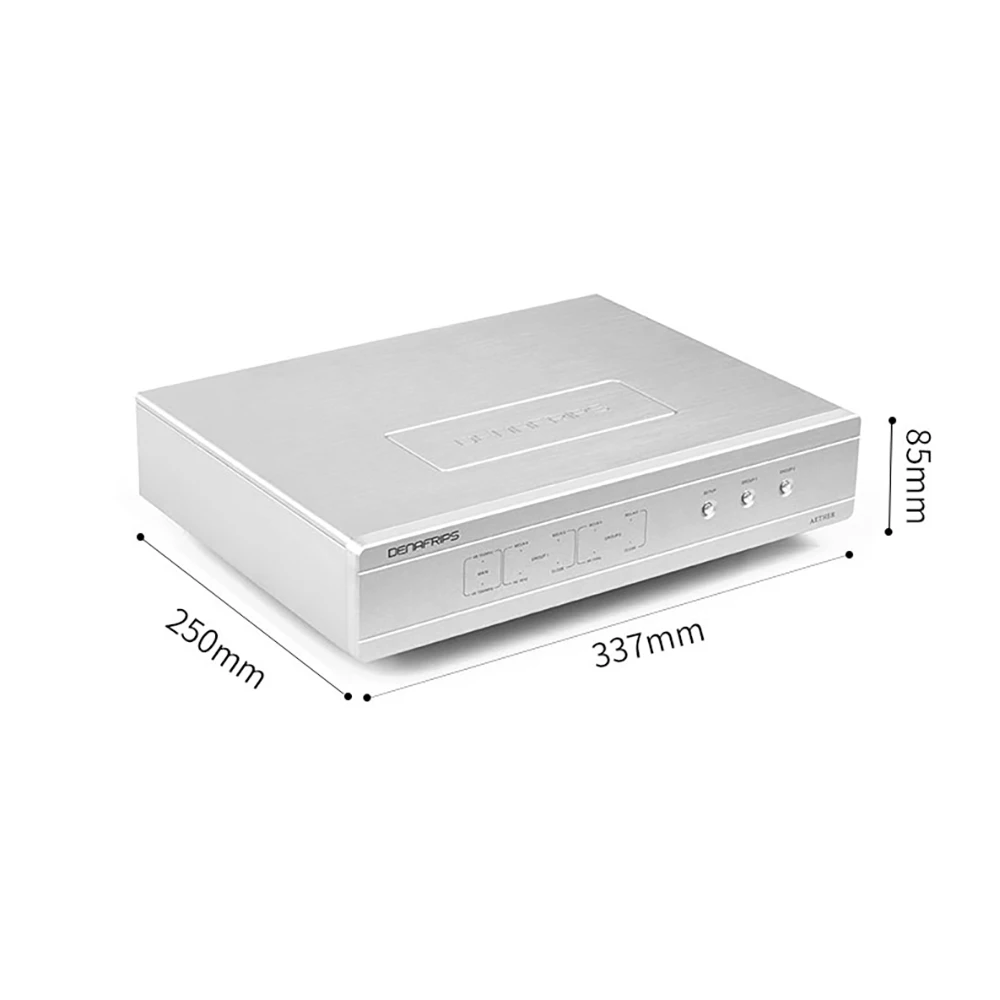

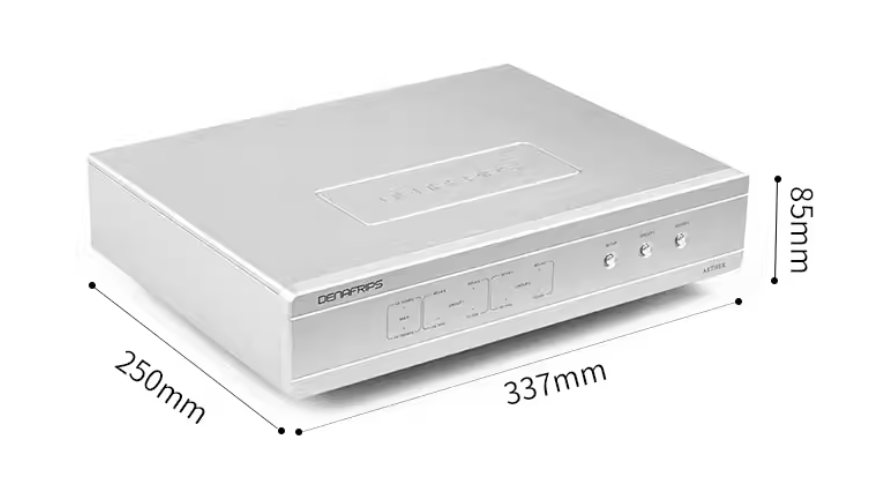

Dimensions: 337W x 250D x 85H mm (including feet)
