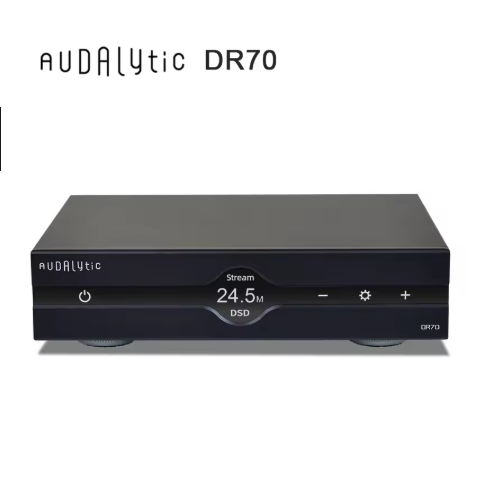

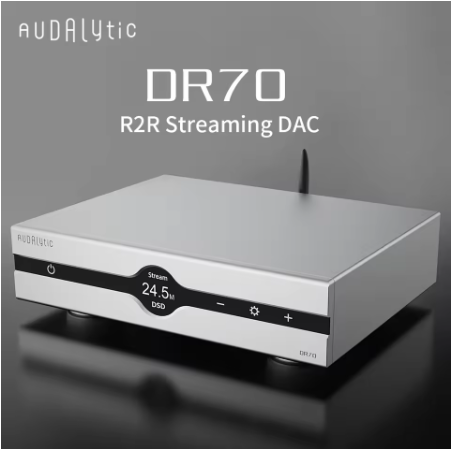

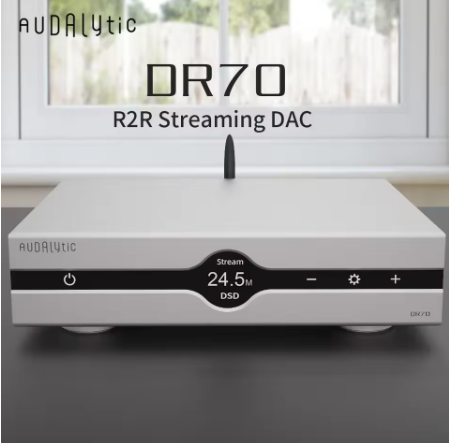

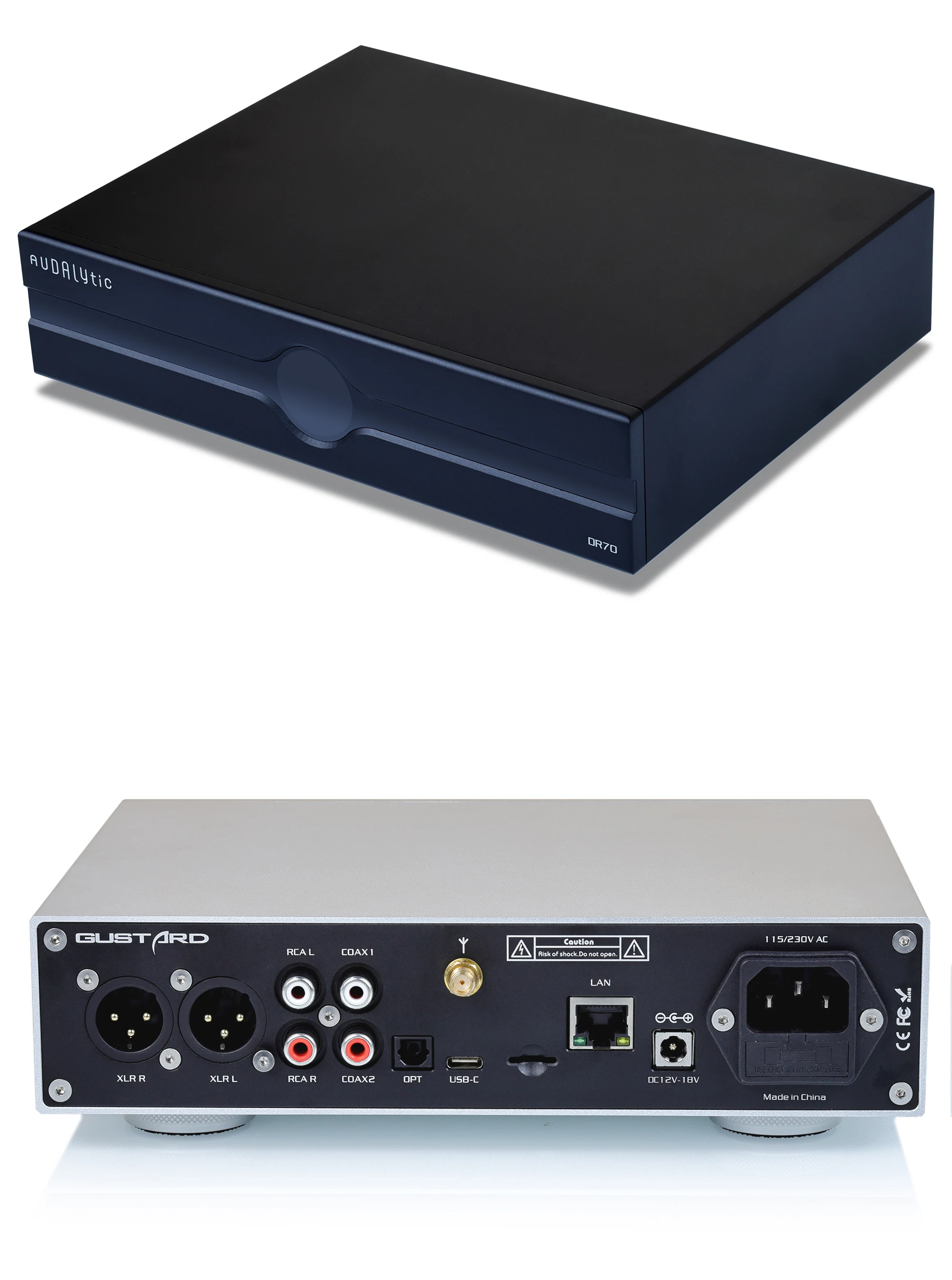

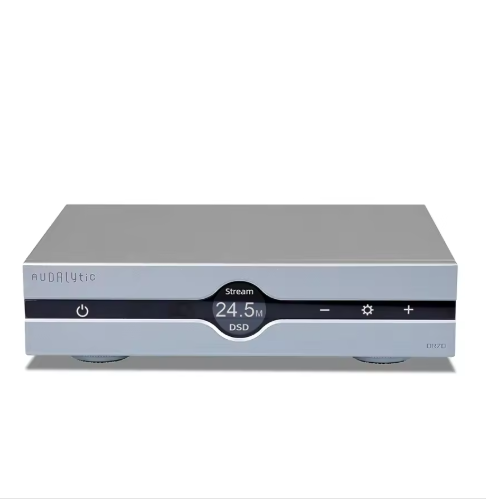

Gustard Audalytic DR70 R2R Streaming DAC Native 1Bit DSD D/A Converter DSD512 PCM768 Bluetooth 5.0 Decoder

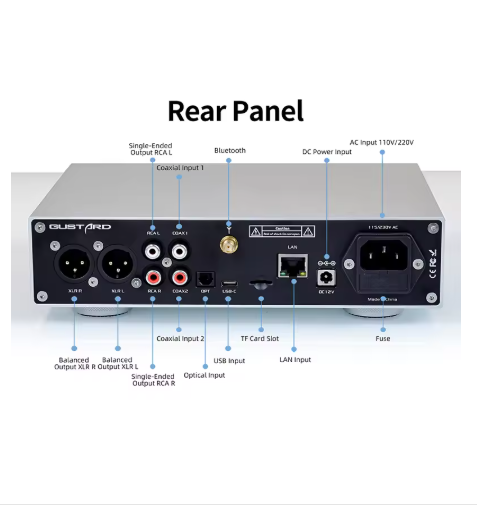

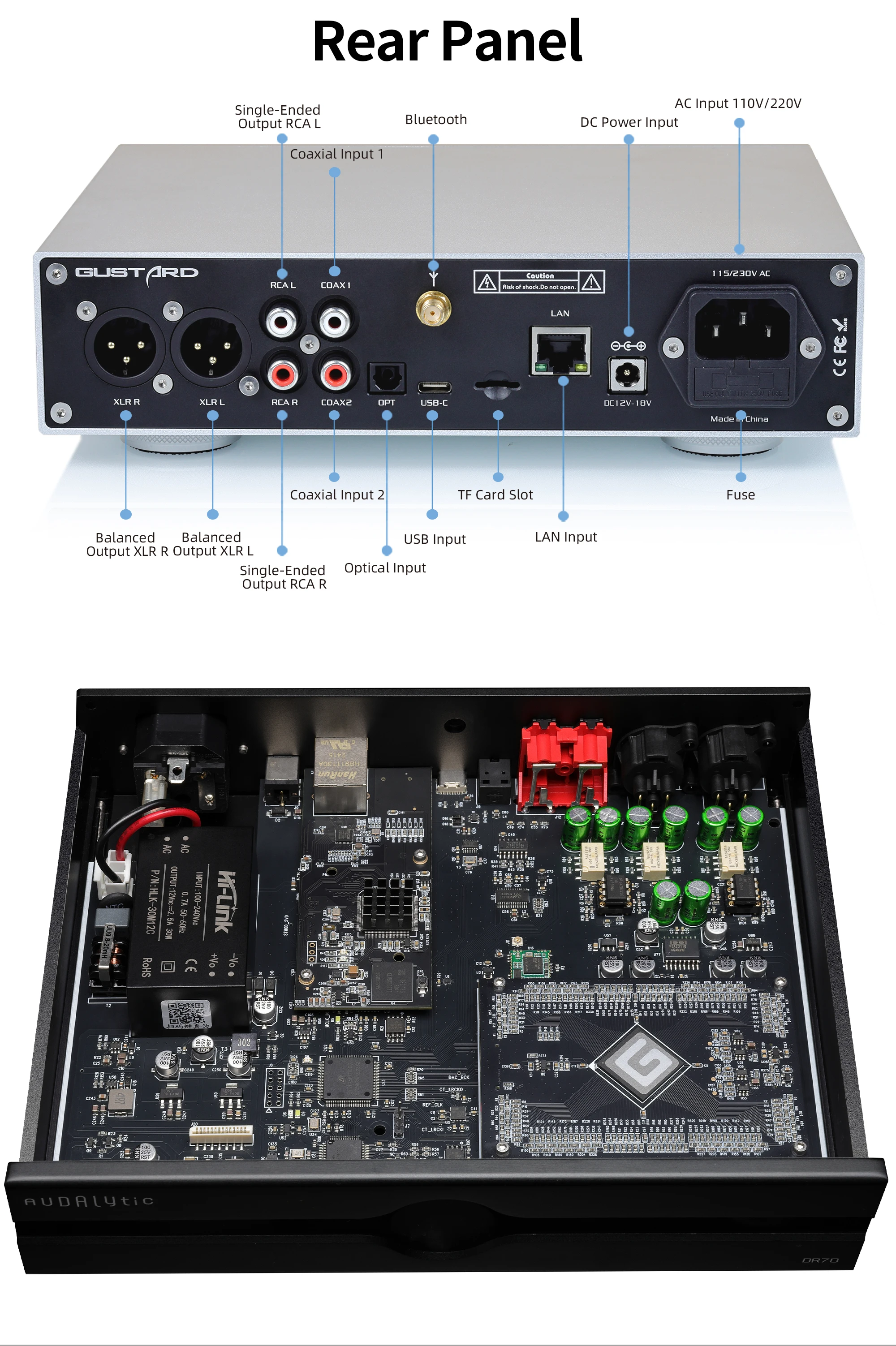

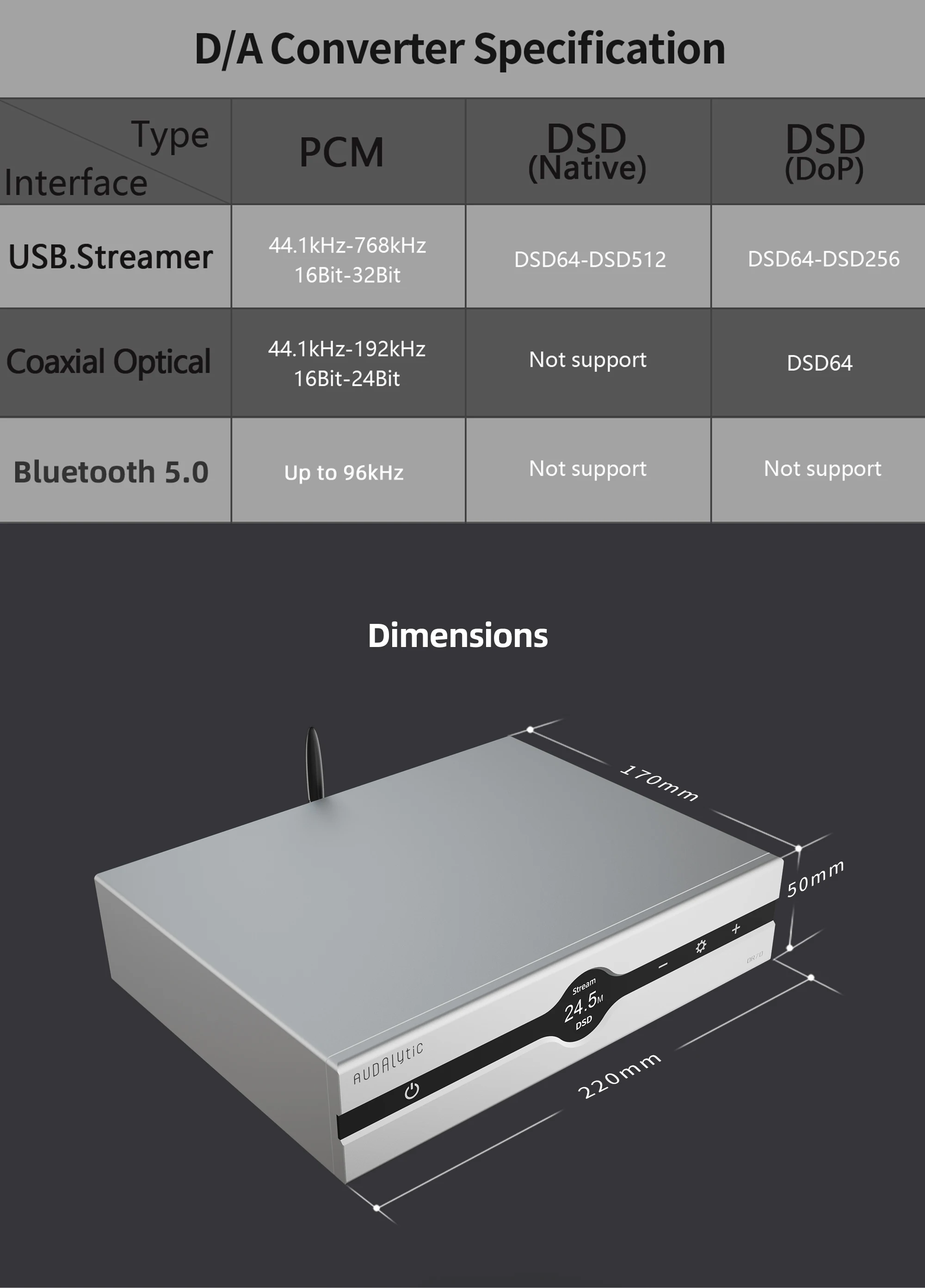

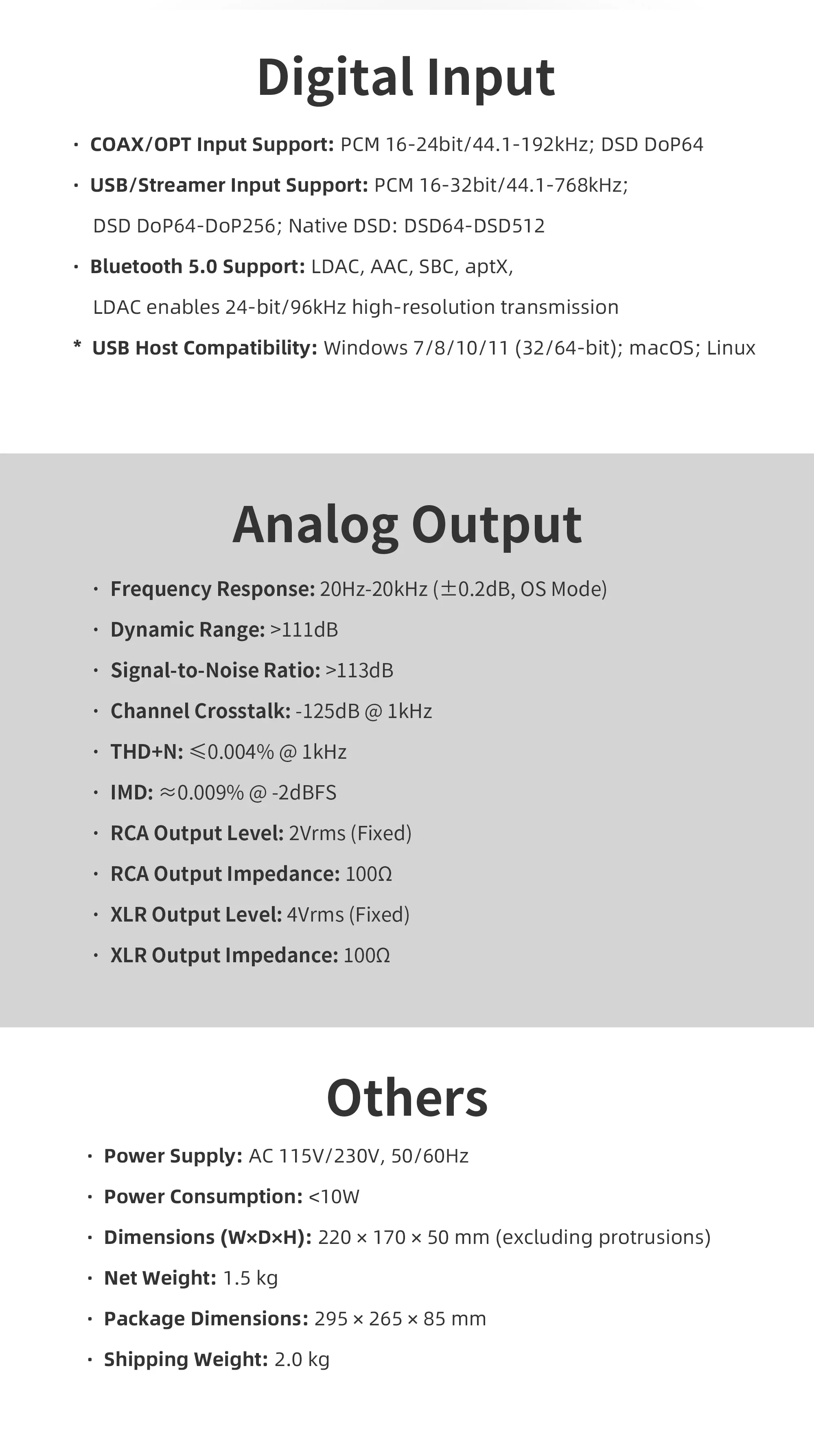

Digital Input

COAX/OPT Input Support: PCM16-24bit/44.1-192kHz; DSD DoP64

USB/Streamer Input support:

PCM: 16-32bit/44.1-768kHZ;

DSD: DoP64-DoP256;

Native DSD:DSD64-DSD512

Bluetooth 5.0 support: LDAC, AAC, SBC, aptX,LDAC enables 24-bit/96kHz high-resolution transmission

USB Host Compatibility: Windows 7/8/10/11(32/64-bit); macI0S; Linux

Analog Output

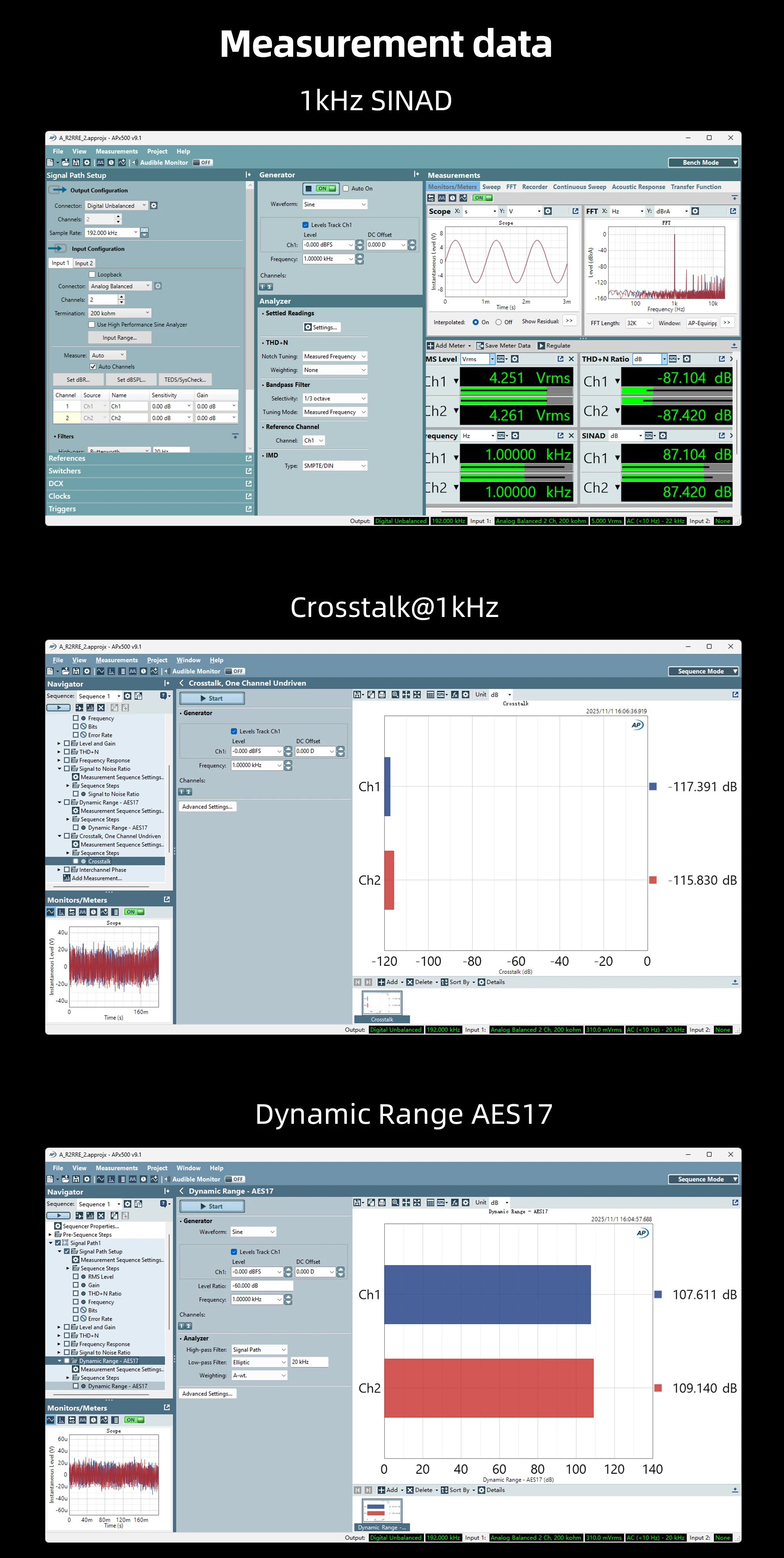

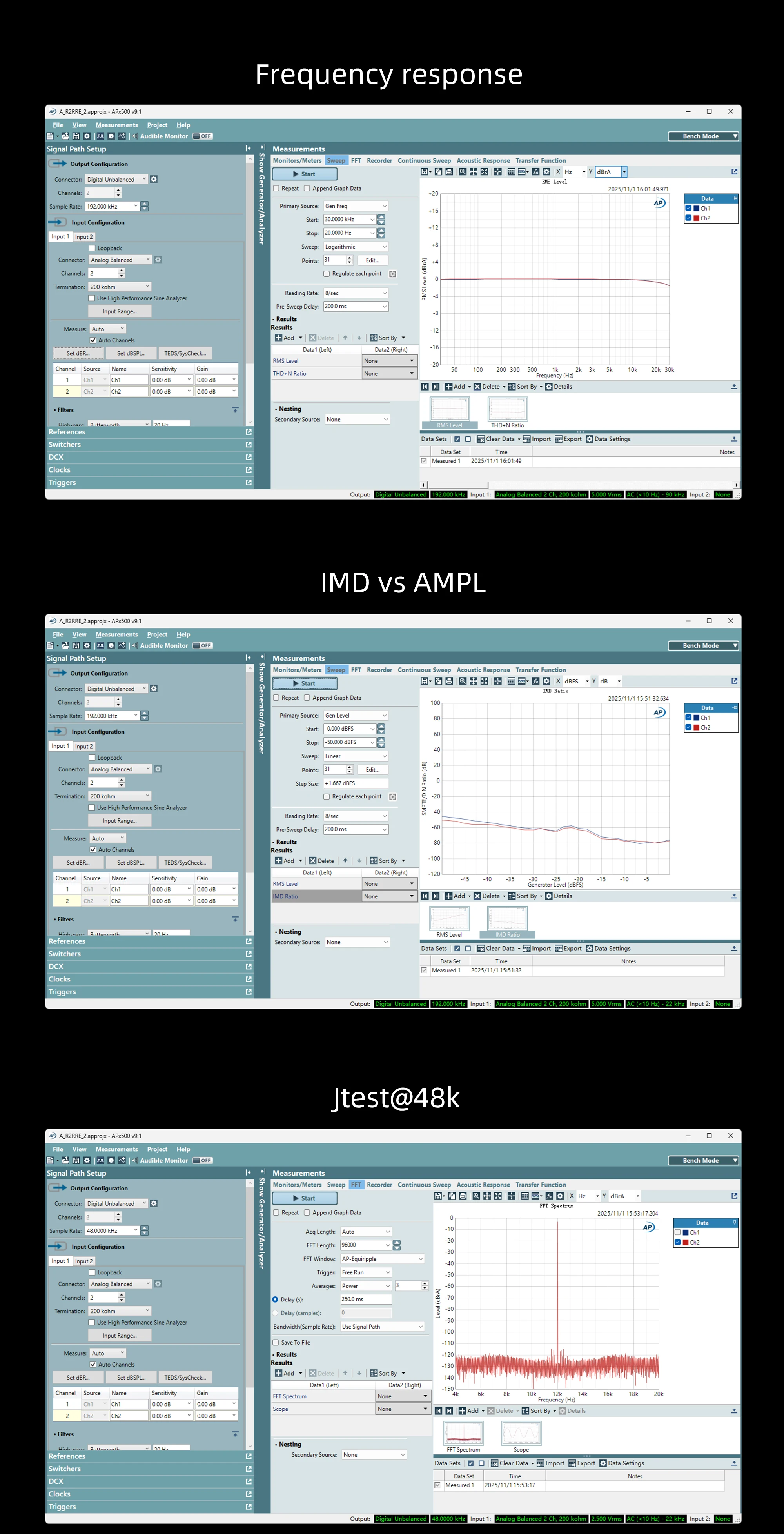

Frequency Response: 20Hz-20kHz(±0.2dB, OS Mode)

Dynamic Range: >111dB

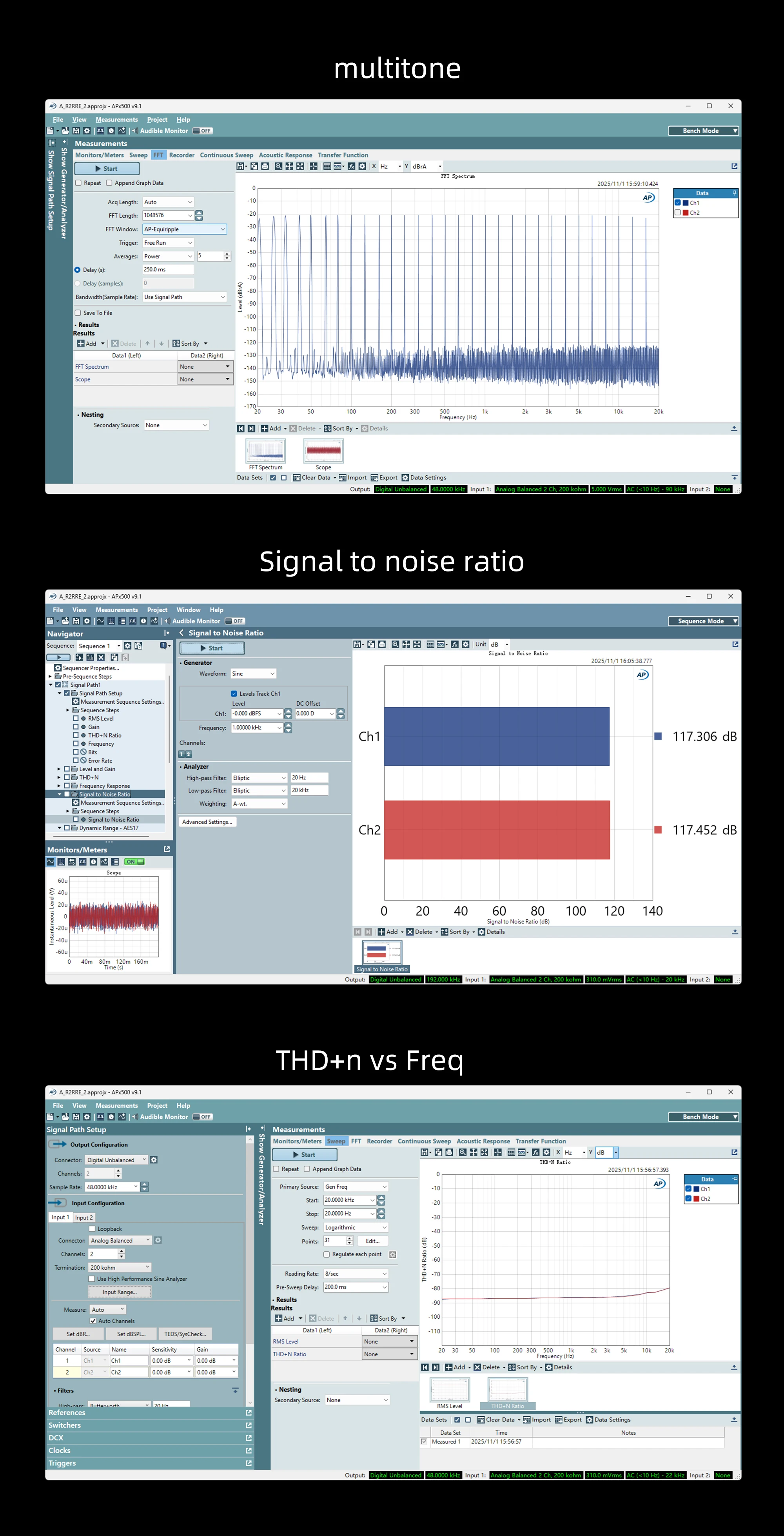

Signal-to-Noise Ratio: >113dB

ChannelCrosstalk: -125dB @ 1kHz

THD+N: ≤0.004% @ 1kHz

IMD: ≈0.009% @ -2dBFS

RCA Output Level: 2Vrms (Fixed)

RCA Outputlmpedance: 100Ω

XLR Output Level: 4Vrms (Fixed)

XLR Outputlmpedance: 100Ω

Others

Power Supply: AC 115V/230V,50/60Hz

Power Consumption: <10W

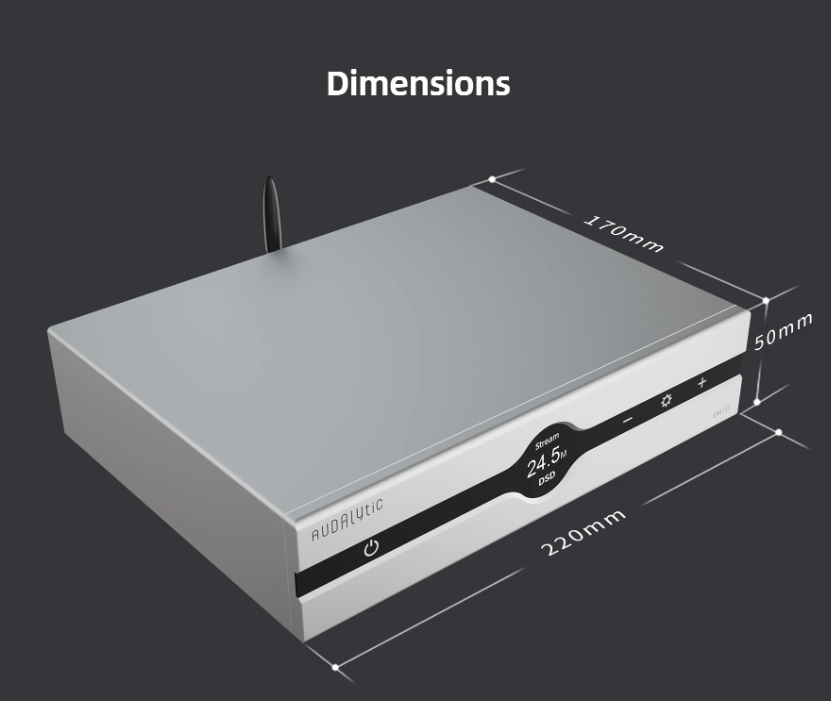

Dimensions (WxDxH): 220 x170 x 50 mm (excluding protrusions)

Net Weight: 1.5 kg

Package Dimensions: 295 x 265 x 85 mm

Shipping Weight: 2.0 kg

Versatile Input Options

Featuring a USB Type-C input, this DAC offers flexibility and compatibility with various devices.

High-Resolution Audio Support

Experience unparalleled sound quality with support for DSD512 and PCM768, ensuring a rich, immersive audio experience.

Precision Sampling

With PCM sampling frequencies up to 44.1 kHz and DSD sampling frequencies up to 2.8224 MHz (DSD64), enjoy precise, high-fidelity audio reproduction.

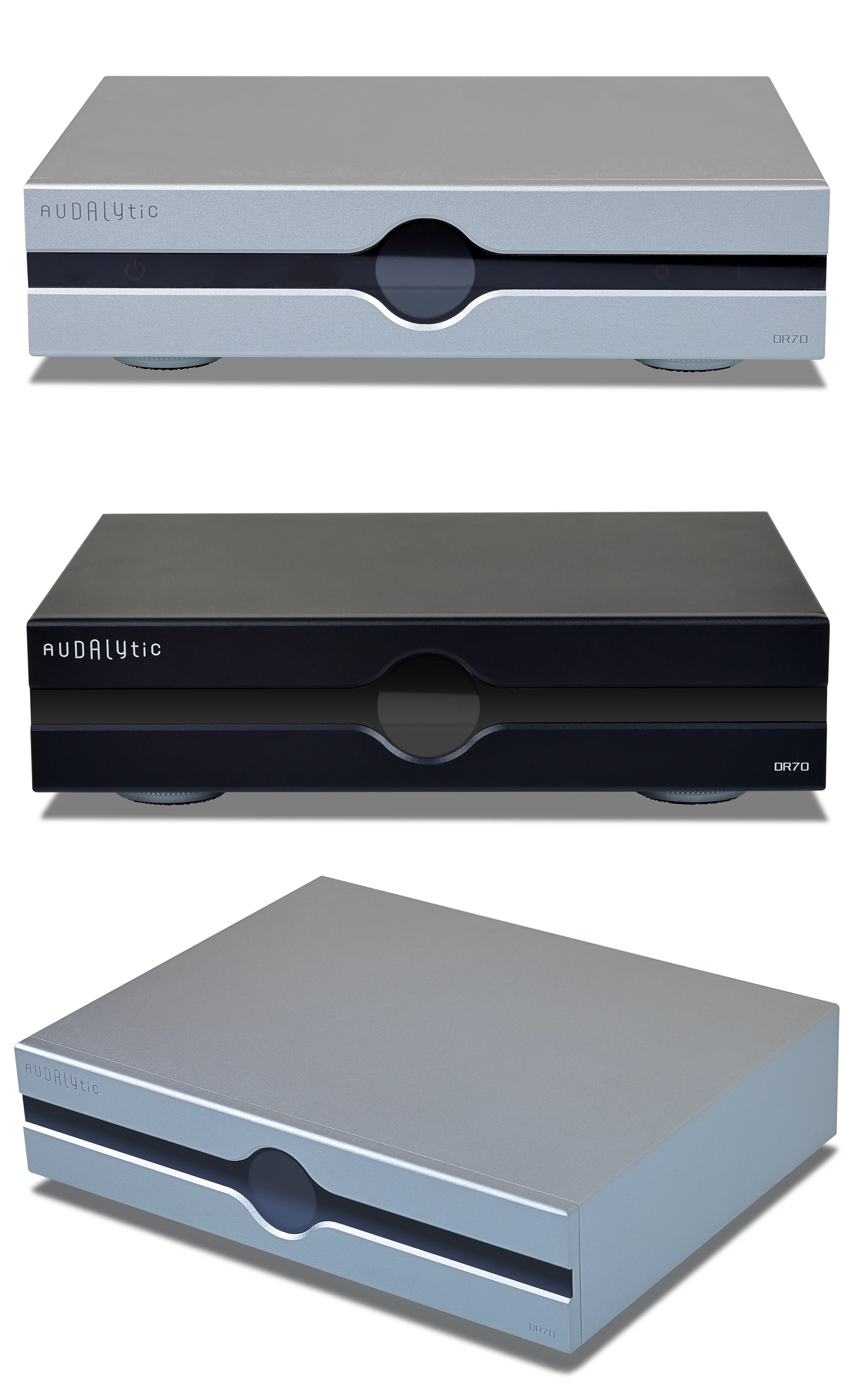

Robust Material Construction

Crafted from durable metal, this DAC promises longevity and stability, perfect for desktop setups.

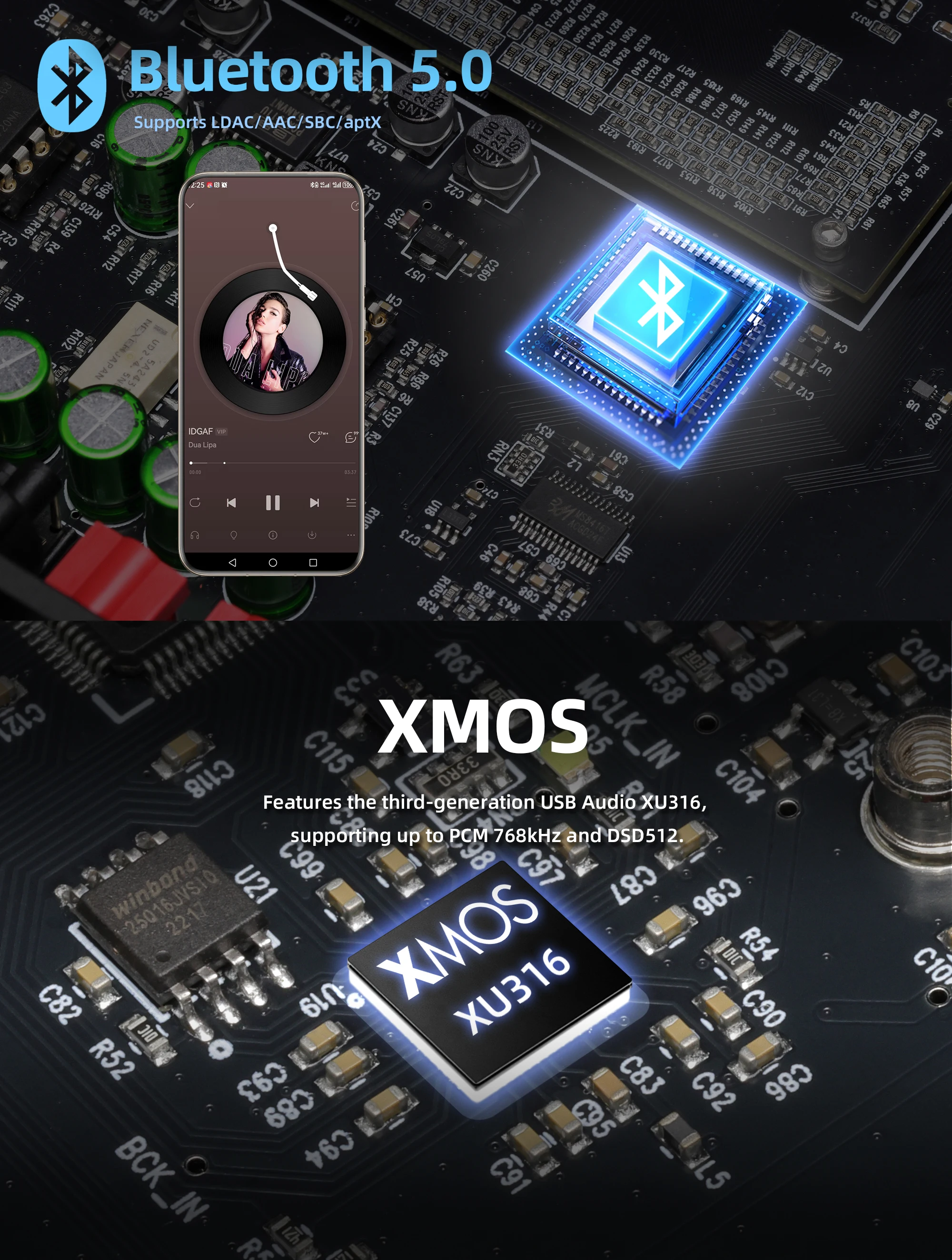

Bluetooth 5.0 Connectivity

Stay connected and stream seamlessly with Bluetooth 5.0, offering faster pairing and improved audio transmission.
