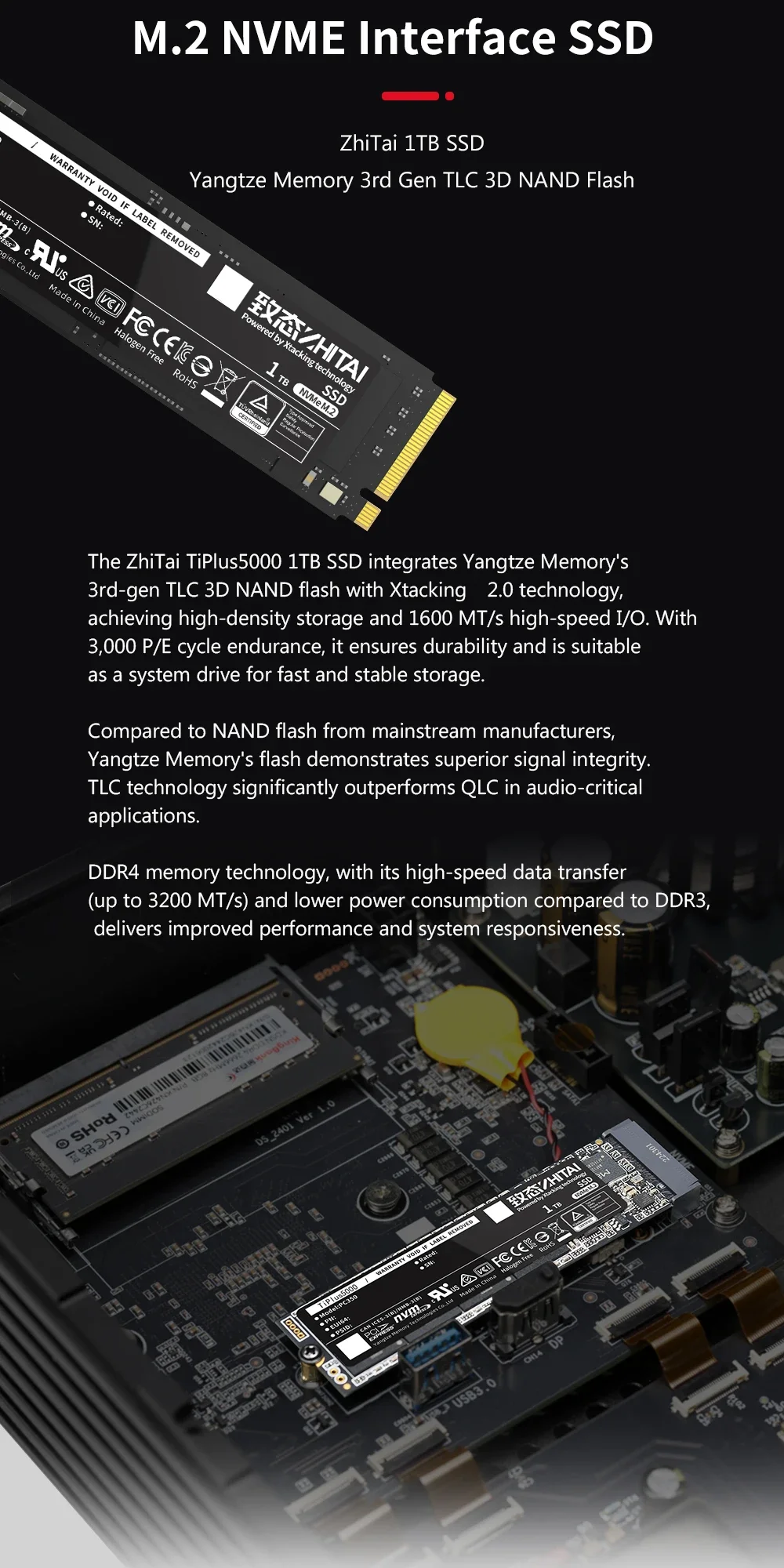

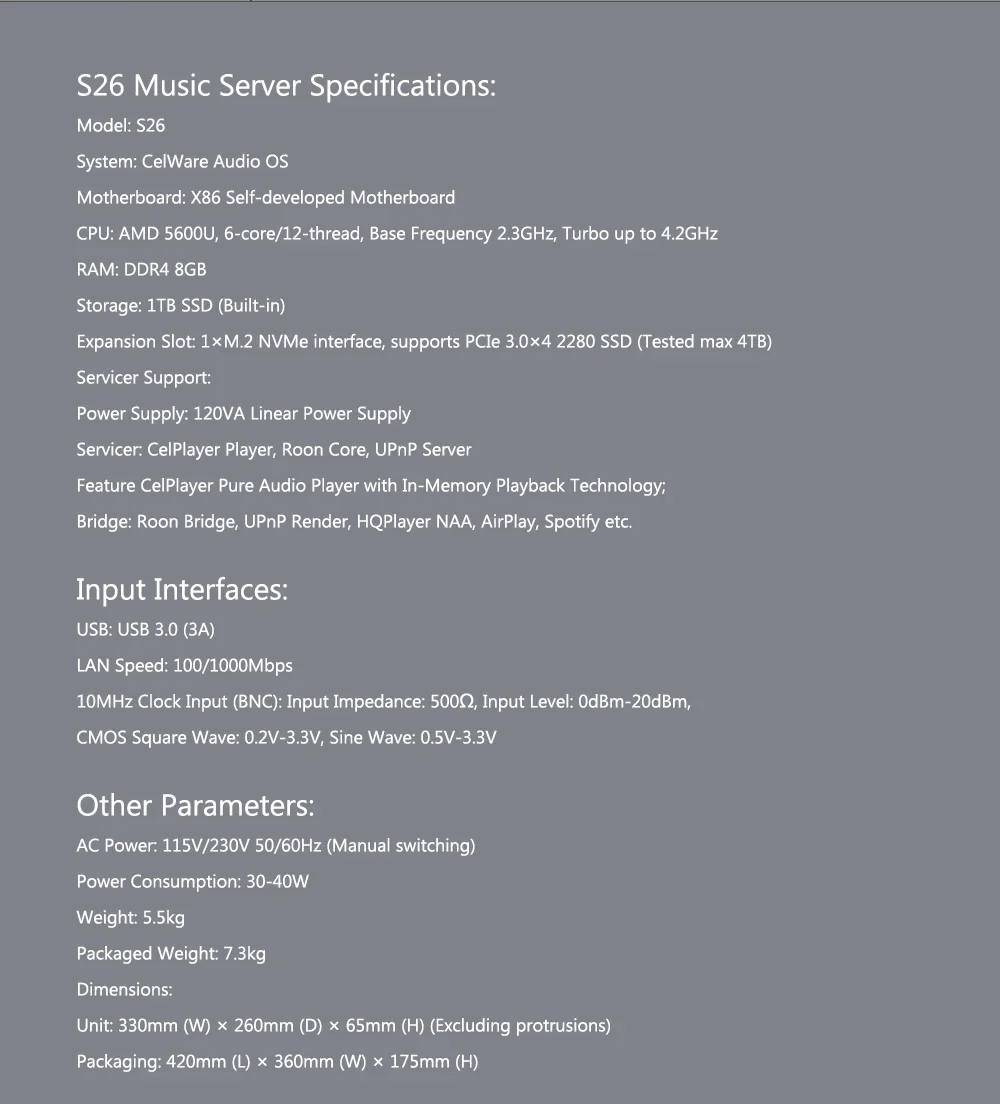

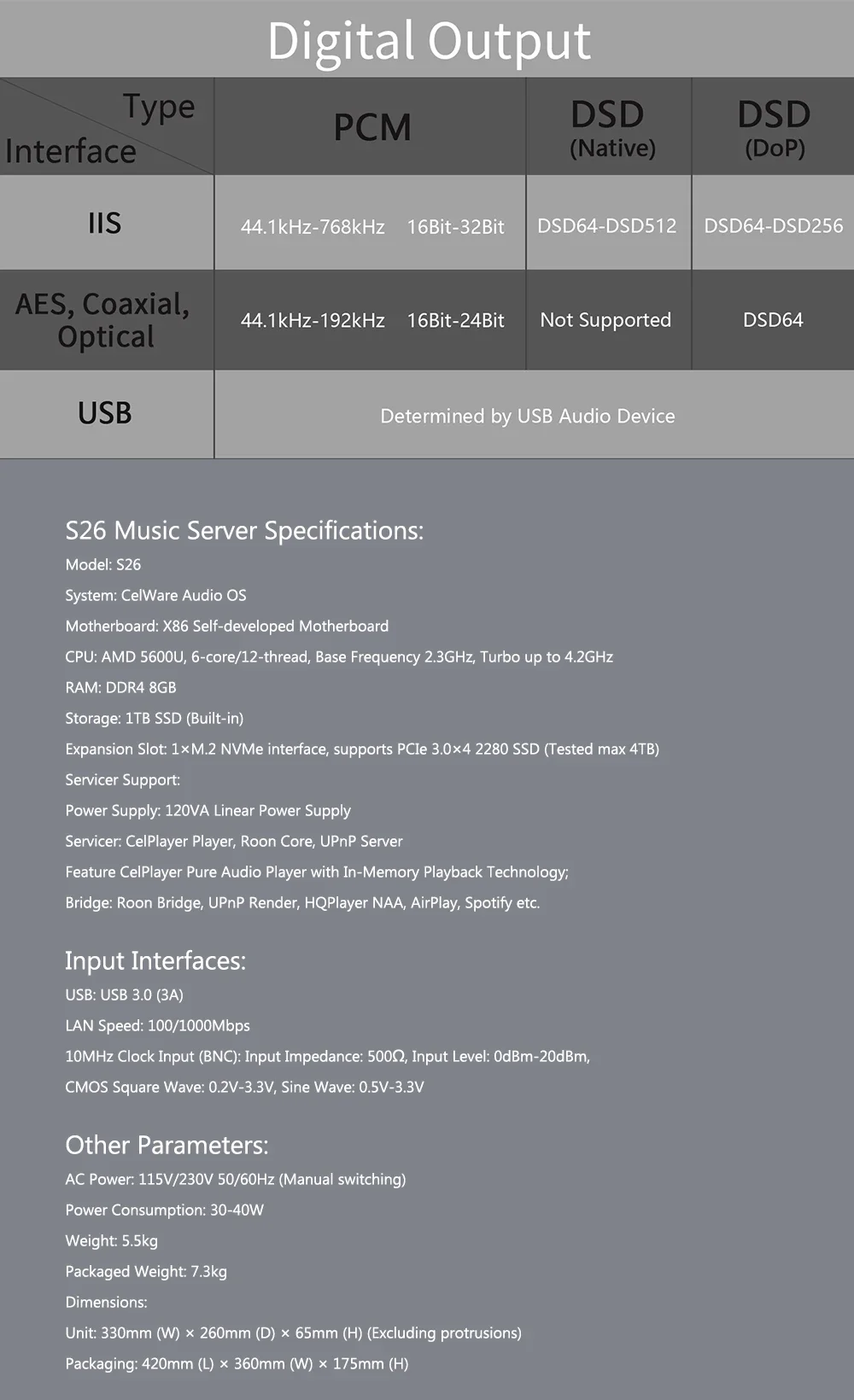

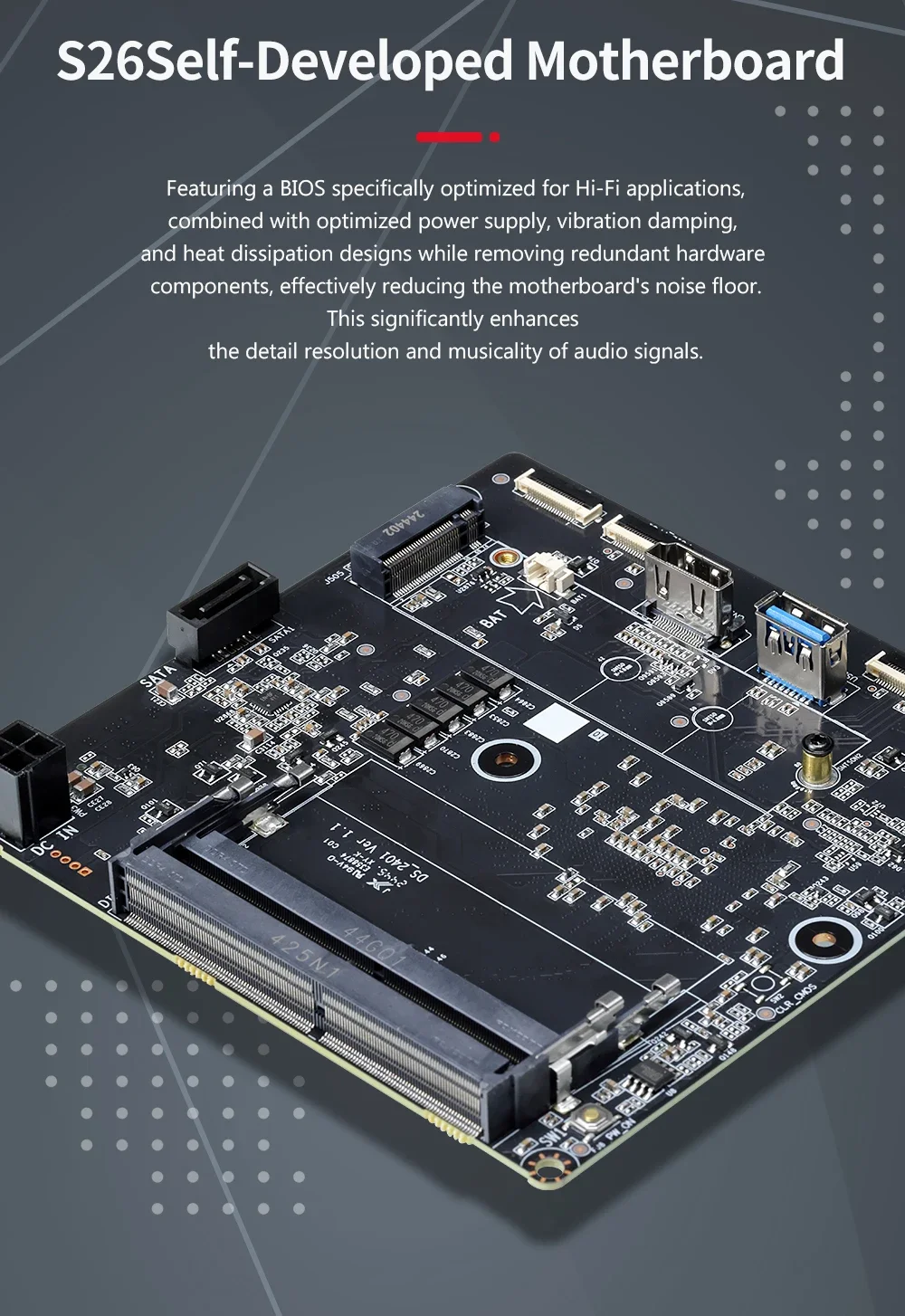

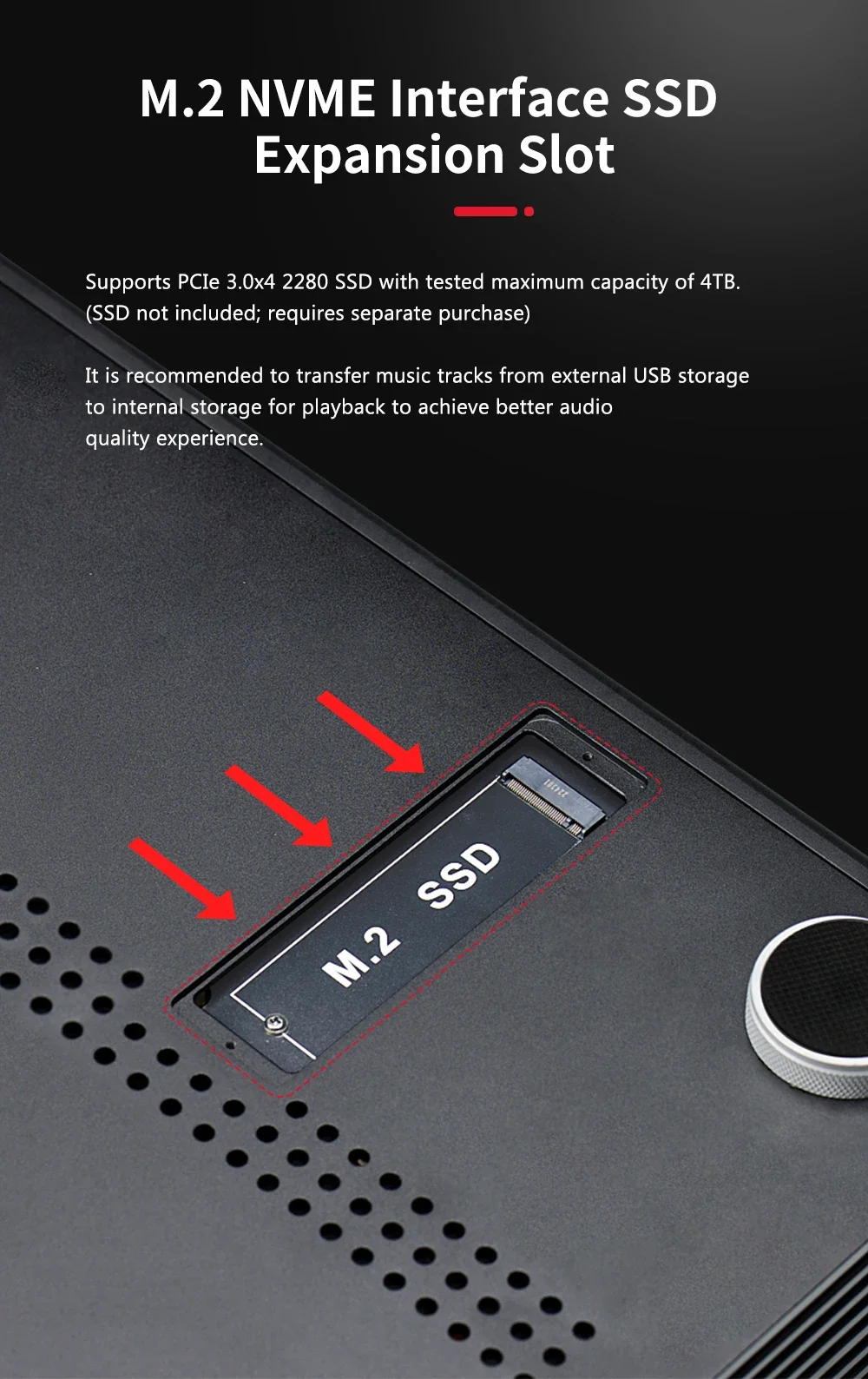

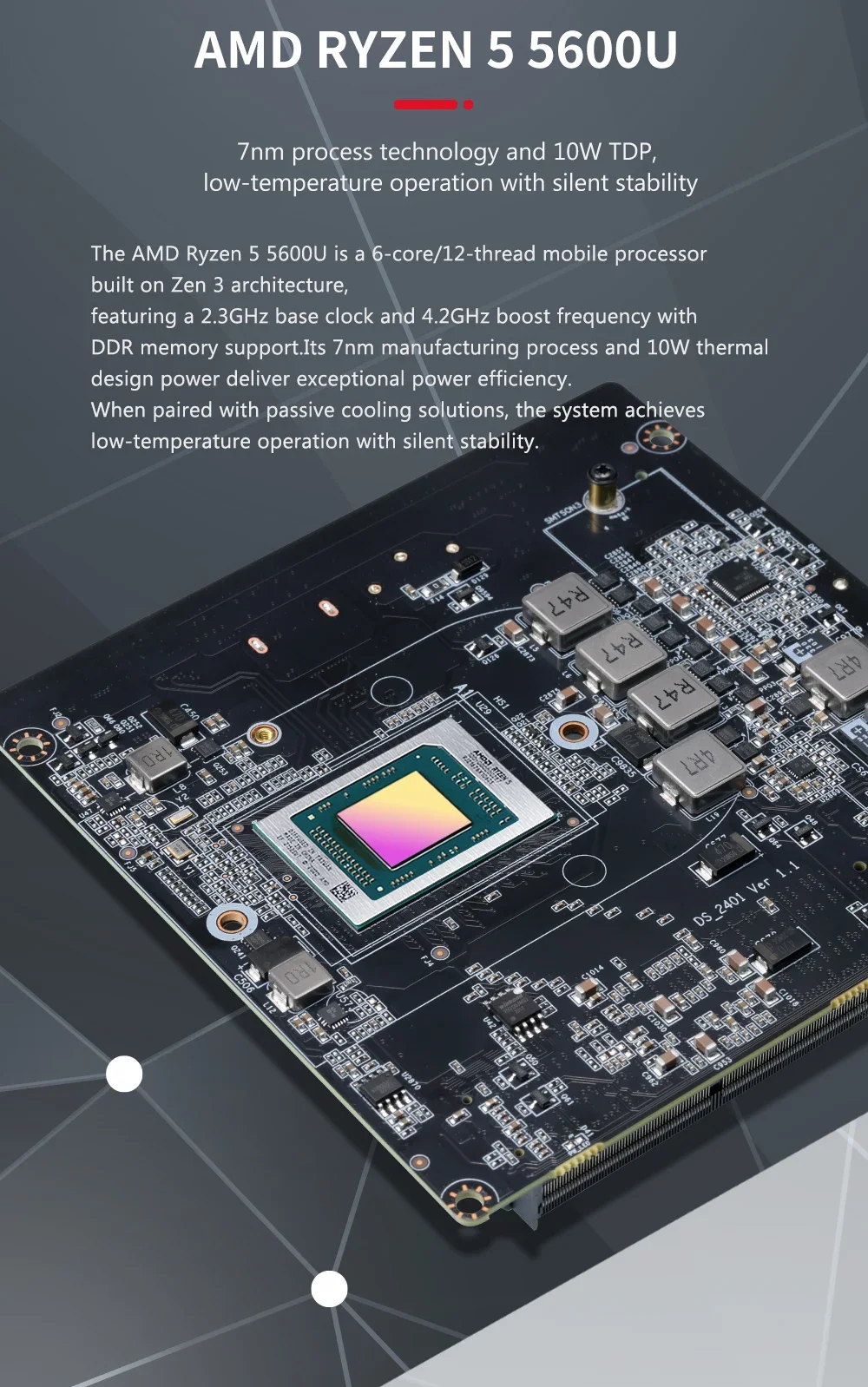

SPECIFICATIONS Model: S26 System: CelWare Audio OS Motherboard: X86 Self-developed Motherboard CPU: AMD 5600U, 6-core/12-thread, Base Frequency 2.3GHz, Turbo up to 4.2GHz RAM: DDR4 8GB Storage: 1TB SSD (Built-in) Expansion Slot: 1xM.2 NVMe interface, supports PCle 3.0x4 2280 SSD (Tested max 4TB)

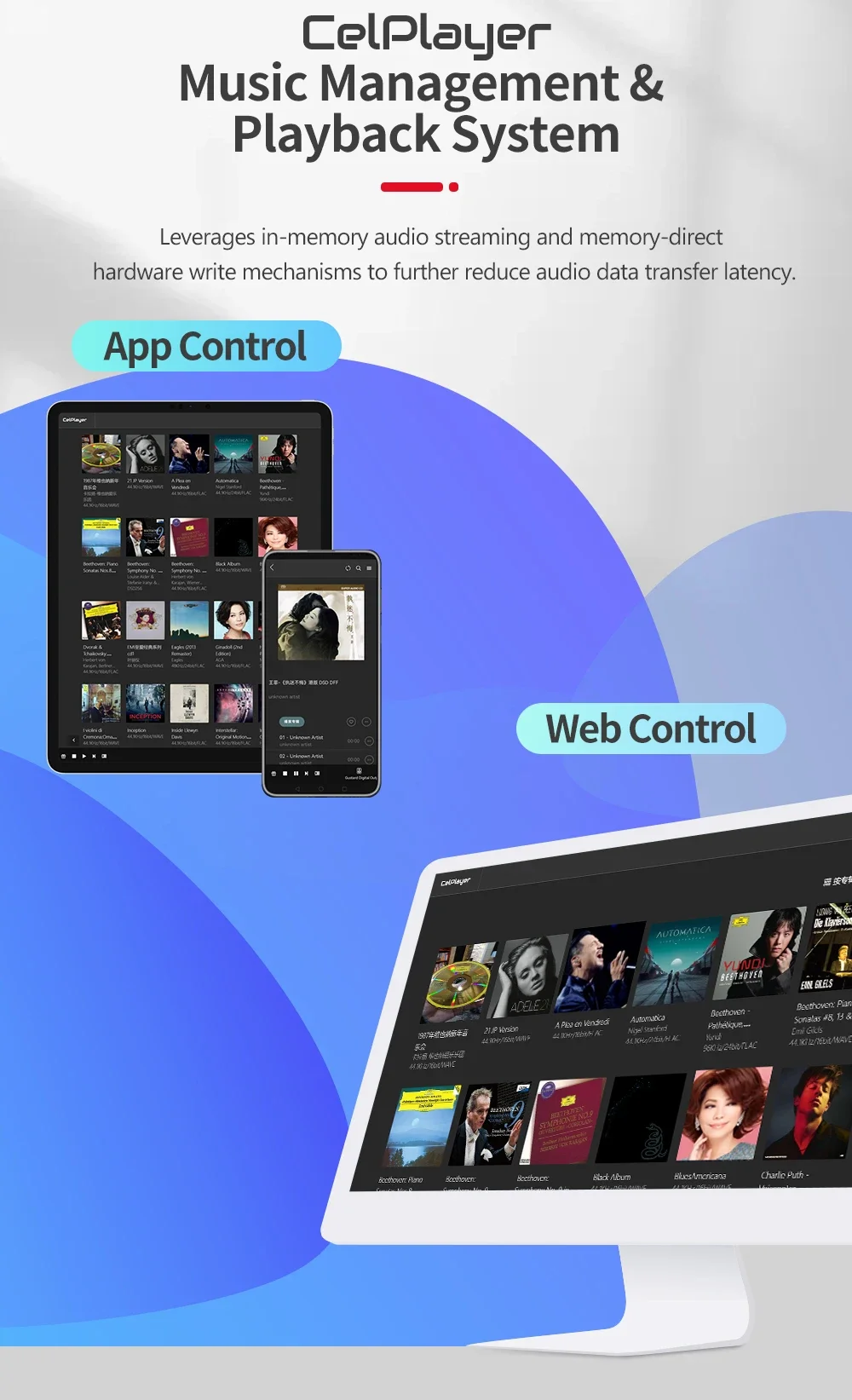

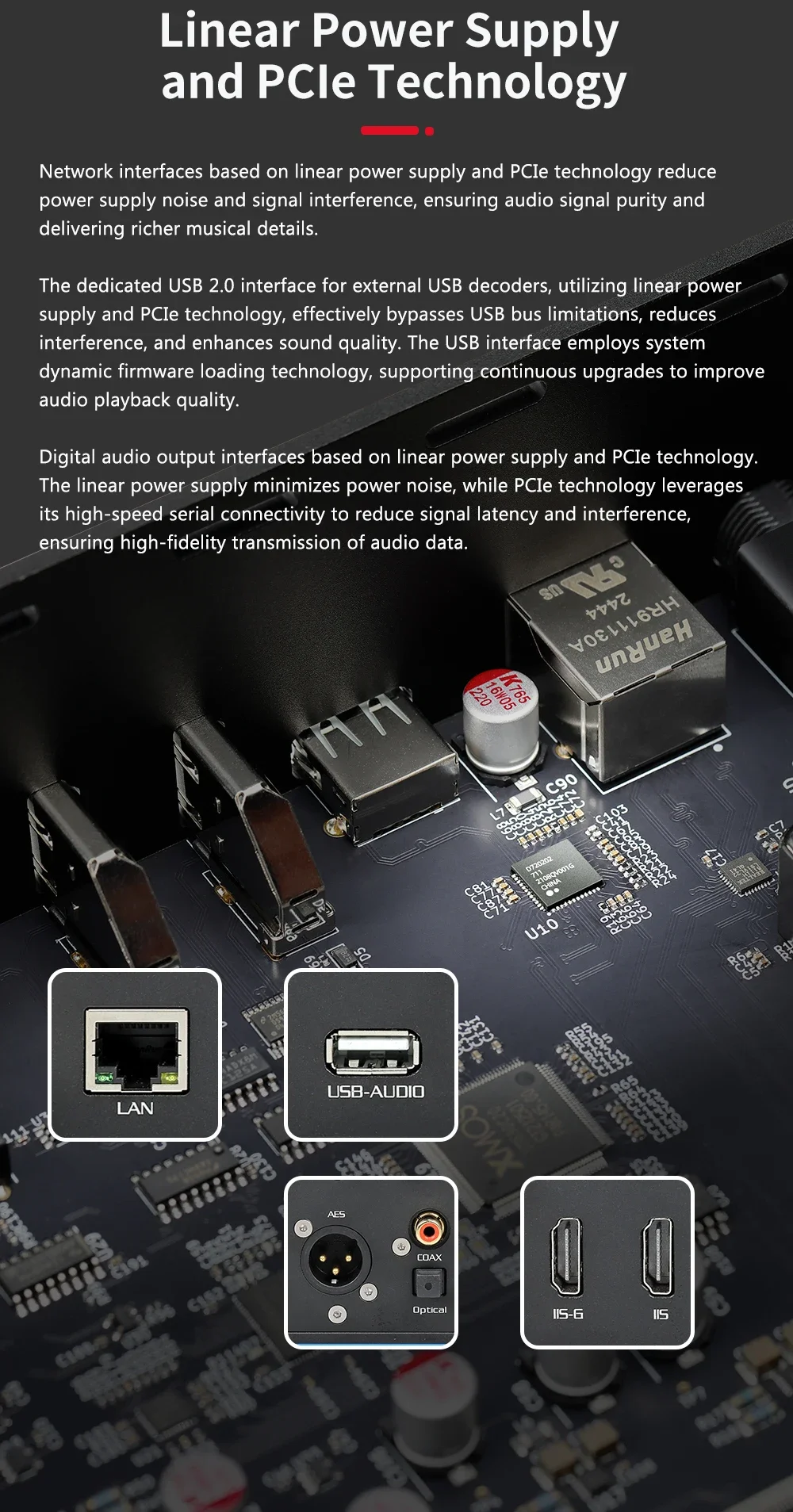

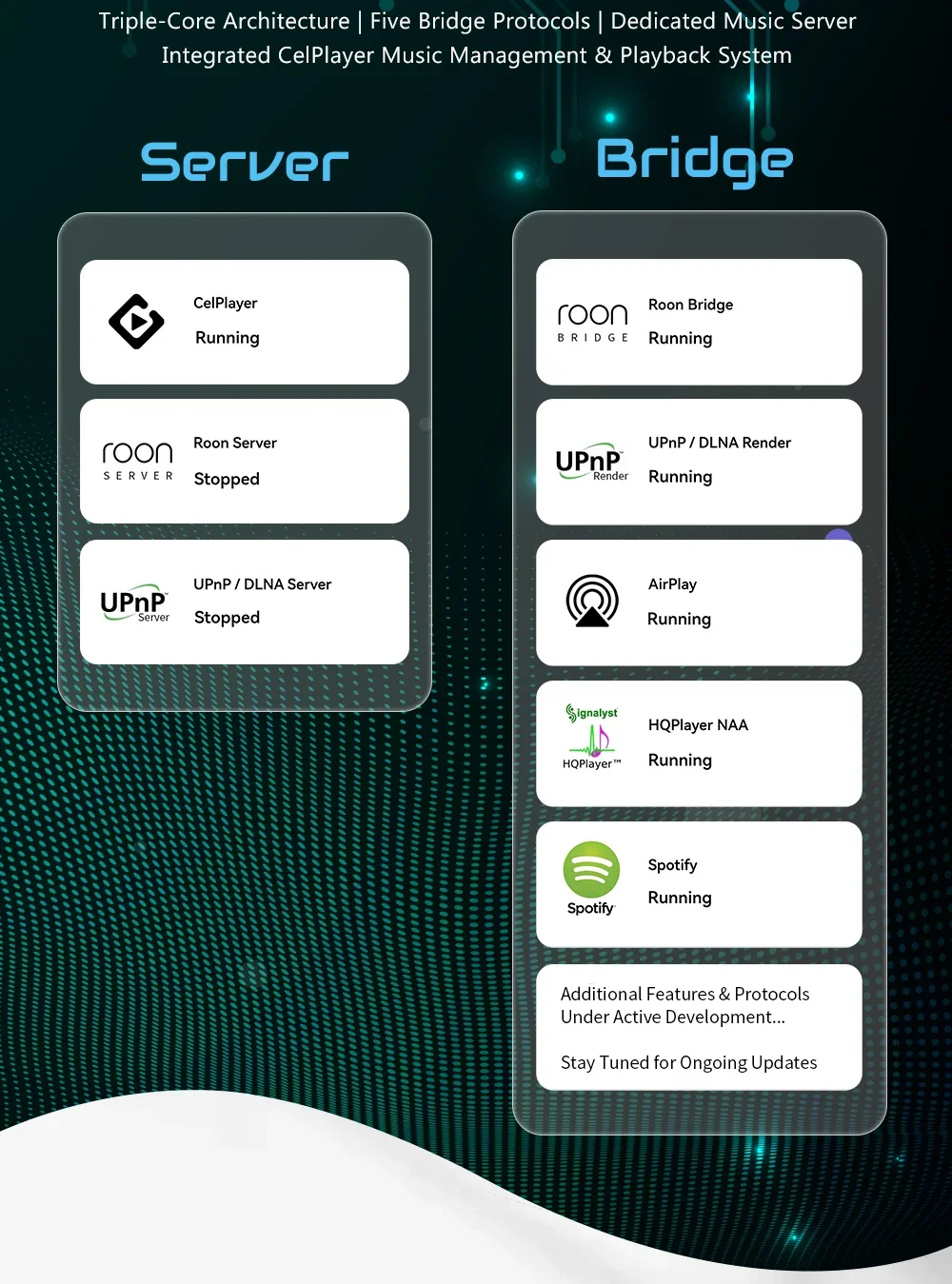

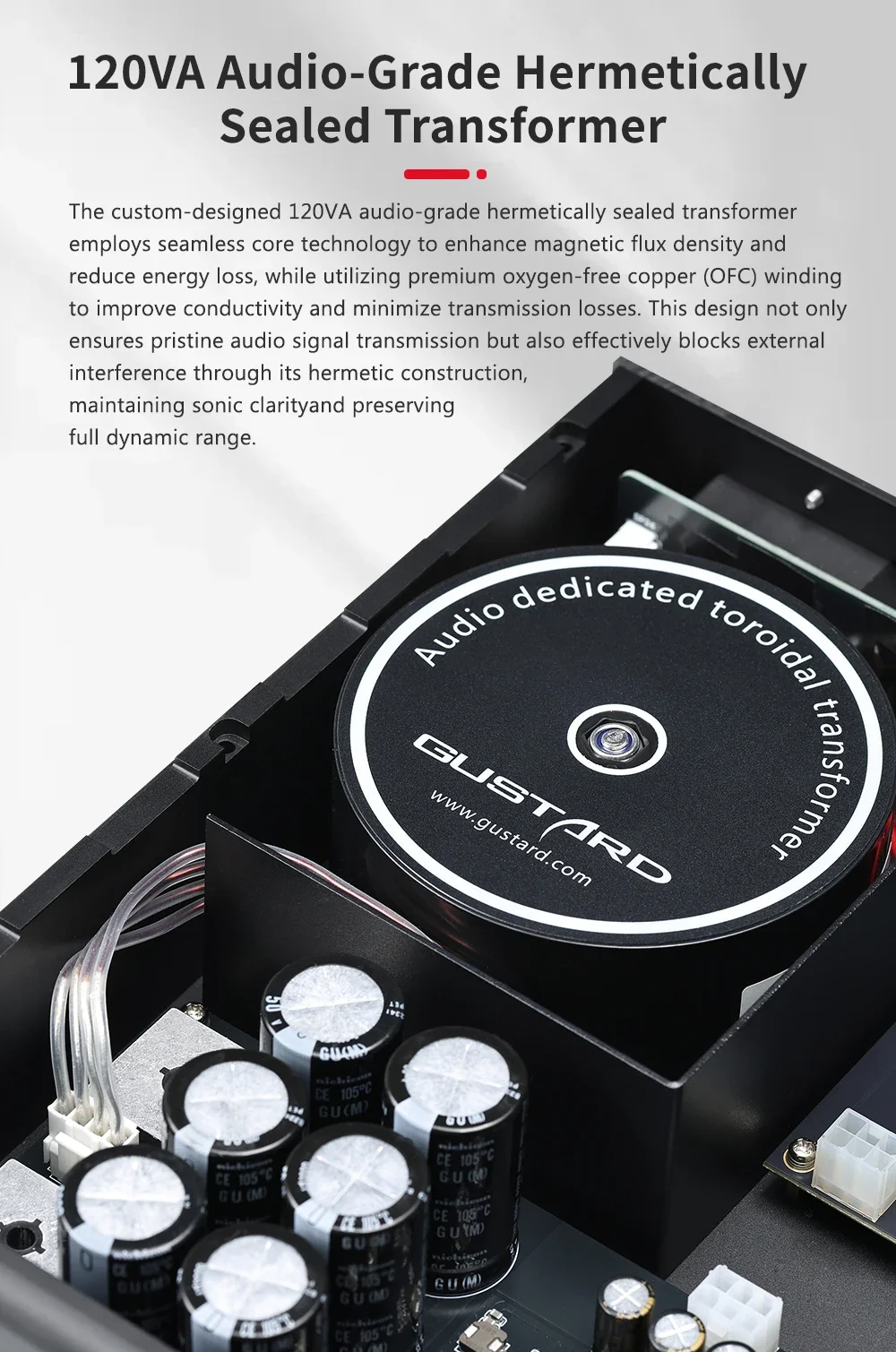

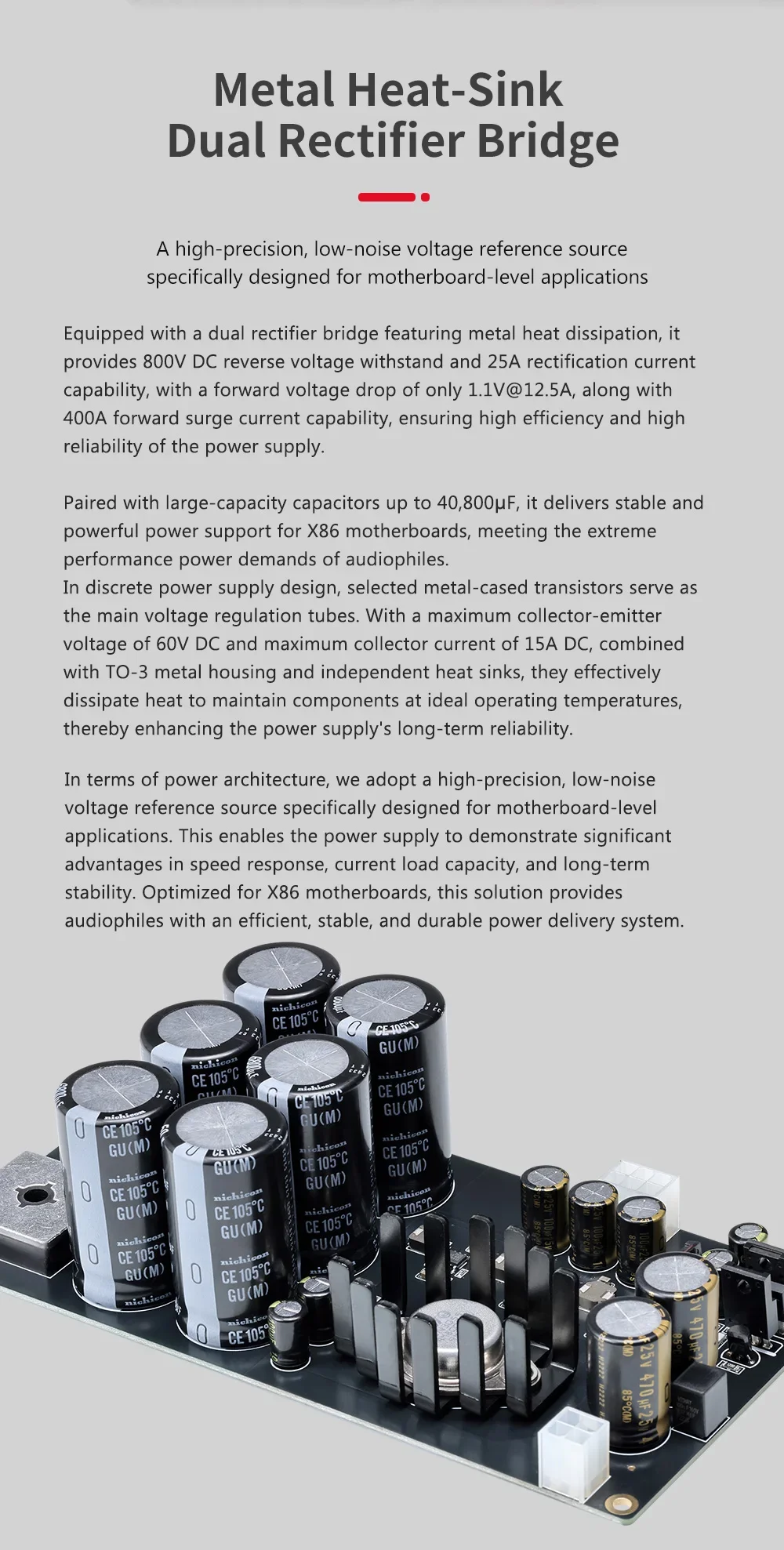

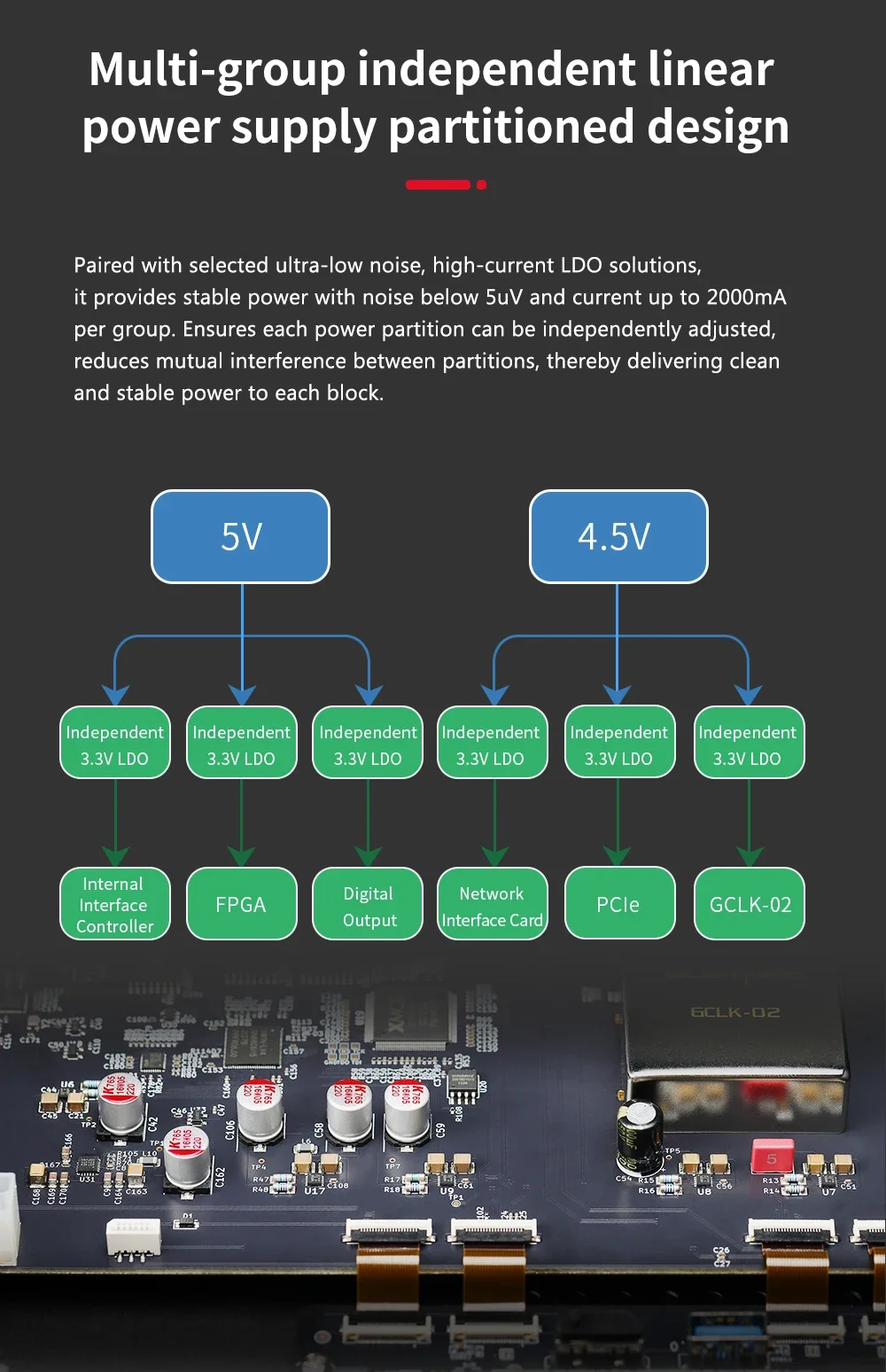

Servicer Support: Power Supply: 120VA Linear Power Supply Servicer: CelPlayer Player, Roon Core, UPnP Server Feature CelPlayer Pure Audio Player with In-Memory Playback Technology Bridge: Roon Bridge, UPnP Render, HQPlayer NAA, AirPlay, Spotify etc.

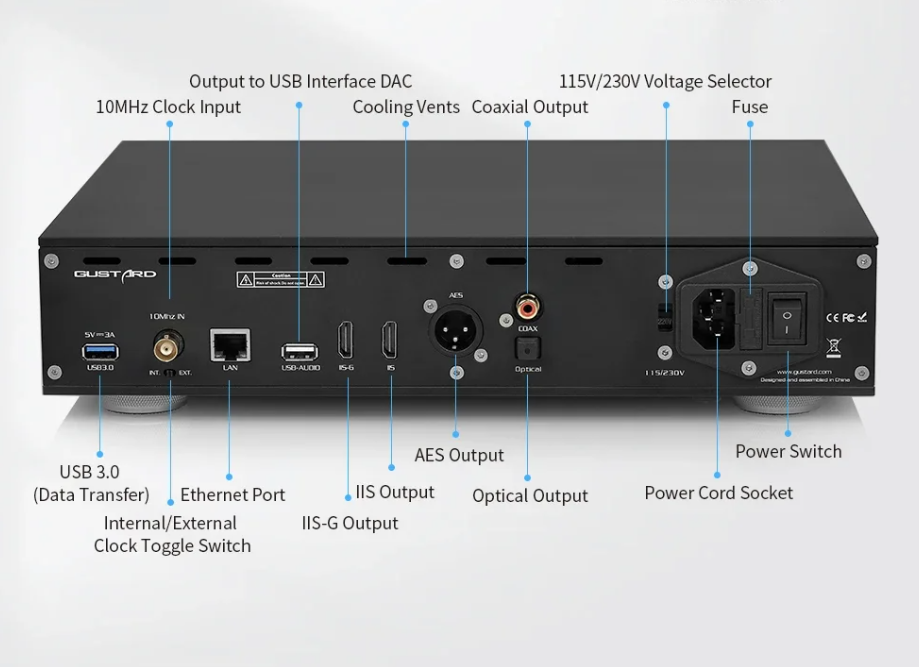

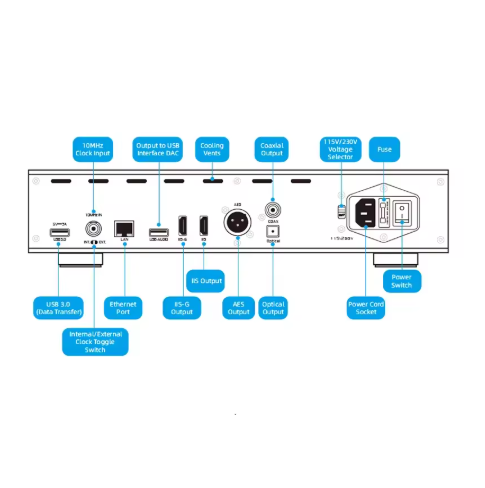

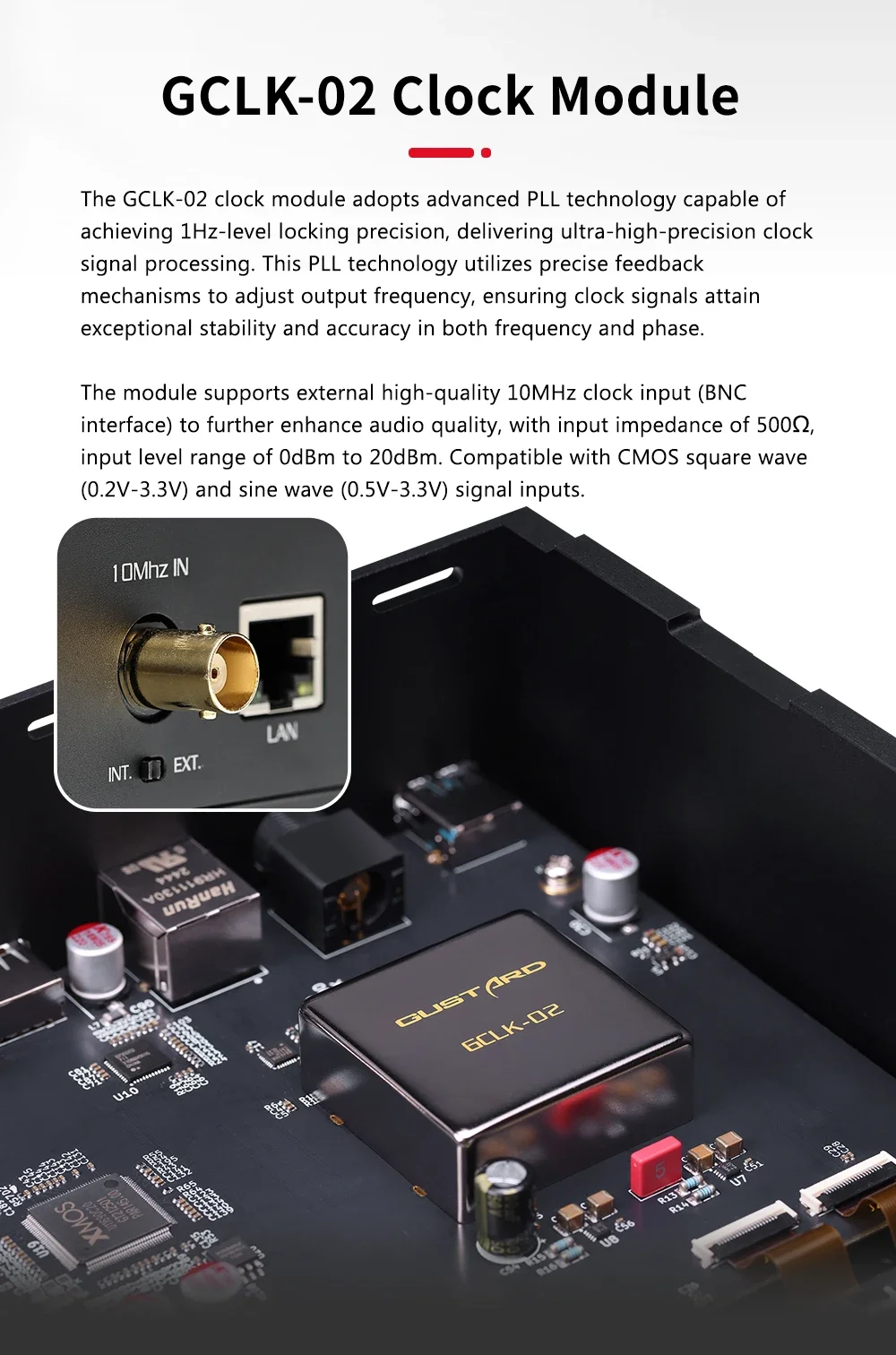

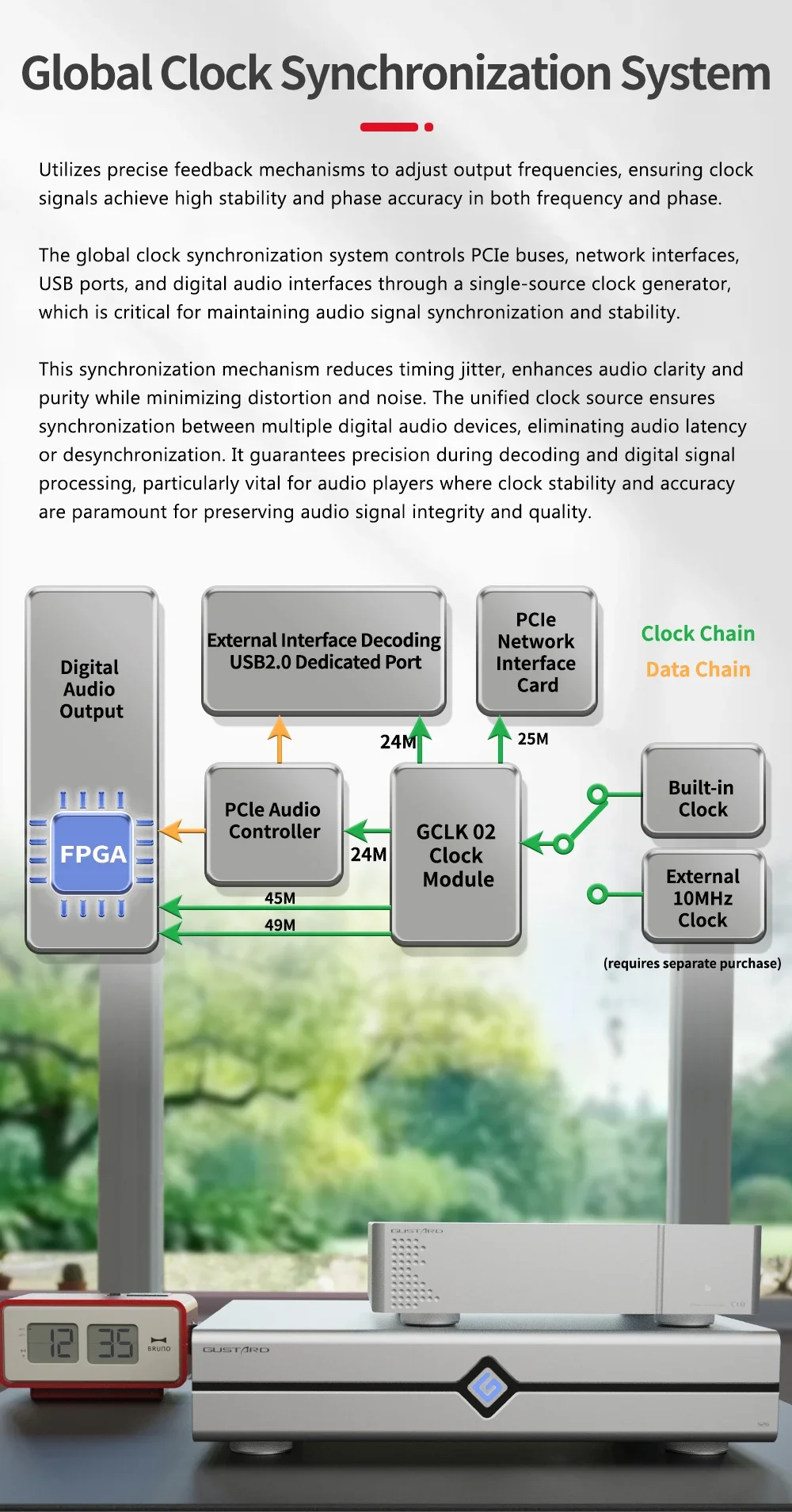

Input Interfaces: USB: USB 3.0 (3A) LAN Speed: 100/1000Mbps 10MHz Clock Input (BNC): Input Impedance: 500Ω Input Level: 0dBm-20dBm CMOS Square Wave: 0.2V-3.3V Sine Wave: 0.5V-3.3V

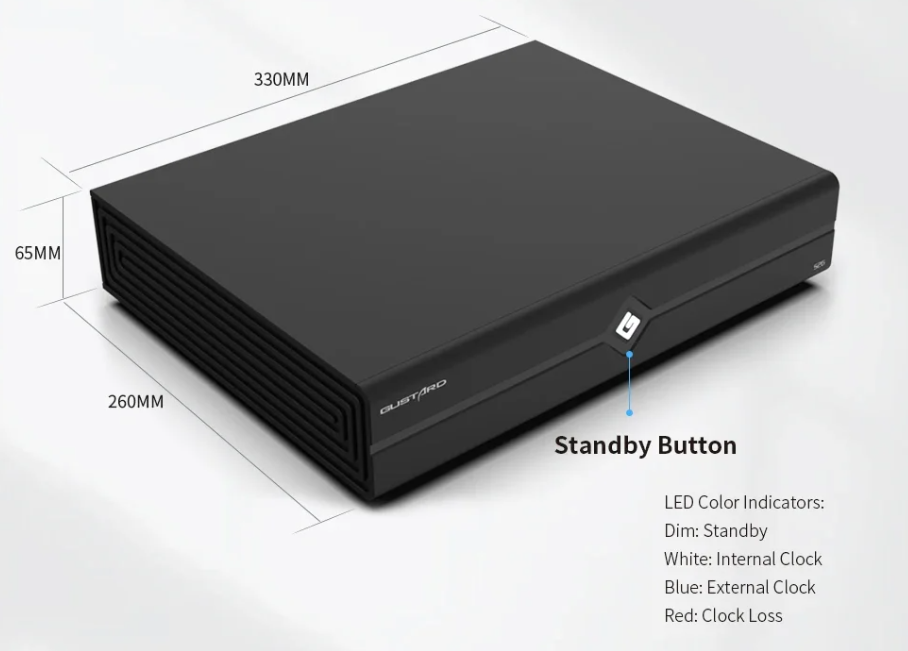

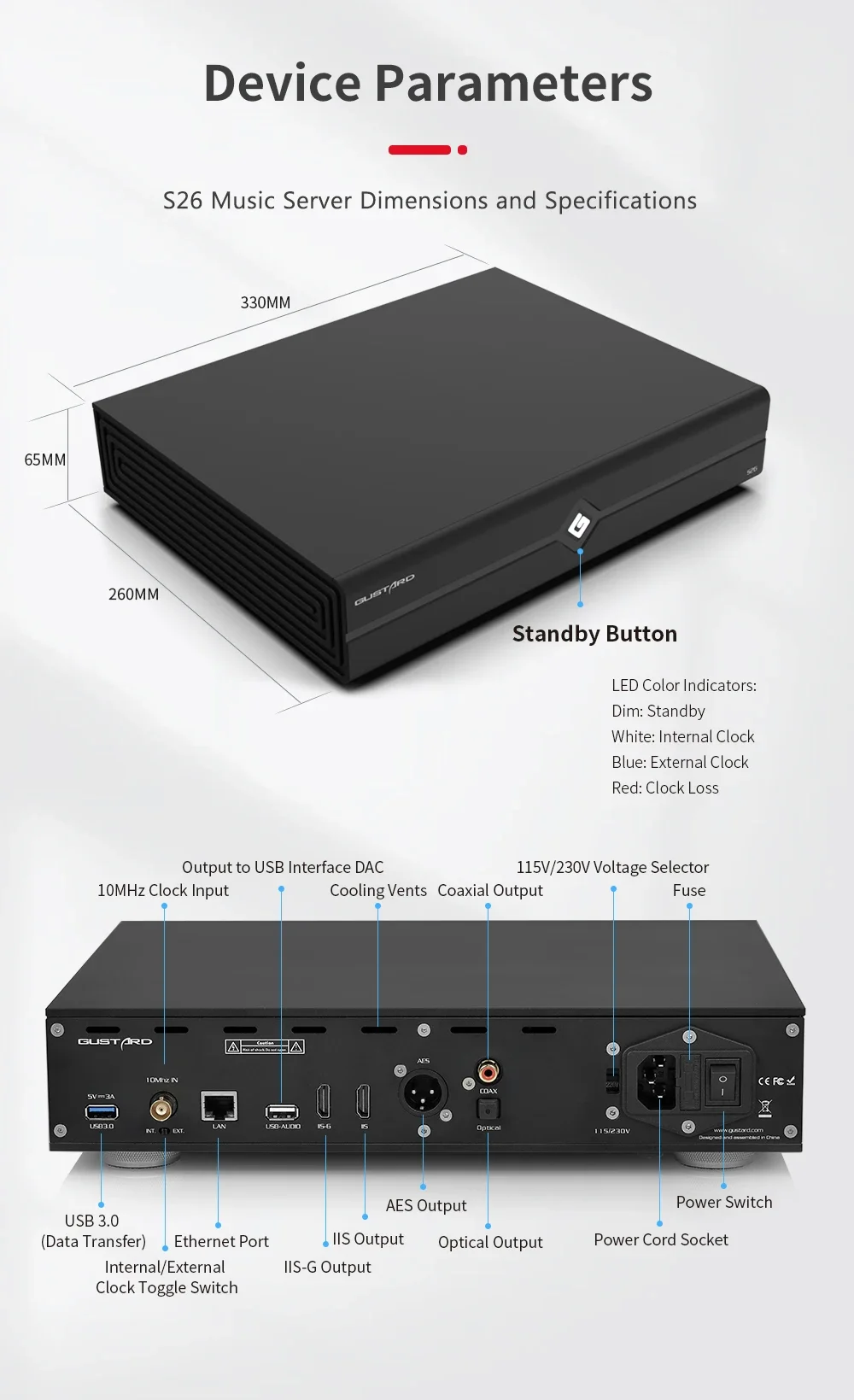

Other Parameters: AC Power: 115V/230V 50/60Hz (Manual switching) Power Consumption: 30-40W Weight 5.5kg Packaged Weight: 7.3kg Dimensions: Unit: 330mm (W) x 260mm (D) x 65mm (H) (Excluding protrusions) Packaging: 420mm (L)x 360mm (W) x 175mm (H)
