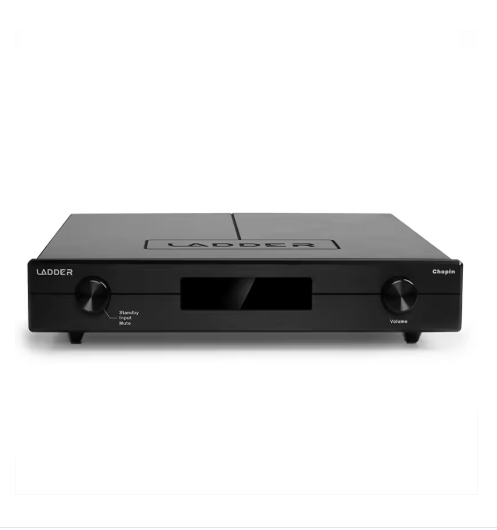

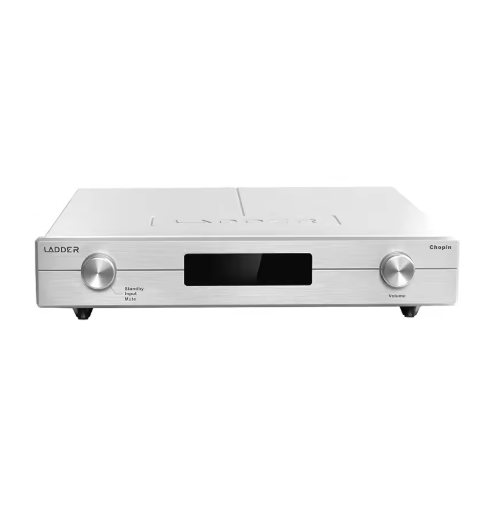

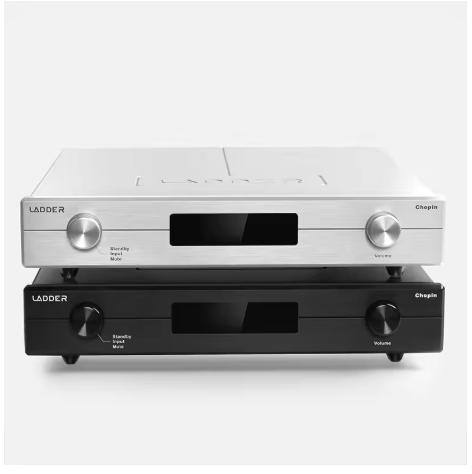

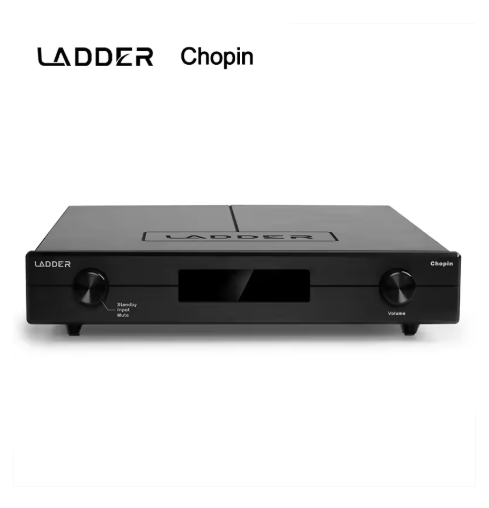

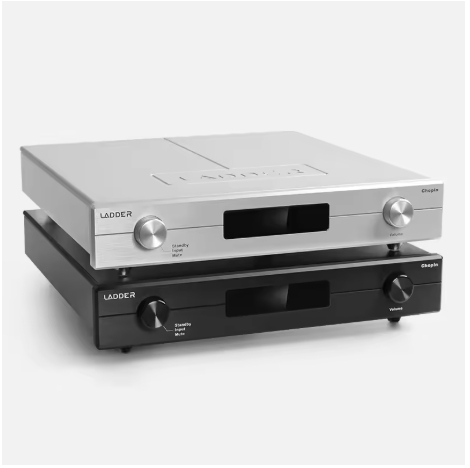

LADDER Chopin Fully Balanced HiFi Preamplifier R-2R Structure Stable Output Amplifier RCA XLR

Product Overview

Product Name:Chopin

Product Material:Aluminum Alloy

Appearance Color:Silver / Black

Net Weight:6.5kg

Gross Weight:9.7kg

Power:1W (ldle), 20w (Operational)

Technical Highlights: Pure Class-A, True Balanced, Fully Discrete Line Stage 60 Steps

Microprocessor Controlled Relay Based Stepped Attenuator Precision

Matched Resistors & Components with Perfect Channel Balance

And Low Distortion Remote Controlled.

Dimensions:

320mmX330mmX60mm

450mmX380mmX160mm

Description:

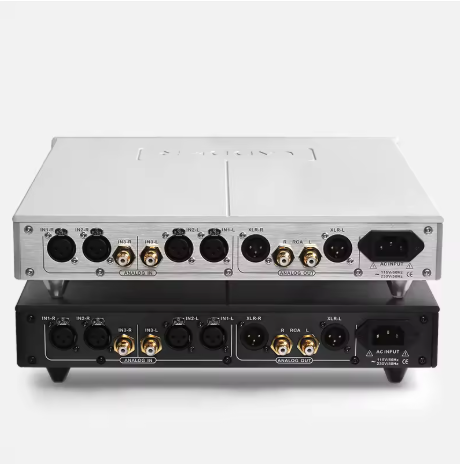

Input:IN1-XLR IN2-XLR IN3-RCA

Input impedance: Single-Ended 12.2K Ohms Balanced - 60K Ohms

Output: RCA at 2.0Vrms XLR at 4.0Vrms

Output lmpedance:Single-Ended 200 Ohms Balanced - 400 Ohms

Gain:Unity Gain,0dB

AC Power Requirement:100-240VAC，50/60Hz(Worldwide Voltage)

Frequency Response: 10-80k(-0.3dB)

THD+N:0.00%

S/N Ratio:120dB

Dynamic Range>121dB

Stereo Crosstalk:-110dB

Warranty:12months
