D5 uses one pair of large pipes D5Pro uses 3 pairs of large tubes to increase thrust, the rest are exactly the same
D5 R&D process
The first generation D5 pure rear stage was launched in 2015
Launched D5 merger machine in 2017
In 2021, the D5PRO merger machine was launched, which increased the number of power tubes per channel from 1 pair to 3 pairs in parallel
Line characteristics
Round Moon Bending Knife "Da Xiao Wu Large Loop Feedback Amplifier Circuit
Warm, soft, comfortable, and pleasing to the ear, this is an amplifier suitable for sitting down and slowly listening to music. The sound is quite smooth, open, and natural, without any noise, which is quite pleasant to listen to. In terms of bass, the volume and depth are both good
High damping coefficient, can control any speaker freely because it is a feedback amplifier without a large loop, with first-class control power, worth a try
MBL preamplifier circuit, powered by independent parallel stabilized power supply

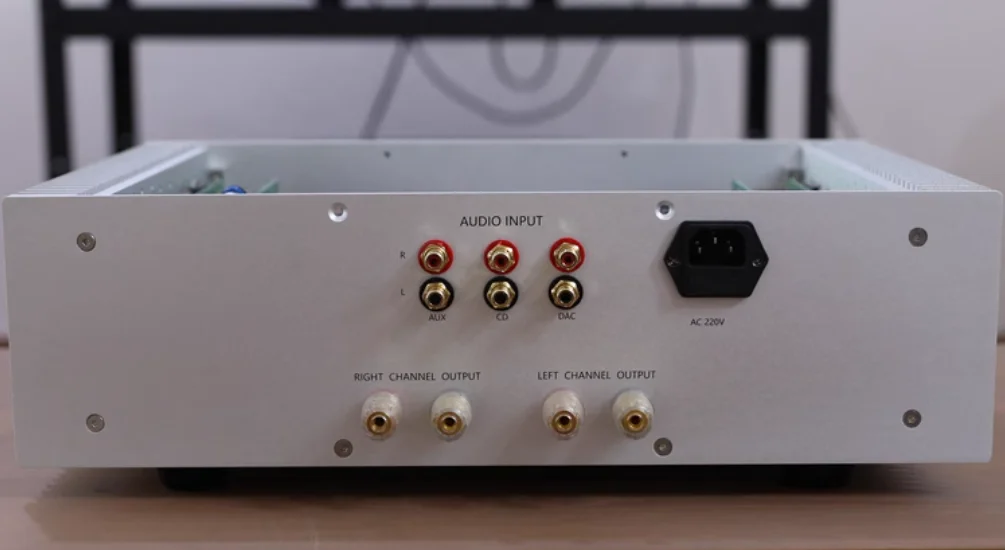

3-channel RCA signal input selection
Production materials

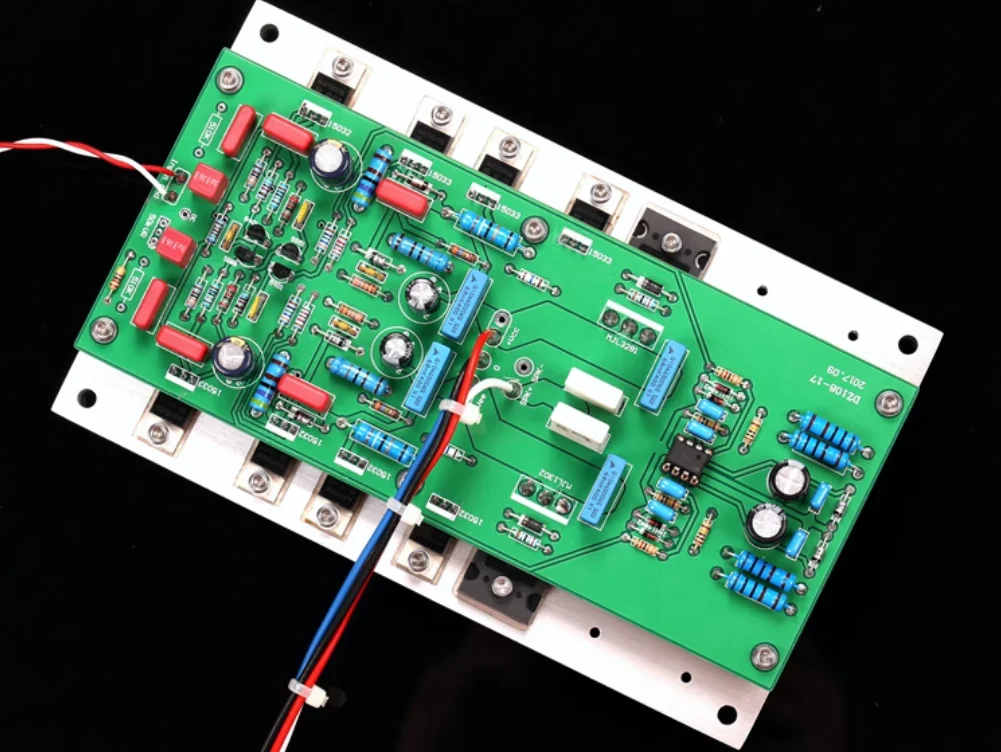

D5PRO adopts 6 pairs per channel and 3 pairs of precision test pairing ON MJL3281/1302 high output current capability
All small signal lines and high current lines inside the machine are made of Taiwanese PTFE oxygen free copper wire
CMC pure copper RCA terminal
Adopting a 500w high-end Nippon Steel transformer
12 units of 10000uF fever grade electrolytic ELNA for AUDIO
The rear stage adopts a dual mono design, with separate power supply for the left and right channels, resulting in extremely high separation
Equipped with soft startup and comprehensive horn protection circuit

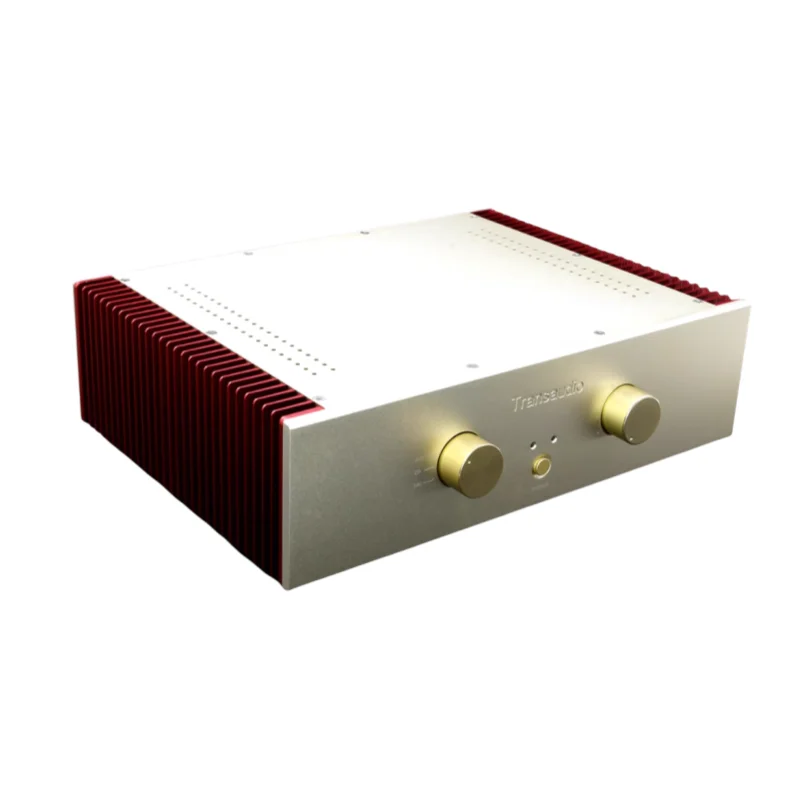

CNC machining of all aluminum high-precision chassis 430 * 330 * 130mm
The front stage adopts a rear mounted ALPS27 potentiometer
The front stage uses gallbladder flavor fever single transport OPA604 for amplification
AP test parameters with 8 ohms and 800 watts load test data per channel
Output effective value: 30.68Vrms
Channel gain: 37.13dB 70.2 times
Signal to noise ratio: 108.5dB
Dynamic range: 108.5dB
THD distortion: 0.0033%
THD+N distortion: 0.010%
Frequency response bandwidth: ± 0.046dB
weight: about 17kg
Static power consumption: D5 85W D5PRO 90W
Output power: 120W * 2/8 ohms; 240W * 2/4 Euro
Easy Drive Dashi Speaker
