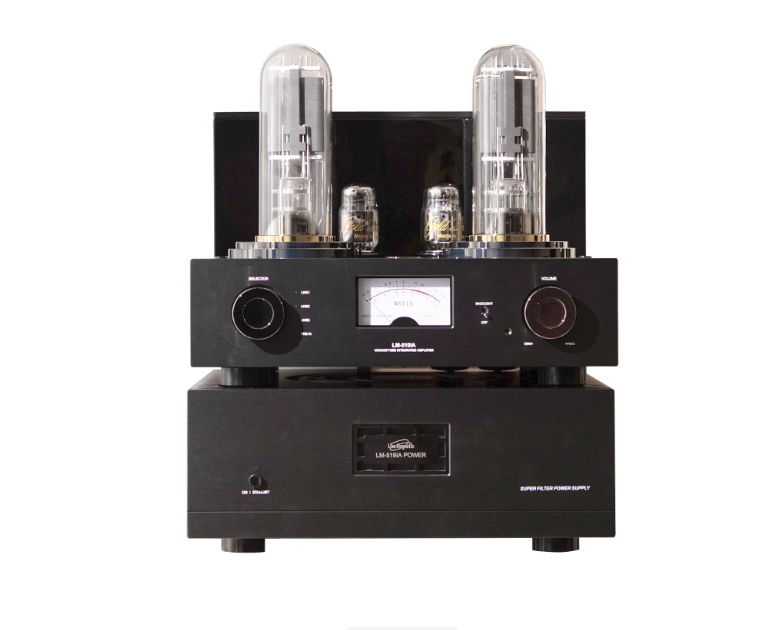

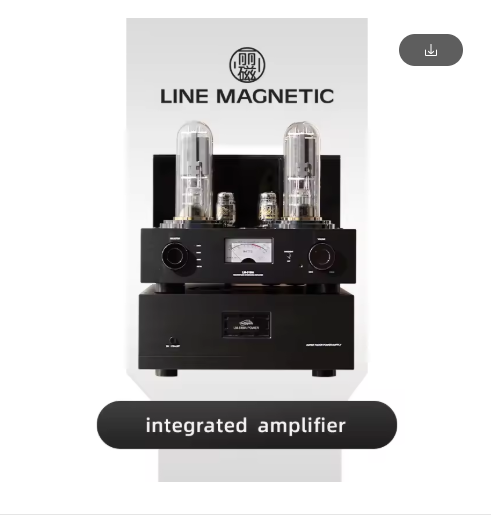

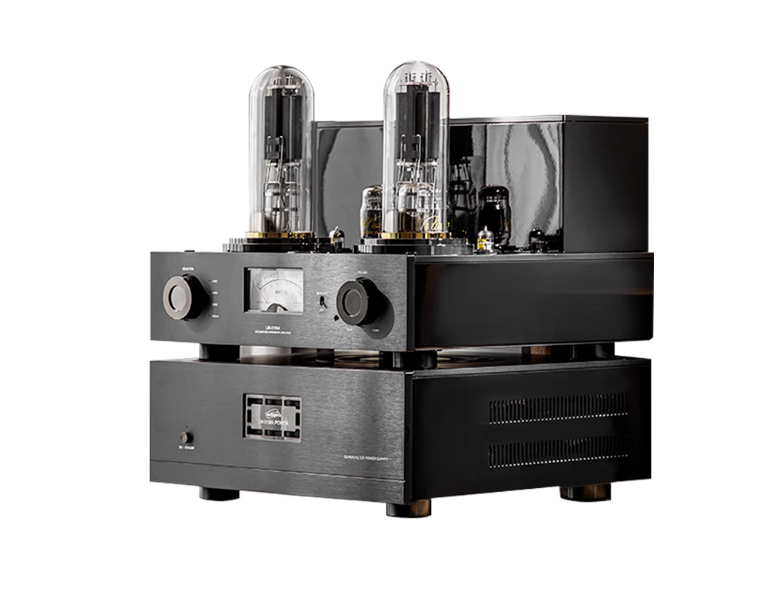

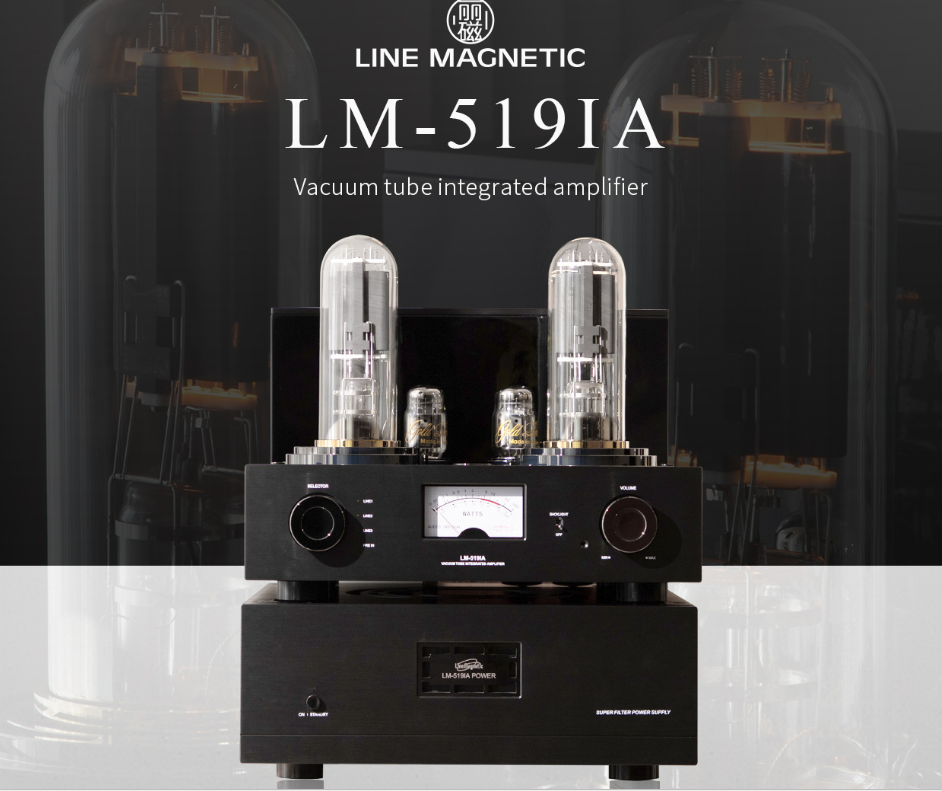

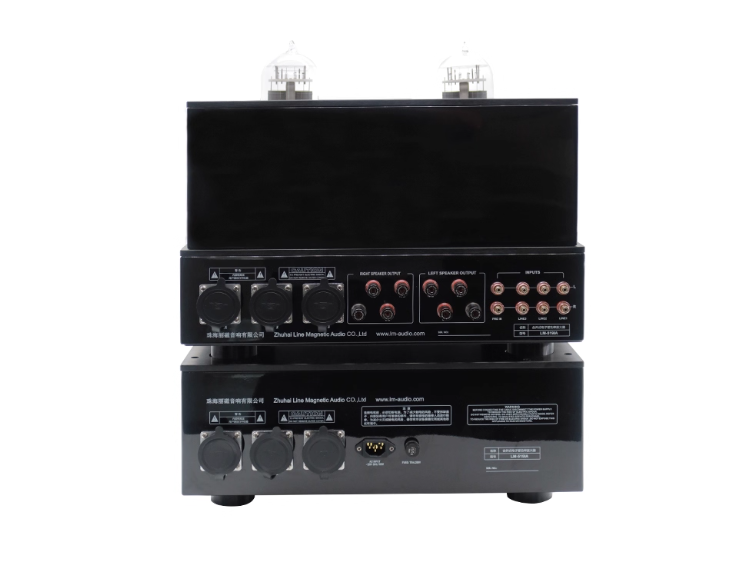

LINE MAGNETIC LM-519IA Vacuum Tube Integrated Amplifier 212 tube 50W+50W
Product parameter
LM-519IA
Using electronic tubes: 212 * 2 KT88*2、12AX7*2
Harmonic distortion: 1% (1Hz) Signal to noise ratio: 86dB
Input sensitivity: 150mV (merged) 500mV (pure)
Whole machine frequency response: 20Hz~25KHz (± 1dB)
Output impedance: 4 Ω, 8 Ω, 16 Ω
Output power: 50W+50W (single ended Class A working state)
Input impedance: 100k Ω
Power supply voltage:~115V/120V/220V/230V/240V ± 5% (50HZ/60HZ)
Weight: 66KG host, 75KG power supply
Power consumption: 700W
Volume (W × D × H): (500 × 610 × 555) mm3
LR Separation: Merge: -60dB Pure: -82dB
LM-519IA
Using electronic tubes: 212 * 2 KT88*2、12AX7*2
Harmonic distortion: 1% (1Hz) Signal to noise ratio: 86dB
Input sensitivity: 150mV (merged) 500mV (pure)
Whole machine frequency response: 20Hz~25KHz (± 1dB)
Output impedance: 4 Ω, 8 Ω, 16 Ω
Output power: 50W+50W (single ended Class A working state)
Input impedance: 100k Ω
Power supply voltage:~115V/120V/220V/230V/240V ± 5% (50HZ/60HZ)
Weight: 66KG host, 75KG power supply
Power consumption: 700W
Volume (W × D × H): (500 × 610 × 555) mm3
LR Separation: Merge: -60dB Pure: -82dB
