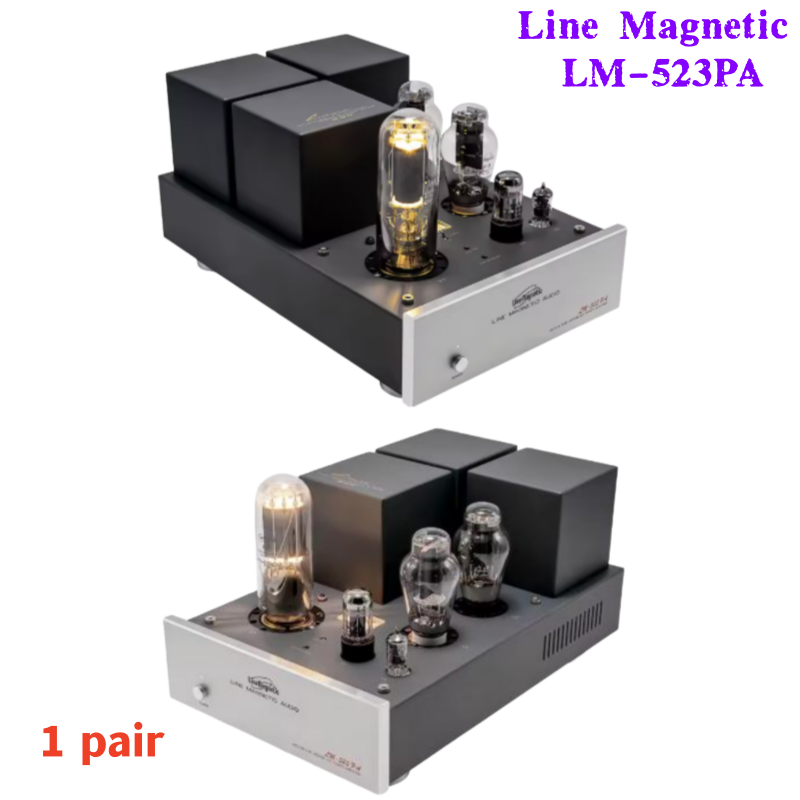

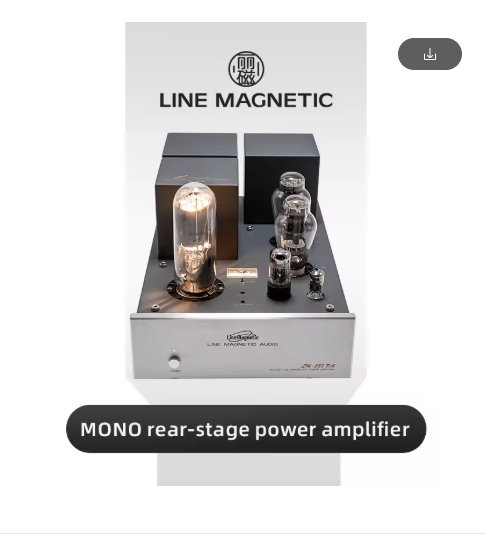

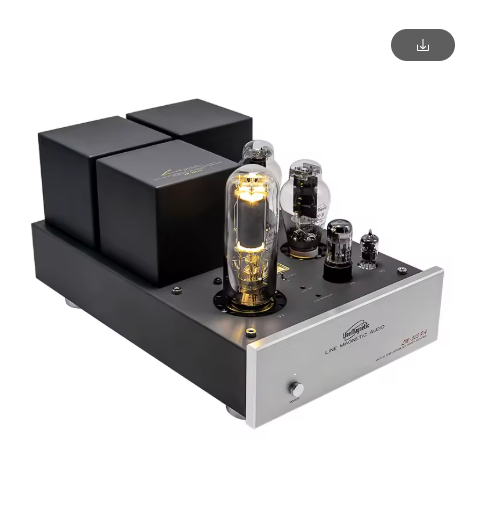

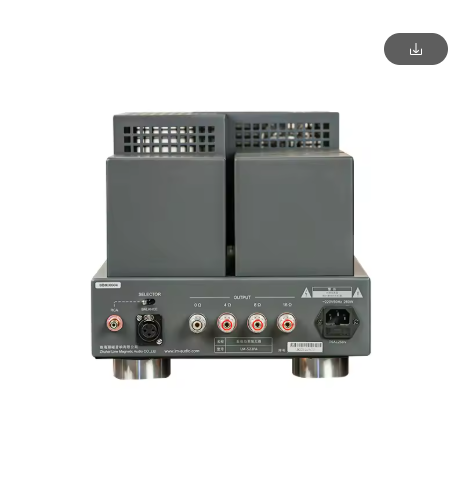

Line Magnetic LM-523PA single-ended Class A 300B 805 Mono-block power amplifier(a pair)
Product parameter
LM-523PA
Use vacuum tubes: ECC82, 6SN7, 274B, 300B, 805
Signal to noise ratio: 87dB
Whole machine frequency response: 20Hz~25KHz (-1.5dB)
Input sensitivity: 800mV rated
Output power: 50W (single ended Class A working state)
Output impedance: 4 Ω, 8 Ω, 16 Ω
Input impedance: 100k Ω
Power supply voltage:~115V/120V/220V/230V/240V ± 5% (50Hz/60Hz)
Weight: approximately 32.8kg
Power consumption: 260W
Volume (W × D × H): (287X485X262) mm3
$5,460.00
