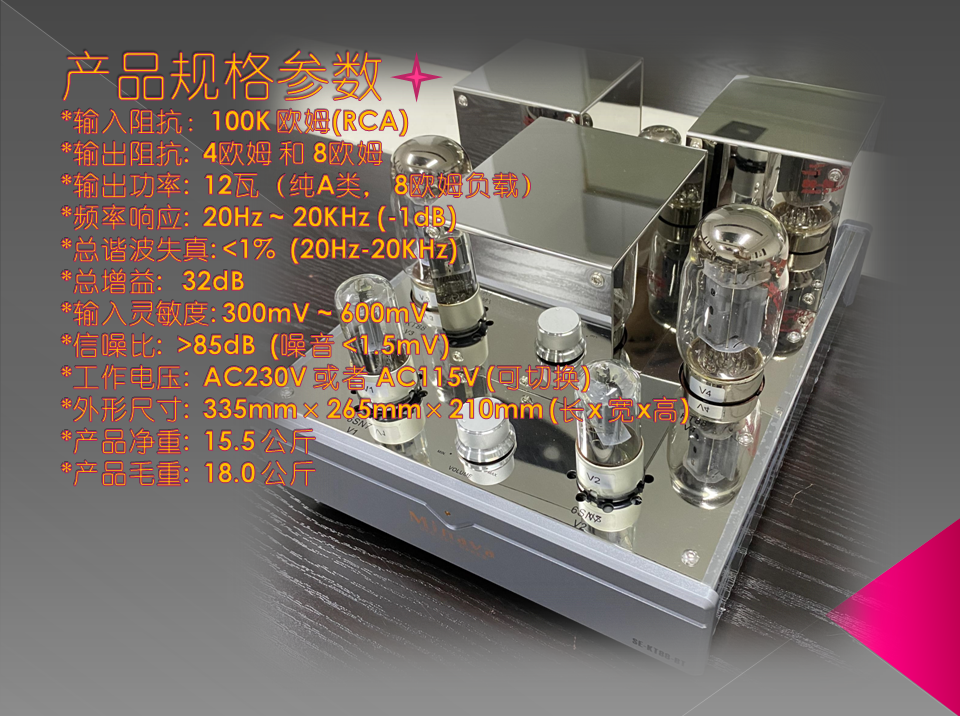

Product Parameters
*Input impedance: 100K ohms (RCA)
*Output impedance: 4 ohms and 8 ohms
*Output power: 12W (pure Class A, 8 Ω load)
*Frequency response: 20Hz~20KHz (-1dB)
*Total harmonic distortion:<1% (20Hz-20KHz)
*Total gain: 32dB
*Input sensitivity: 300mV~600mV
*Signal to noise ratio:>85dB (noise<1.5mV)
*Working voltage: AC230V, AC115V (switchable voltage)
*Dimensions: 335mm x 265mm x 210mm (length x width x height)
Weight approximately: 18 kilograms

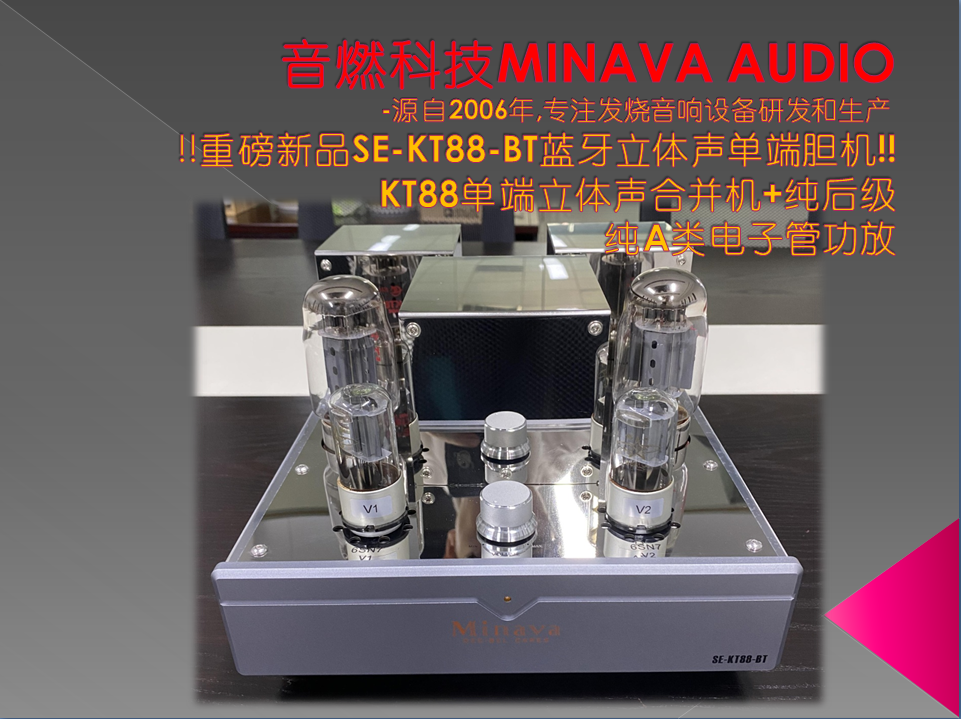

-Since 2006, we have been dedicated to the research and production of audiophile audio equipment!!

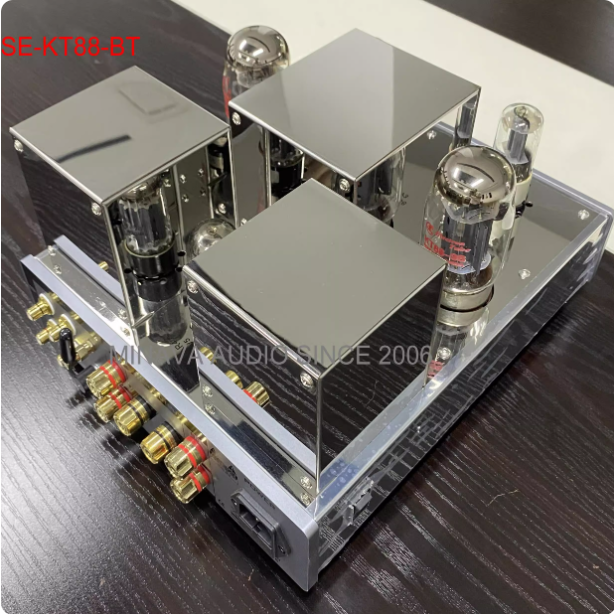

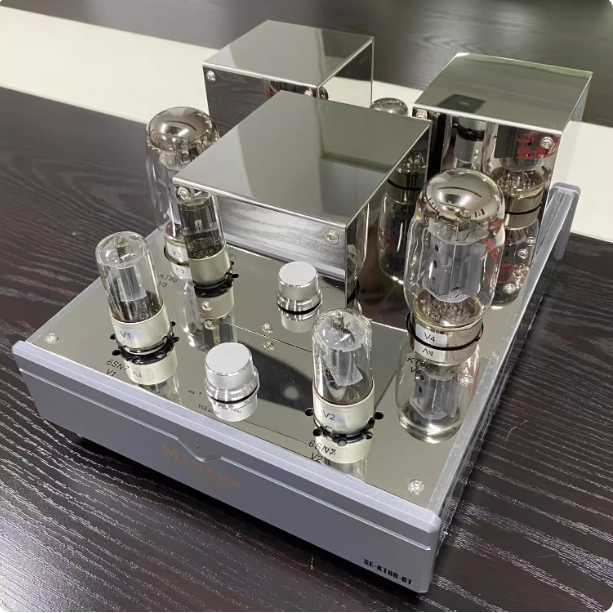

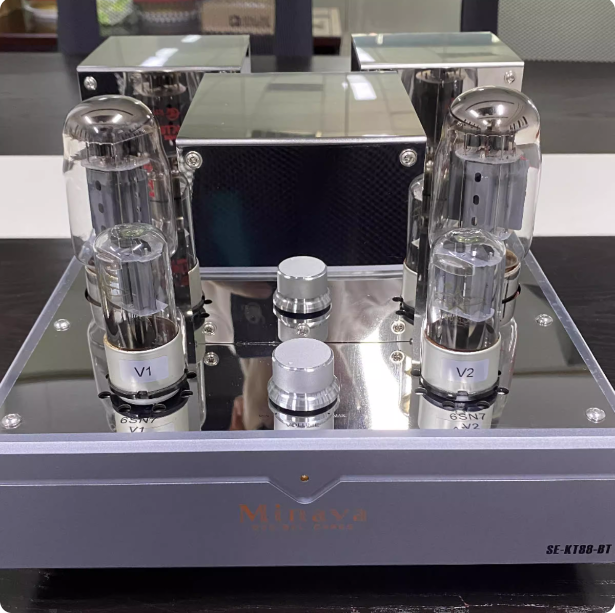

New SE-KT88-BT Bluetooth Stereo Single End Gallbladder Machine!!
KT88 single ended stereo merger+pure rear stage
Pure A-class electronic tube amplifier

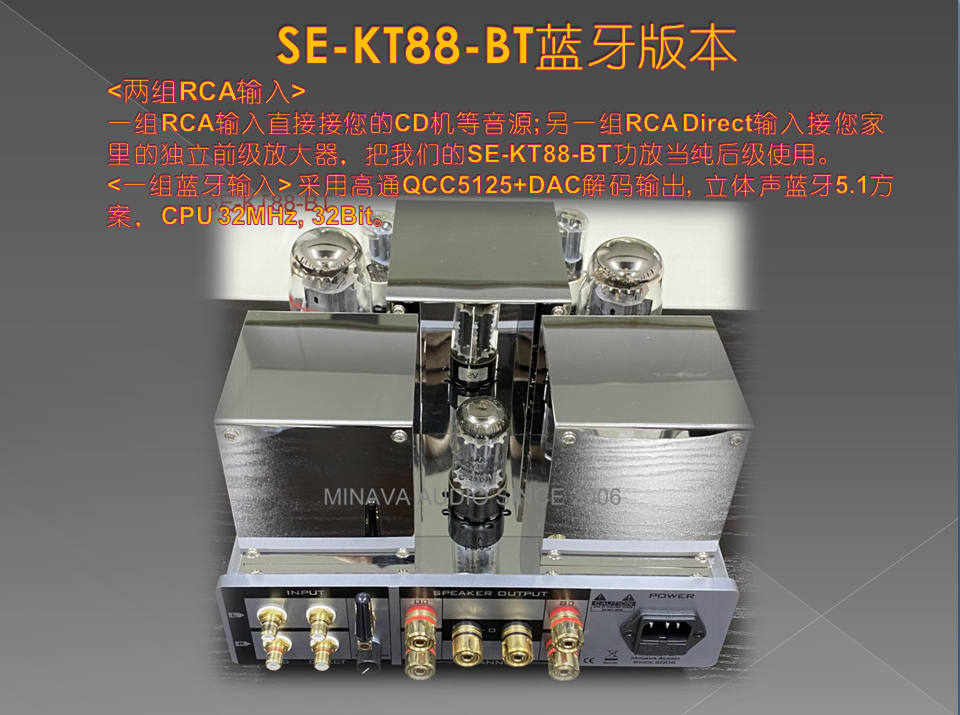

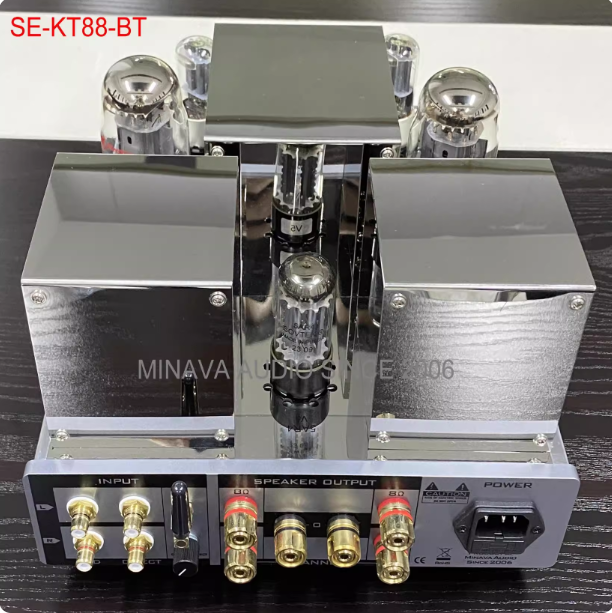

SE-KT88-BT Bluetooth version

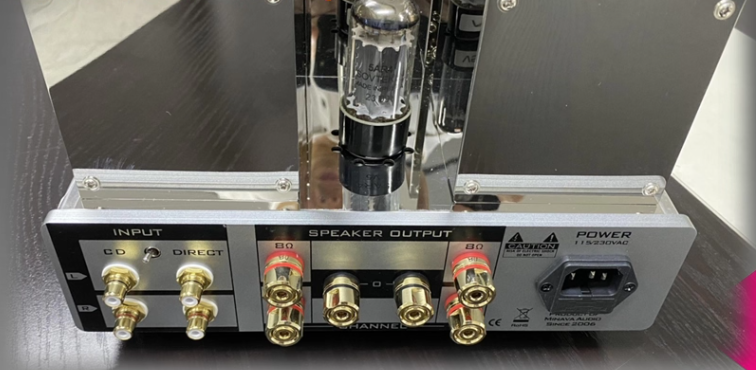

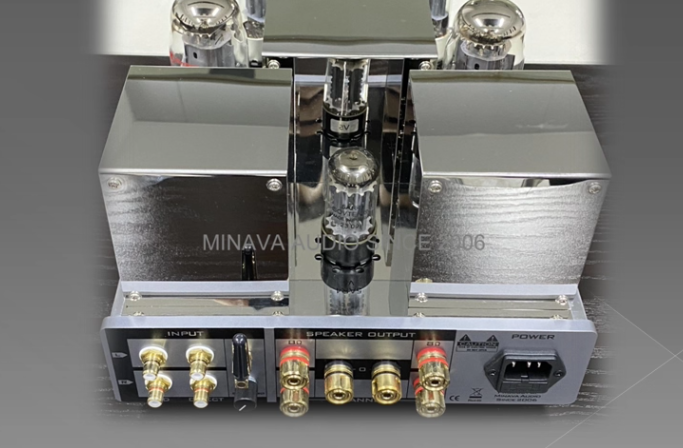

Two sets of RCA inputs
>A set of RCA inputs directly connected to your CD player or other audio sources; Connect another set of RCA Direct inputs to your independent preamplifier at home, and use our SE-KT88-BT amplifier as a pure preamplifier.
using Qualcomm QCC5125+DAC decoding output, stereo Bluetooth 5.1 solution, CPU32MHz,32Bit。 MINAVA

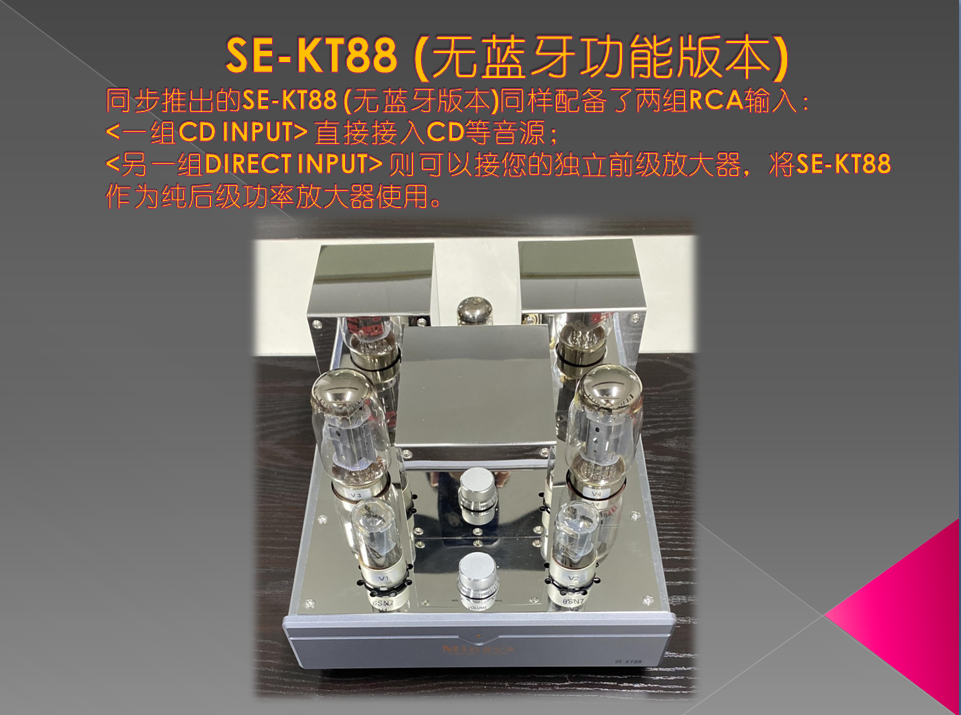

(Bluetooth free version) SE-KT88
The SE-KT88 (Bluetooth free version) launched synchronously is also equipped with two sets of RCA inputs:
directly connected to CD and other audio sources;
can be connected to your independent preamplifier, using SE-KT88 as a pure post amplifier.

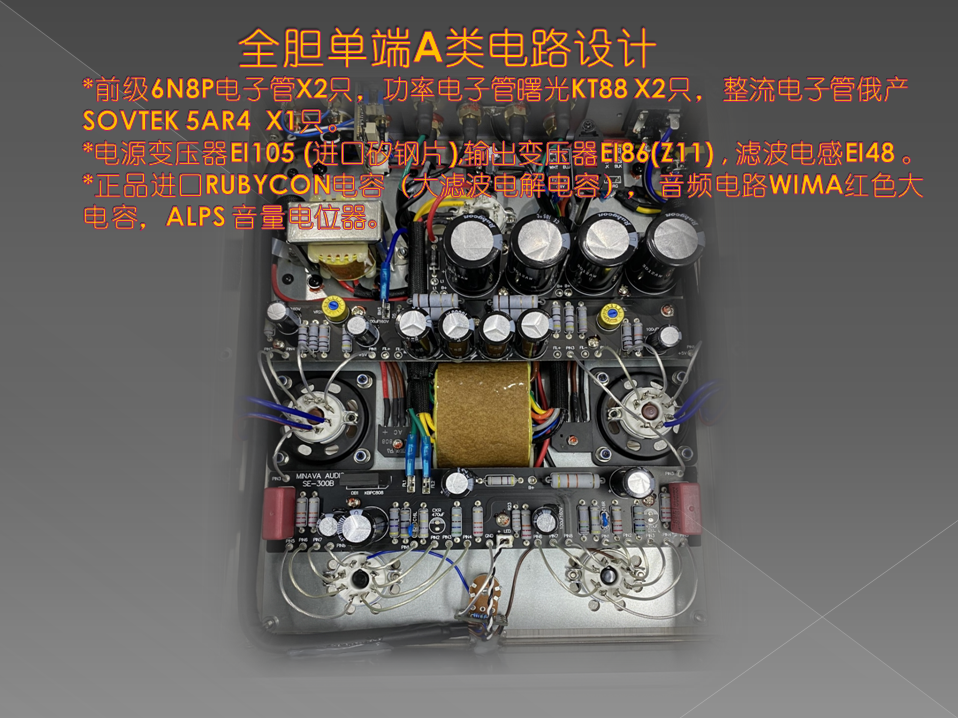

Design of Full Gallbladder Single Terminal Class A Circuit

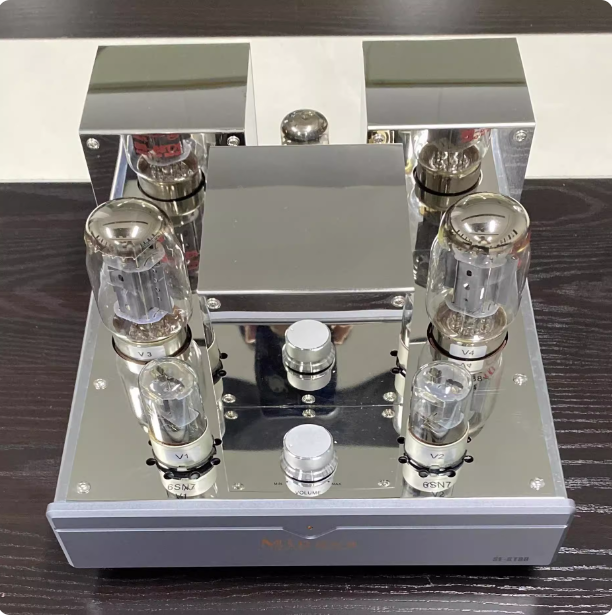

*X2 front stage 6N8P electronic tubes, X2 power electronic tubes Shuguang KT88X2, and rectifier electronic tubes SOVTEK 5AR4 X1 produced in Russia.
*Power transformer E105 (imported sand steel sheet) output transformer E86 (Z211), filter inductor EI48.
Authentic imported RUBYCON capacitors (large filtering electrolytic capacitor, WIMA red large capacitor for audio circuit, ALPS volume potentiometer).
