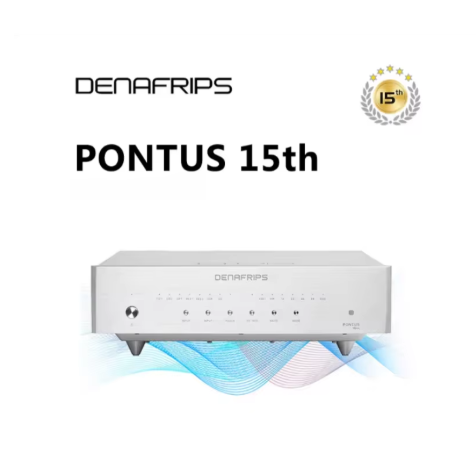

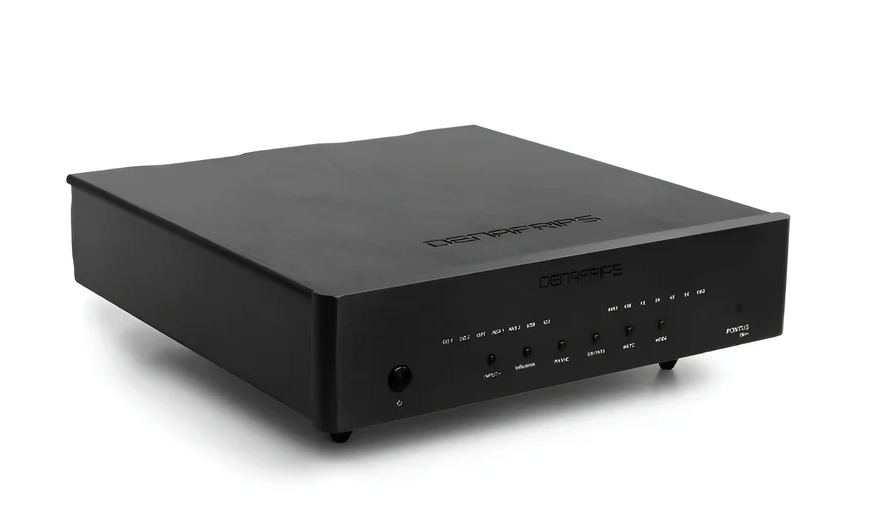

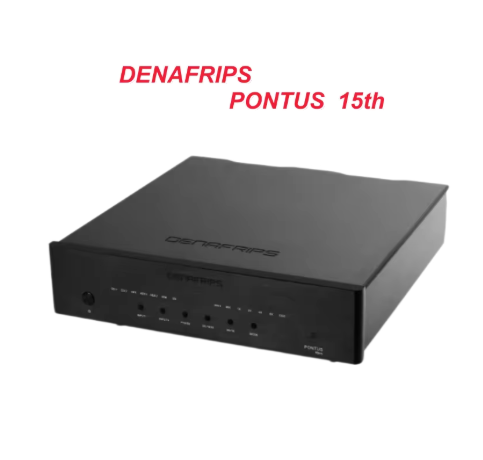

PONTUS 15th R2R DAC FIFO Pure Balanced Decoder DSD I2S PCM AES/EBU OPTICAL COAXIAL BNC LVDS transform an
Functional characteristics
1. Proprietary R2R architecture.
2. Truly fully balanced 26bit R2R+6bit DSD(32-stage FIR filter).
3. Many high-precision resistors are used in R2R line.
4. Specially designed high-precision low-phase noise active crystal oscillator with 45.1548 MHz and 49.152 MHz.
5. Clock buffer of adaptive FIFO.
6. Optimized FPGA digital signal processing algorithm.
7. The sampling rate of USB and I2S input audio sources can support DSD1024 and PCM1536KHz at most.
8. USB audio solution is realized by high-speed ARM MCU.
9. Authorized Thesycon USB driver for Windows platform.

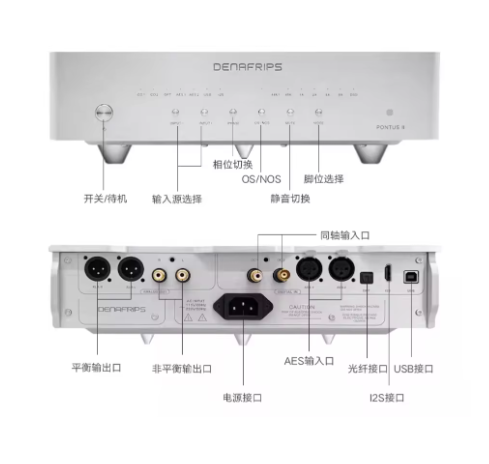

10.7 kinds of digital input audio sources, among which AES can be set to single-dual AES input mode.
$1,800.00
