SHANLING M1 PLUS Hi-res HIFI Portable Music MP3 Player ES9069Q DAC Dual SGM8262 DSD512 Bluetooth 5.2 LDAC WiFi DLNA Airplay

Introducing Shanling M1 Plus

Earlier this year, we released Shanling M5 Ultra. Marking our return to simpler players using MTouch system with a full focus on pure music playback.

Today we are announcing Shanling M1 Plus. A cheaper and smaller sibling to the M5 Ultra.

Utilizing the latest MTouch system on Ingenic X2000 processor, M1 Plus offers our standard rich package of features. Including Bi-directional Bluetooth V5.2, two-way USB Connection, 3.5mm Coaxial SPDIF Out, Wi-Fi connectivity for DLNA/Airplay and smooth local playback with expandability of MicroSD cards.

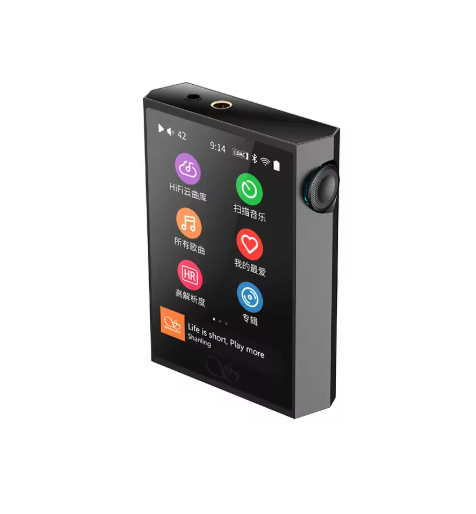

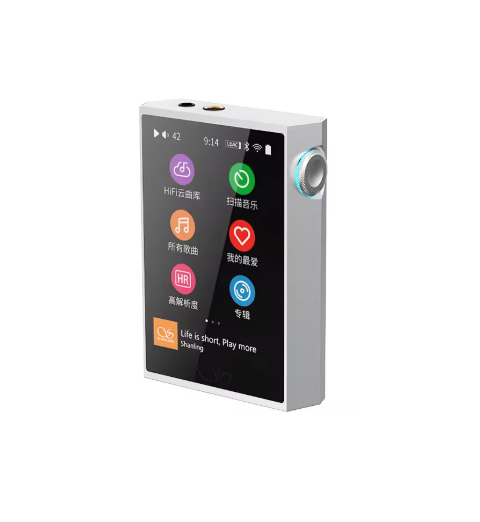

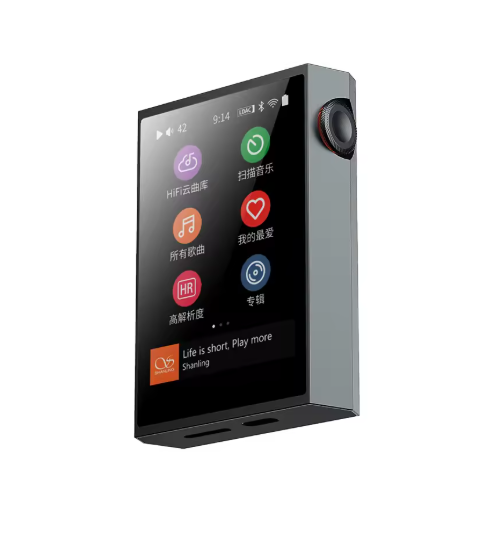

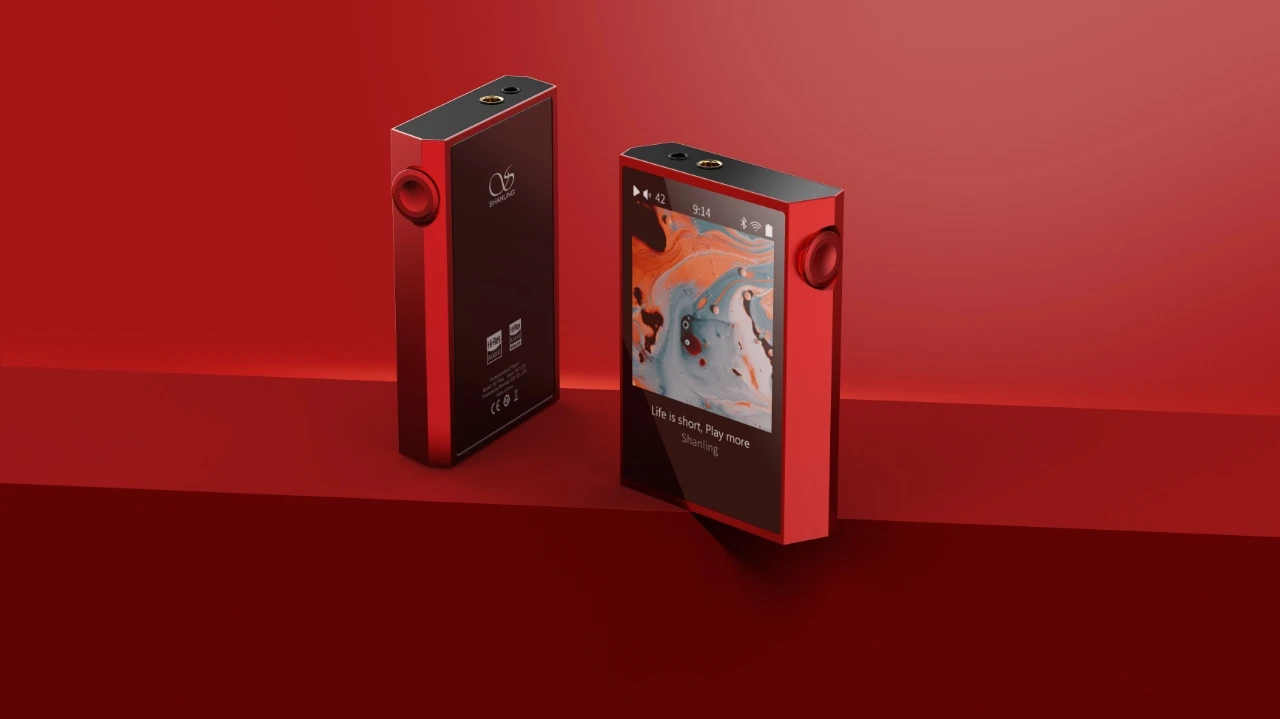

Sandwiched into a compact body made of aluminium and glass, adapting the bolder modern design revealed with M5 Ultra and measuring just 86 x 61 x 17mm at only 116 grams. With 3.2-inch screen for ideal balance between touch screen controls and compact size for daily use.

Audio circuit based around ESS ES9069Q DAC for dynamic and detailed sound, accompanied by a pair of SGM8262 amplifiers which provide up to 660 mW @ 32 Ohm output power to decently power even full-size audiophile headphones. With 4.4mm balanced and standard 3.5mm for easy matching with all the earphones and headphones on the market.

Specification:

Dimensions: 86 x 61 x 17 mm

Weight: 116 g

DAC: ESS ES9069Q

Amplifier: Dual SGM8262

Platform: Ingenic X2000

System: MTouch developed by Shanling

Screen: 3.2-inch 320 x 480 Touchscreen

Memory: MicroSD card slot

Hi-Res Support: PCM 32 bit / 768 kHz & DSD512

Wi-Fi: 2.4/5G, supporting DLNA, Airplay and OTA Updates

Bluetooth: Upgraded 5.2 with Bi-Directional support of LDAC, aptX HD, aptX, AAC

Companion app: Eddict Player app through SyncLink

Connectors: 3.5mm Single-Ended, 4.4mm Balanced, USB-C

Battery: 2100 mAh

Battery life: Up to 12.5 hours

Single-Ended Output:

Power: 195 mW @ 32 Ohm

THD+N: 0.0007%

Channel Separation: 74 dB

SNR: 122 dB

Output impedance: 0.6 Ohm

Balanced Output:

Power: 660 mW @ 32 Ohm

THD+N: 0.0007%

Channel Separation: 100 dB

SNR: 122 dB

Output impedance: 1.2 Ohm
