SMSL RAW-MDA1 Dual ES9039Q2M Decoder support MQA MQA-CD LDAC Bluetooth 5.1 Hi-res DAC with Remote Control SMSL MDA1

Bluetooth 5.1 Connectivity

Enjoy seamless wireless audio streaming with Bluetooth 5.1, ensuring stable connections and high-fidelity sound.

Metal Construction

Crafted with durability in mind, this Desktop DAC features a robust metal build for long-lasting performance.

Remote Control Included

Convenience at your fingertips with the included remote control, allowing easy adjustment of settings without reaching for your device.

High-Resolution Audio Support

Experience unparalleled sound quality with the SMSL RAW-MDA1 Dual ES9039Q2M Decoder, supporting MQA MQA-CD LDAC Bluetooth 5.1 Hi-res DAC.

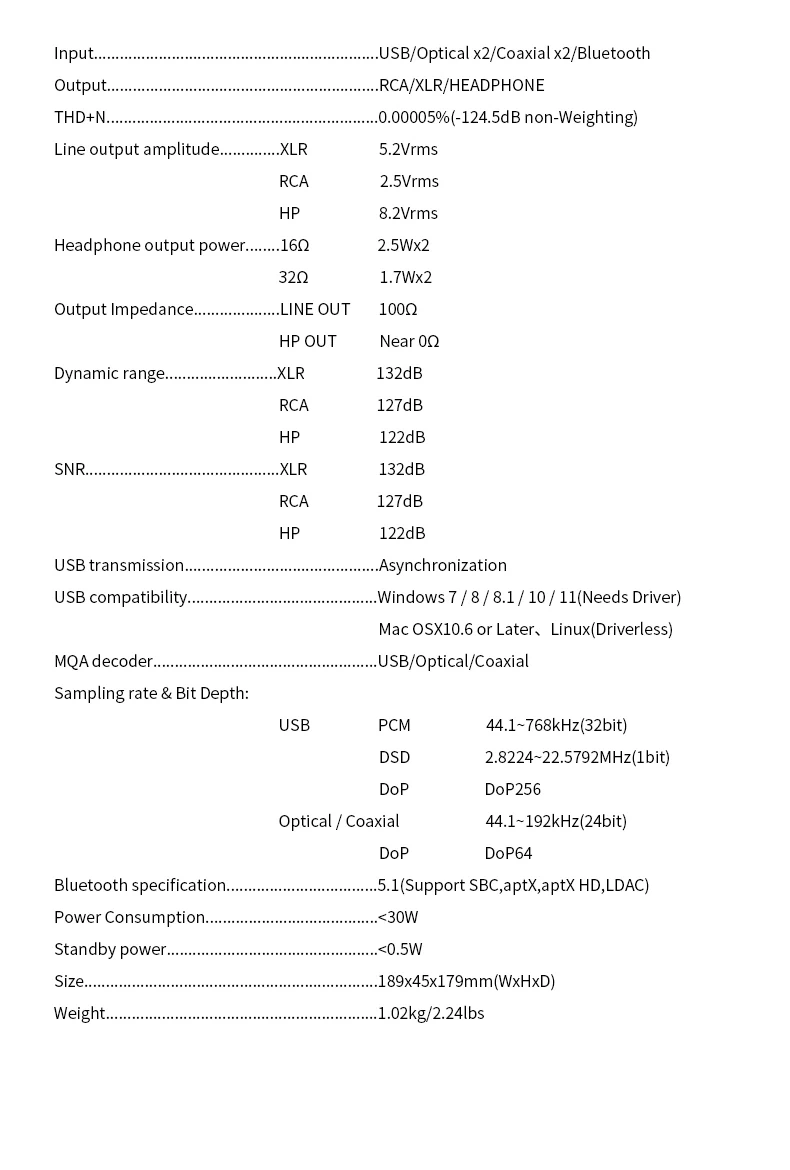

Specifications
Input USB/Optical x2/Coaxialx2/Bluetooth
Output RCA/XLR/HEADPHONE
THD+N 0.00005%(-124.5dB non-Weighting)
Line output amplitude XLR—5.2Vrms、RCA—2.5Vrms、HP—8.2Vrms
Headphone output power 16Ω—2.5Wx2、32Ω—1.7Wx2
Output lmpedance LINE OUT—100Ω、HP OUT—Near 0Ω
Dynamic range XLR—132dB、RCA—127dB、HP—122dB
SNR XLR—132dB、RCA—127dB、HP—122dB
USB transmission Asynchronization
USB compatibility Windows7/8/8.1/10/11(Needs Driver)、Mac OSX10.6 or Later、 Linux(Driverless)
MQA decoder USB/0ptical/Coaxial
Sampling rate & Bit Depth USB：PCM 44.1~768kHz(32bit)、DSD 2.8224~22.5792MHz(1bit)、DoP DoP256
Sampling rate & Bit Depth Optical /Coaxial：44.1~192kHz(24bit)、DoP DoP64
Bluetooth specification 5.1(Support SBC,aptX,aptX HD,LDAC)
Power Consumption <30W
Standby power ＜0.5W
