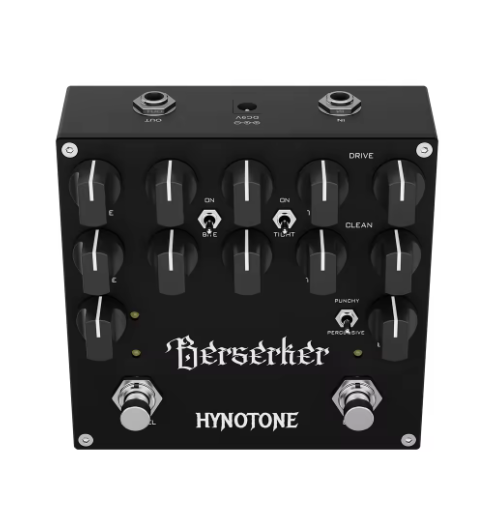

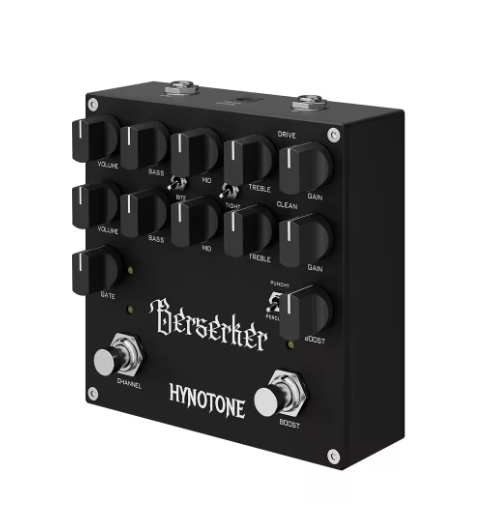

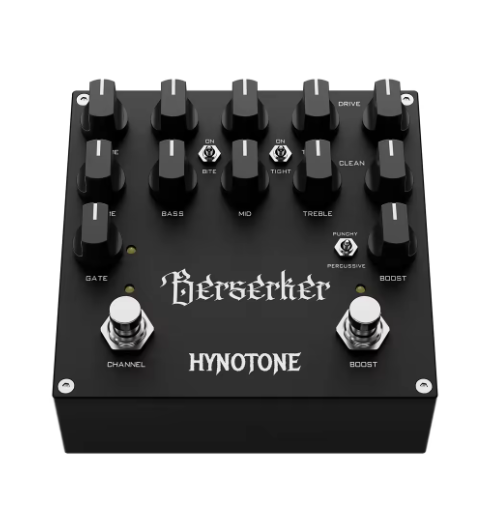

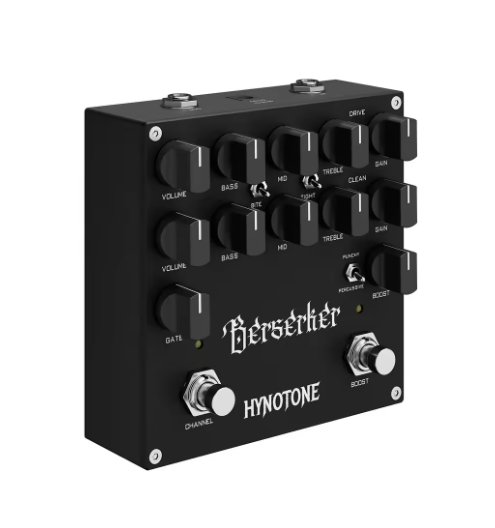

TOPPING Berserker Dual-Channel Preamp Pedal each with its own Gain, Volume, and 3-band EQ (Bass, Mid, Treble)
Description
Detailed information about the Berserker dual channel preamplifier, including its functional features, design principles, tone modes, control panel design, and parameters. The key points include:
1. Function Overview: This is a front-end effects device equipped with clear and distortion dual channels, which can cover various tones from traditional metal to avant-garde metal. A single module can replace the main tone function of the complete box head.
2. Dual channel tone adjustment: Equipped with two independent switchable front-end circuits, each channel has independent gain and volume control, as well as three-stage equalization adjustment. Two preset tones can be freely set and seamlessly switched, using a full JFET circuit design to achieve a tone similar to that of a real electronic tube box head.
3. Excitation circuit design: Based on JFET design, it has unique distortion characteristics similar to electronic tubes, providing smooth and natural sound, excellent dynamic response, and can work perfectly with noise gates.

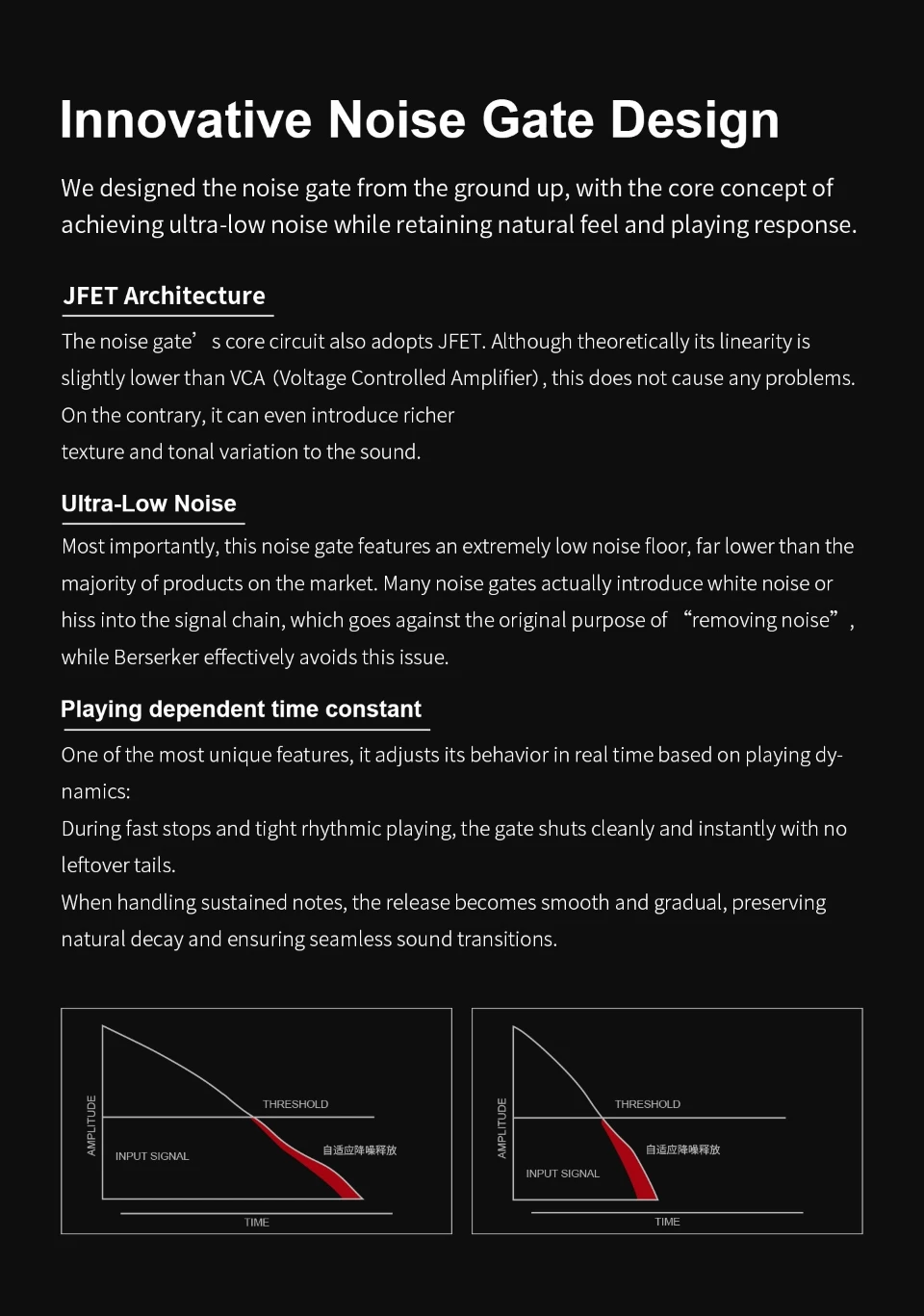

4. Innovative adaptive noise gate: Adopting JFET architecture, it has extremely low background noise and can dynamically adjust its working state in real time according to playing, achieving different noise reduction effects in different playing situations.
5. Two tone modes: PUNCHY mode tightens low frequencies and highlights mid frequencies, making the sound impactful and full; The PERCUSSIVE mode tightens the sound, with a mid frequency matte and rhythmic high frequency, making it more aggressive.

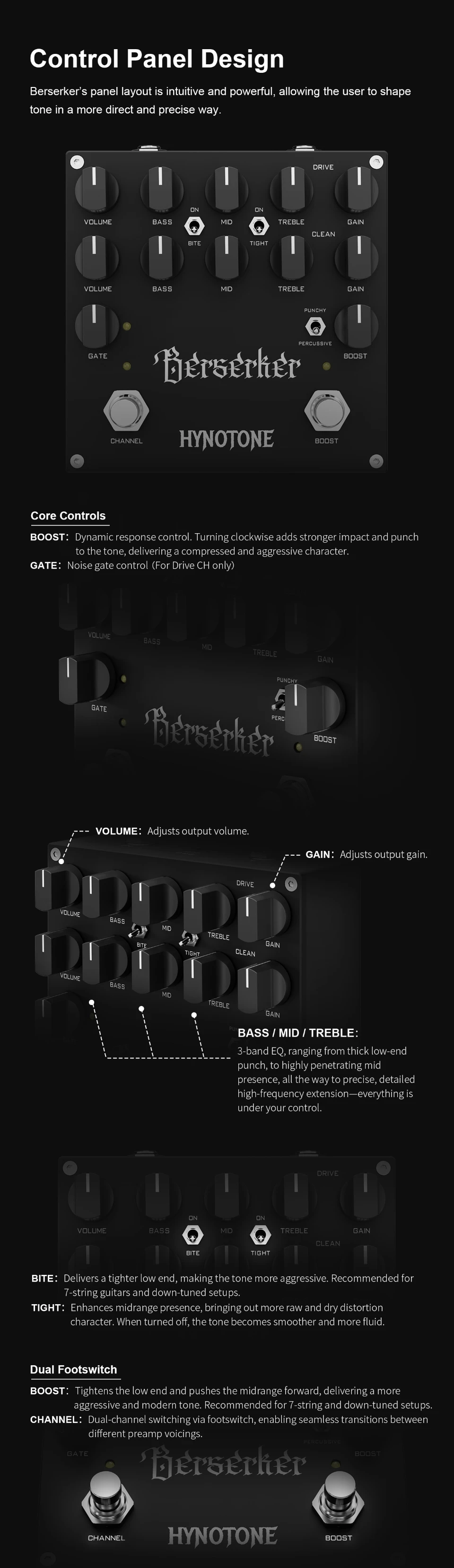

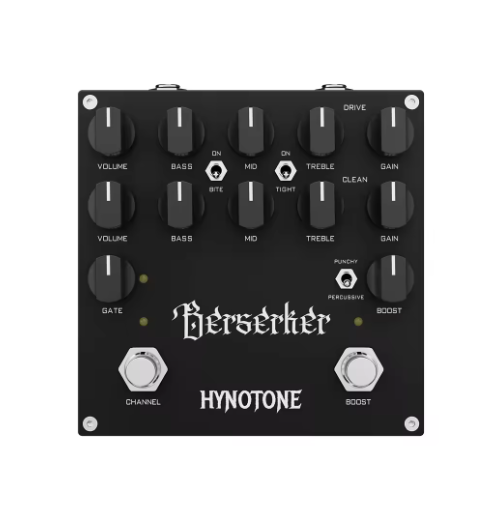

6. Control panel design: The panel design is intuitive and powerful, with core adjustment functions such as BOOST, GATE, VOLUME, etc., as well as dual foot switches that can achieve different functions and dual channel switching.

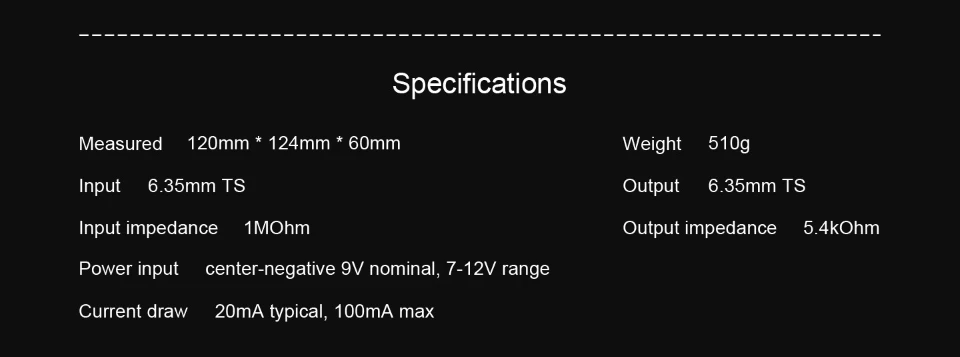

7. Parameter information: The model is Berserker, with dimensions of 120mm, 124mm, 60mm, a weight of 510g, an input impedance of 1MOhm, an output impedance of 5.4kOhm, an input power supply of DC9V (negative inside and positive outside), a typical current consumption of 20mA, and a maximum current consumption of 100mA.
